IMOU VDP7 5MP Video Door Phone with 7" Touch Screen (PoE / Wi-Fi) | VO1-5M0A/VH1-7A0A

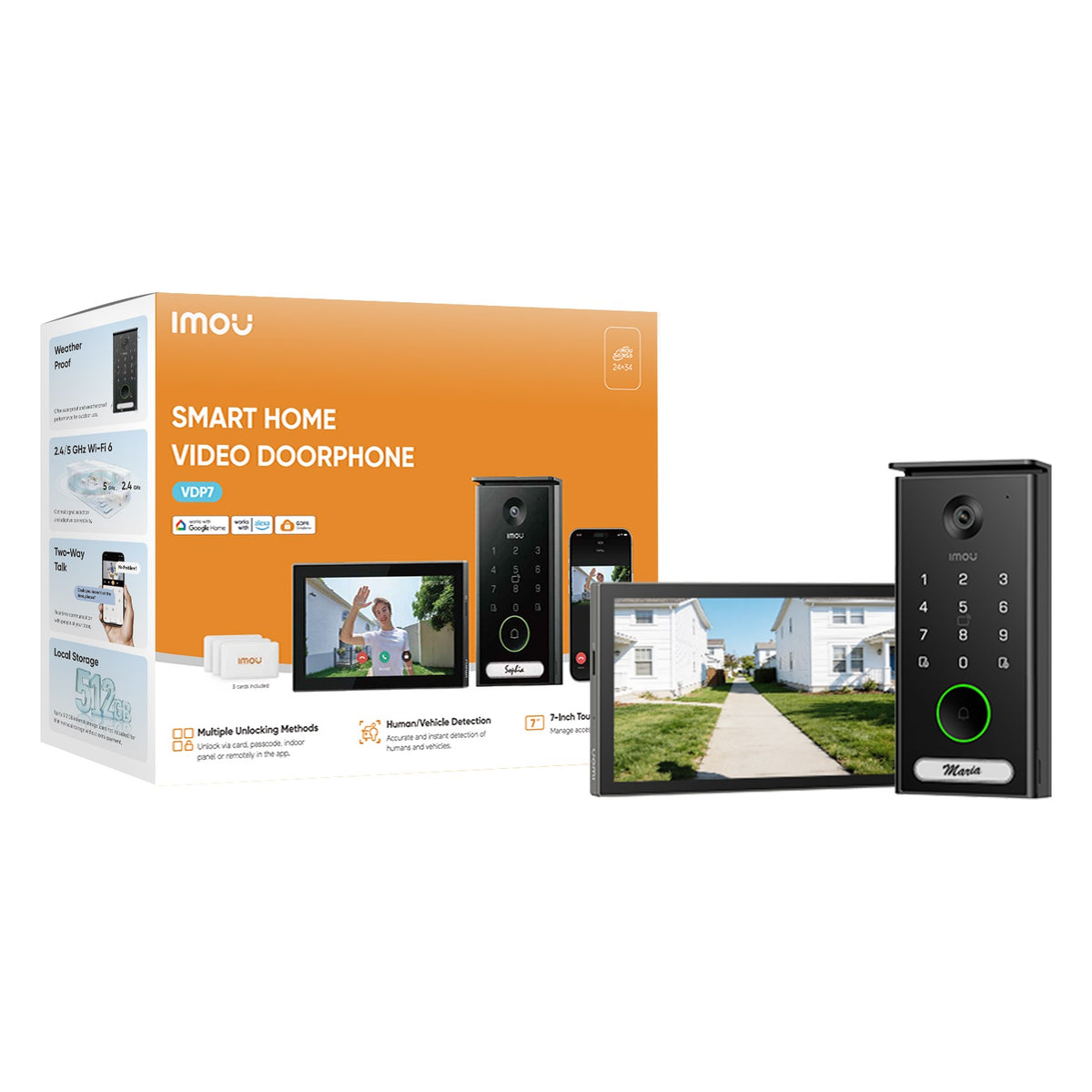

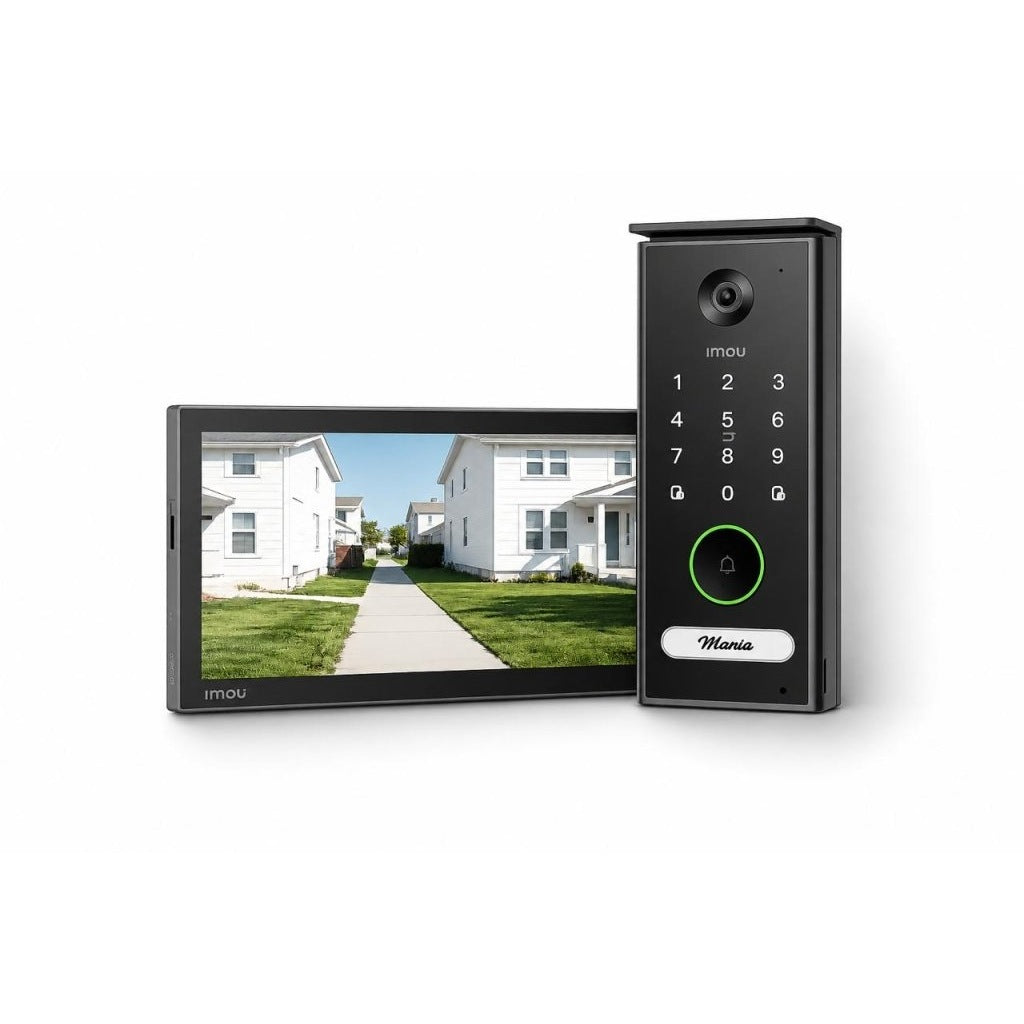

The IMOU VDP7 is a smart video door phone kit made of a 5MP outdoor door station (VTO) and a 7-inch touch-screen indoor monitor (VTH). You can see and talk to visitors, open the door from the indoor screen or from the Imou Life app, and control two entrances, for example the front door and the garage.
It comes in two versions: PoE (VO1-5M0A/VH1-7A0A), where the door station and monitor are connected and powered over network cable from a PoE switch, and Wi-Fi (2-Wire) (VO1-5M0R/VH1-7A0S), where the door station connects to the monitor over two wires and the monitor joins your router over dual-band Wi-Fi 6.
Color: Black
Choose PoE or 2-Wire Installation: The PoE version uses standard network cable from a PoE switch to both the door station and the monitor, so one cable carries power and data. The Wi-Fi (2-Wire) version is designed to replace an older door phone over existing two-wire cabling; power and signal travel over the two wires and the monitor runs from the included DC 24V 1.5A adapter.
Control Two Entrances: The door station has two lock-control channels and two exit-button inputs, so you can open two doors or gates (such as the main door and the garage) from the indoor screen or from your phone.
4 Unlocking Methods: Family members can open the door with an access card at the door station, a password on its touch keypad, a tap on the indoor screen, or remotely in the Imou Life app.
5MP Camera with Wide View: The door station camera records 5MP (2880×1620) video through a 2.3 mm lens with a 125° horizontal and 149° diagonal field of view, so you see the whole entrance area clearly.
Infrared Night Vision: At night the camera switches to infrared mode and shows the entrance up to 15 m away.
Human, Vehicle & Loitering Detection: Alerts focus on people and vehicles at your entrance, and loitering detection tells you when someone stays at the door. A tamper alarm is built into the door station.
4 Privacy Zones: You can mask up to four areas of the image, such as a neighbour's door or window, so they stay hidden in live view and recordings.
Local Storage up to 512GB: Insert a microSD card of up to 512GB in the indoor monitor to keep recordings and snapshots locally.
Who it's for / Works with: Houses and villas that want a video door phone with keyless entry for the main door and a second entrance. Works with the Imou Life app (iOS and Android), Google Assistant and Amazon Alexa.
Good to know: The PoE version needs a PoE switch (not included) and has no power adapter in the box. The Wi-Fi (2-Wire) version includes the power adapter; IMOU lists the supported two-wire cable length by wire size in its user manual, so check your existing cabling before installing. The door locks or gate openers themselves are not included, and the microSD card is sold separately.
What's in the Box
◆ 1× Door station (VTO) with pre-installed wall mounting bracket
◆ 1× Indoor monitor (VTH)
◆ 1× Wall mounting bracket for monitor
◆ 2× Drilling templates (door station and monitor)
◆ 1× Power adapter (Wi-Fi / 2-Wire version only)
◆ 2× Screw packs
◆ 1× Wires and connectors pack
◆ 1× Female wire harness
◆ 1× L-shaped wrench
◆ 2× Name tags
◆ 3× Cards
◆ 1× Quick start card
◆ 1× Regulatory information
Technical Specifications
| Specification | VDP7 PoE (VO1-5M0A/VH1-7A0A) | VDP7 Wi-Fi / 2-Wire (VO1-5M0R/VH1-7A0S) |
|---|---|---|
| Kit | Door station (VTO) + 7" indoor monitor (VTH) | Door station (VTO) + 7" indoor monitor (VTH) |
| Connection | PoE network cable to both units | 2-wire between door station and monitor |
| Power | PoE (PoE switch, not included) | DC 24V 1.5A adapter (included) |
| Wi-Fi | — | Wi-Fi 6, 2.4 GHz & 5 GHz (IEEE 802.11b/g/n/ax) |
| Image sensor | 1/3" progressive CMOS | 1/3" progressive CMOS |
| Resolution | 5MP (2880×1620) | 5MP (2880×1620) |
| Lens | 2.3 mm | 2.3 mm |
| Field of view | 125° (H), 71° (V), 149° (D) | 125° (H), 71° (V), 149° (D) |
| Night vision | Infrared, up to 15 m | Infrared, up to 15 m |
| Video | H.265 / H.264, up to 15 fps | H.265 / H.264, up to 15 fps |
| Audio | Two-way audio | Two-way audio |
| Indoor screen | 7" touch screen, 1024×600 | 7" touch screen, 1024×600 |
| Unlock methods | Card, password, indoor monitor, Imou Life app | Card, password, indoor monitor, Imou Life app |
| Lock control / exit button | 2 channels / 2 channels | 2 channels / 2 channels |
| Doorbell button | 1 | 1 |
| Tamper alarm | Yes | Yes |
| Smart detection | Human, vehicle, loitering | Human, vehicle, loitering |
| Privacy / DND | 4 privacy zones; Do Not Disturb mode | 4 privacy zones; Do Not Disturb mode |
| Storage | microSD up to 512GB | microSD up to 512GB |
| Operating temperature | Door station: -20°C to +50°C | Door station: -20°C to +50°C |
| Dimensions | VTO 181 × 83.5 × 29 mm; VTH 184 × 113 × 23.5 mm | VTO 181 × 83.5 × 29 mm; VTH 184 × 113 × 23.5 mm |
| Weight | VTO 474 g; VTH 360 g | VTO 474 g; VTH 360 g |
| App / voice | Imou Life (iOS, Android); Google Assistant, Alexa | Imou Life (iOS, Android); Google Assistant, Alexa |
📄 Datasheet: Download the official IMOU VDP7 (2-Wire) datasheet (PDF)
📄 User manual: Download the official IMOU VDP7 2-Wire user manual (PDF)
