MERCUSYS MW306R V1.20 N300 300Mbps Wireless N Multi-Mode Router
Product Description
Stay connected with the MERCUSYS MW306R, a reliable 300Mbps Wireless N Router designed for everyday home networking. With three high-gain 5dBi external antennas, the MW306R provides broader Wi-Fi coverage and stable wireless connectivity for smartphones, laptops, smart TVs and other connected devices.
The MW306R supports four operating modes — Router, Access Point, Range Extender and WISP — giving you the flexibility to use the device for different networking scenarios.
It also features Parental Controls, Guest Network, QoS, Wi-Fi Scheduling, IPTV support and IPv6, while the MERCUSYS App makes setup and network management simple from your smartphone.
Key Features
📶 300Mbps Wireless N — Up to 300Mbps wireless speed on the 2.4GHz band
📡 3 × 5dBi External Antennas — Designed for broader Wi-Fi coverage
🔄 4 Operating Modes — Router, Access Point, Range Extender and WISP
🎮 Stable Everyday Wi-Fi — Suitable for HD streaming, online gaming and file downloads
👨👩👧 Parental Controls — Set online time limits and block inappropriate websites
👥 Guest Network — Provide separate Wi-Fi access for guests
⚡ QoS — Prioritize selected devices for better network performance
📺 IPTV Support — Supports IGMP Proxy, IGMP Snooping, Bridge and Tag VLAN
🌐 IPv6 Support — Compatible with IPv6 services from supported ISPs
📱 MERCUSYS App — Easy setup and network management from iOS and Android devices
🌙 Wi-Fi Schedule & LED Control — Schedule Wi-Fi operation and turn off LEDs during selected hours
🔐 WPA/WPA2 Security — Wireless encryption to help protect your network
Technical Specifications
Model: MW306R V1.20
Wi-Fi Class: N300
Wireless Speed: Up to 300Mbps
Frequency: 2.4GHz
Wireless Standards: IEEE 802.11b/g/n
Antennas: 3 × External 5dBi Antennas

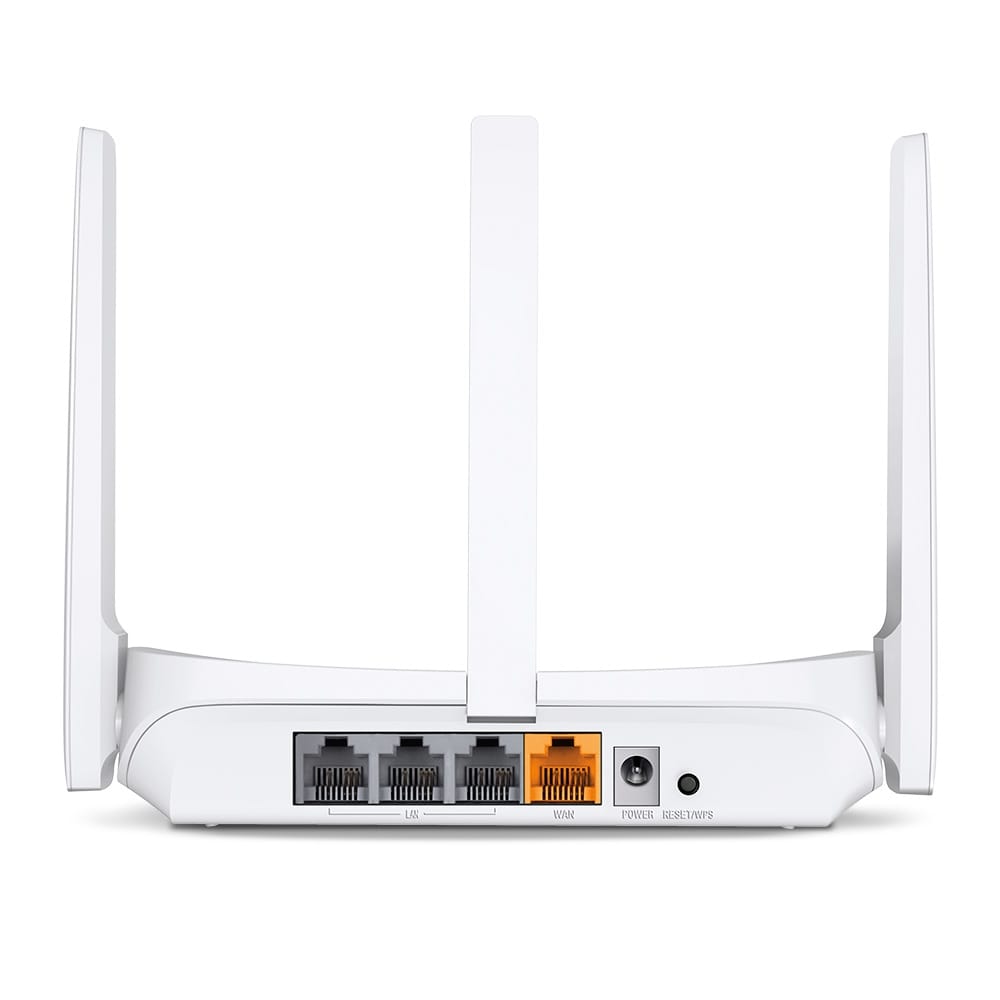

WAN Port: 1 × 10/100Mbps
LAN Ports: 3 × 10/100Mbps
Operating Modes: Router / Access Point / Range Extender / WISP
WAN Types: Dynamic IP / Static IP / PPPoE / PPTP / L2TP
Wireless Security: WPA/WPA2
Guest Network: 2.4GHz Guest Network
Parental Controls: Profile Settings / Time Control / Internet Pause / Website Filtering
QoS: Time Settings / Priority Control
NAT Forwarding: Port Forwarding / Port Triggering / DMZ / UPnP
IPv6: Supported
IPTV: IGMP Proxy / IGMP Snooping / Bridge / Custom / Tag VLAN
DDNS: NO-IP / DynDNS
Firewall: SPI Firewall
Management: MERCUSYS App / Web Interface
Dimensions: 168.9 × 115.4 × 34.7mm
Power Supply: 100–240V, 50/60Hz input; 5V/0.6A output
Installation: Desktop / Wall Mount
Product Weight: 150g
Operating Temperature: 0°C–40°C
Operating Humidity: 10%–90% non-condensing
Package Contents
MERCUSYS MW306R N300 Wi-Fi Router
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
