Sonoff Orb 4-in-1 Zigbee Smart Scene Button | SNZB-01M
The SONOFF Orb 4-In-1 (SNZB-01M) is a battery-powered scene button with four keys. Each key supports single, double, triple and long press, giving up to 16 actions to start scenes such as Movie Night, Sleep or Away mode, or to control lights and other devices.

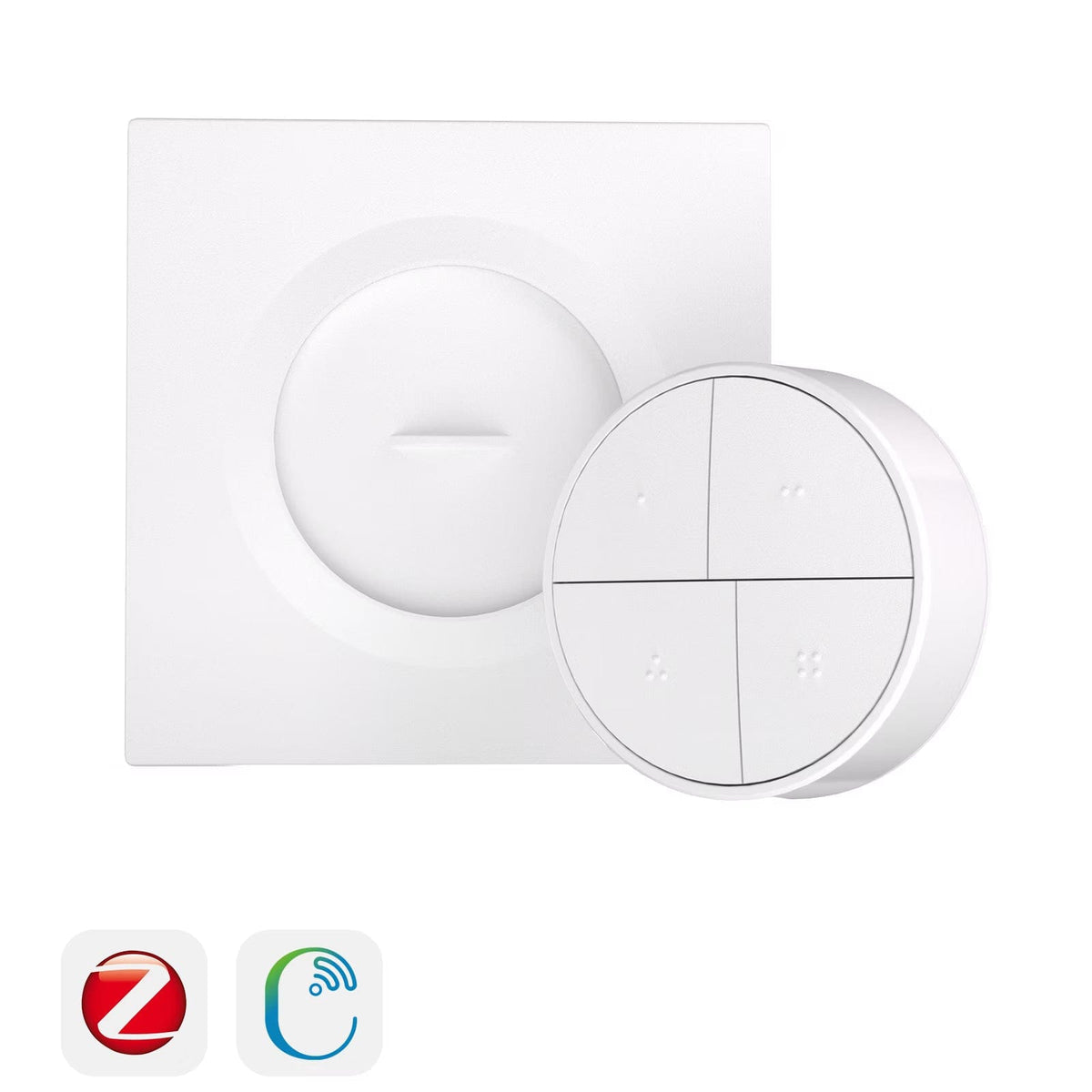

The round button sits magnetically on a square base, so it can stay on the wall like a switch or be taken off and used as a remote — no wiring needed.
Color: White
16 Actions from 4 Buttons: With four press types on each of the four buttons, one Orb can control several rooms or devices and trigger up to 16 different smart scenes.

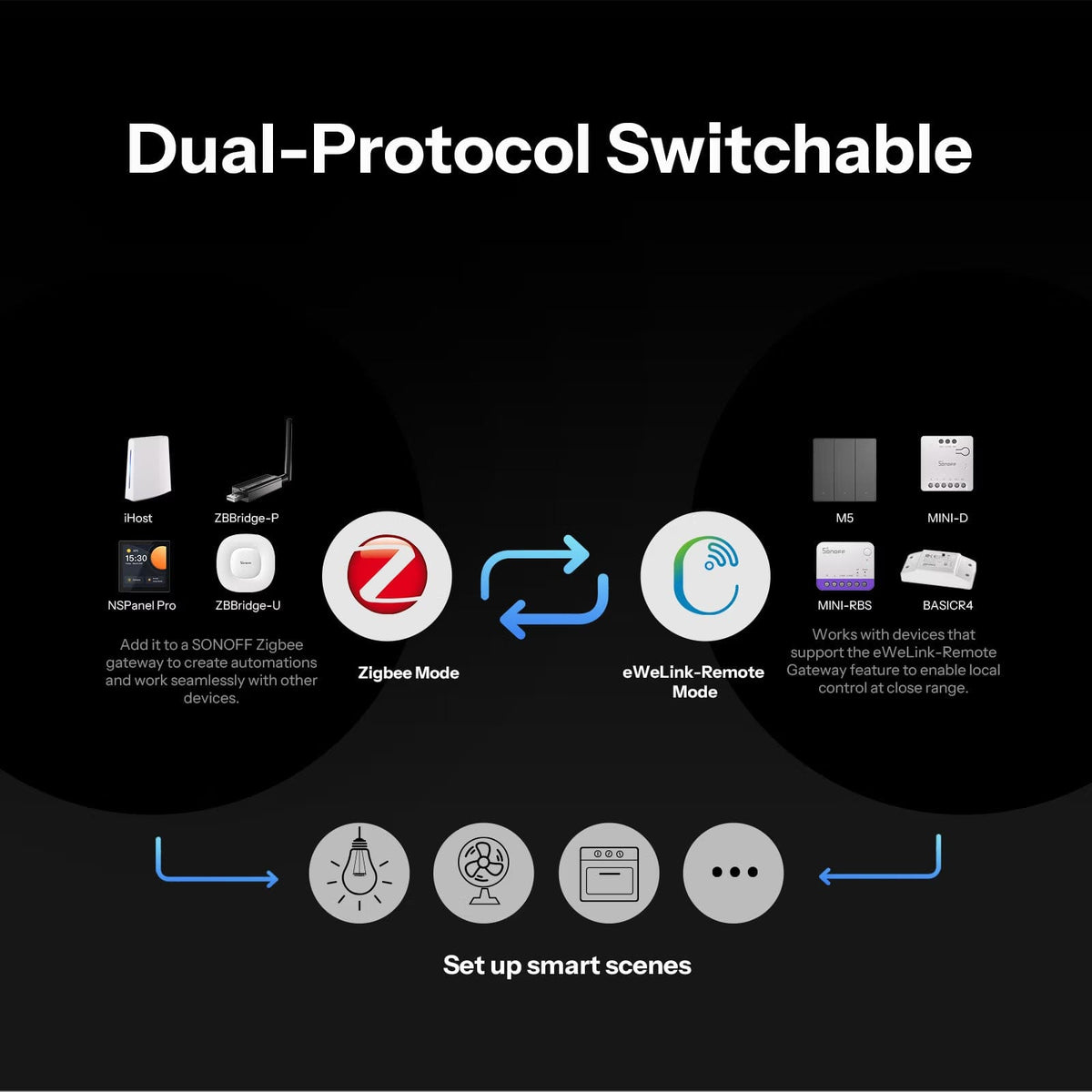

Zigbee or eWeLink-Remote Mode: The button can work in Zigbee mode with a Zigbee gateway for automations, or be switched to eWeLink-Remote mode to control SONOFF devices that support the eWeLink-Remote gateway feature locally.
TouchLink & Bindings: TouchLink pairs the button directly with compatible smart bulbs, and Zigbee bindings (for example in Home Assistant) allow direct device-to-device control for fast, local responses. TouchLink support depends on the bulb brand and model.
Wire-Free Installation: Mount it with magnets, adhesive or screws on a wall, a metal surface or a desk. It runs on a CR2477 coin cell battery.
Who it's for / Works with: Anyone who wants a simple physical control for scenes, lights or curtains. SONOFF lists these Zigbee hubs: SONOFF ZBBridge-P, ZBBridge-U, NSPanel Pro and iHost (eWeLink app); Home Assistant via ZHA or Zigbee2MQTT with a SONOFF ZBDongle-P/-E; and Samsung SmartThings Hub V3 / Aeotec V3.
Good to know: A Zigbee gateway or an eWeLink-Remote gateway is required. Using it with ZHA currently needs a script from SONOFF's help center.
Technical Specifications
| Specification | SNZB-01M |
|---|---|
| Product name | Orb 4-In-1 (Fusion series) |
| Product type | Zigbee & eWeLink-Remote smart scene button |
| Model | SNZB-01M |
| MCU | TLSR8656F512ET32 |
| Wireless | Zigbee (IEEE 802.15.4) |
| Input | 3V |
| Battery | CR2477 |
| Buttons / actions | 4 buttons; single, double, triple and long press (up to 16 actions) |
| Net weight | 53 g (with battery) |
| Dimensions | Ø50 × 22.5 mm |
| Casing material | PC |
| Working temperature | -10°C to 60°C |
| Working humidity | 5–95% RH |
| Certifications | CE, FCC, RoHS |
📄 User manual: Download the official SONOFF SNZB-01M user manual (PDF)
