Sonoff SwitchMan ZBM5 Zigbee Smart Wall Switch (80 Type) | ZBM5-1C-80W
The SONOFF SwitchMan ZBM5 is a Zigbee 3.0 smart wall switch that replaces a standard wall switch and adds app control, schedules, smart scenes and voice control through a Zigbee hub. This is the 80-type version (86 × 71 × 40.3 mm) for 80-type wall boxes, available as a 1-gang (ZBM5-1C-80W) or 3-gang (ZBM5-3C-80W) switch.
Color: White

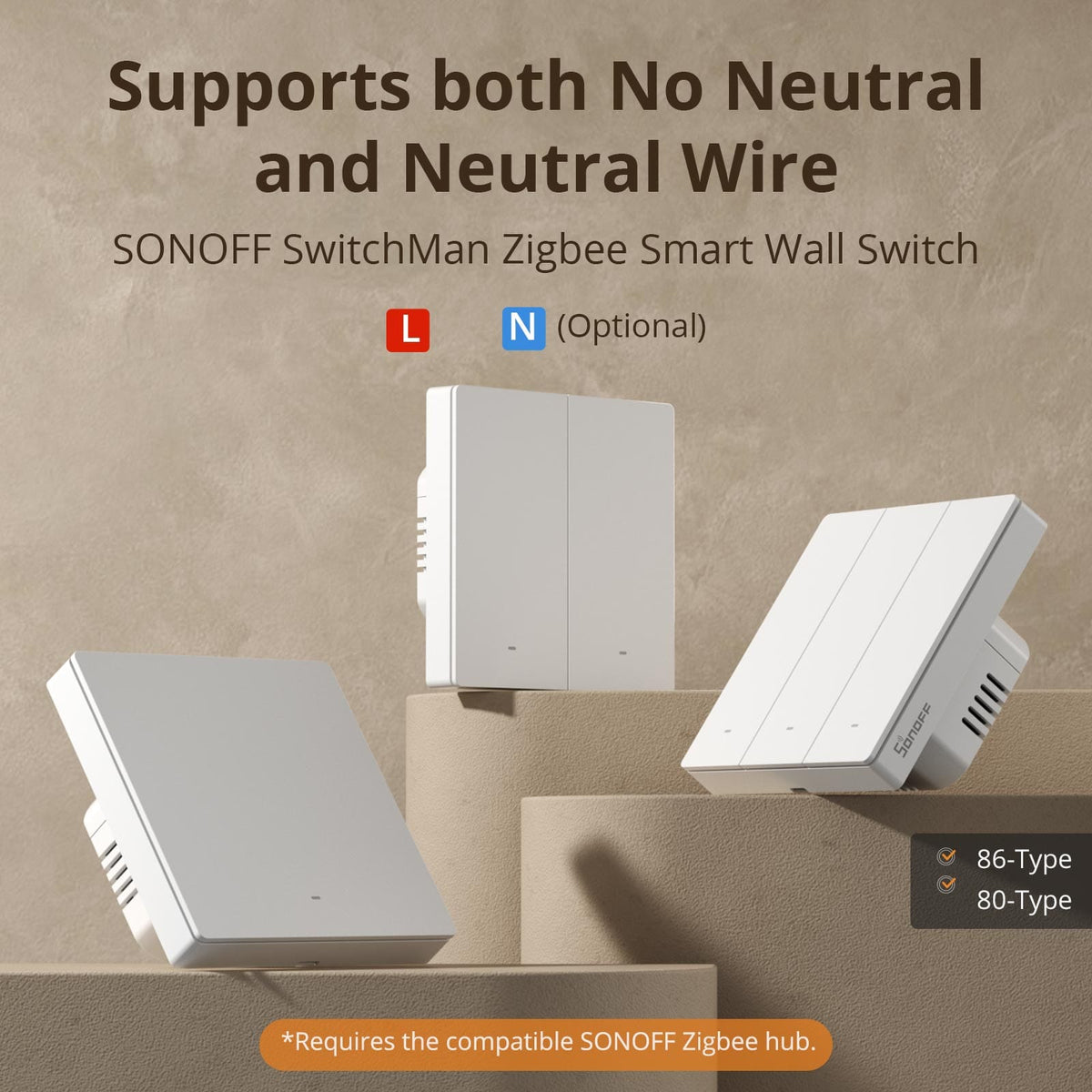

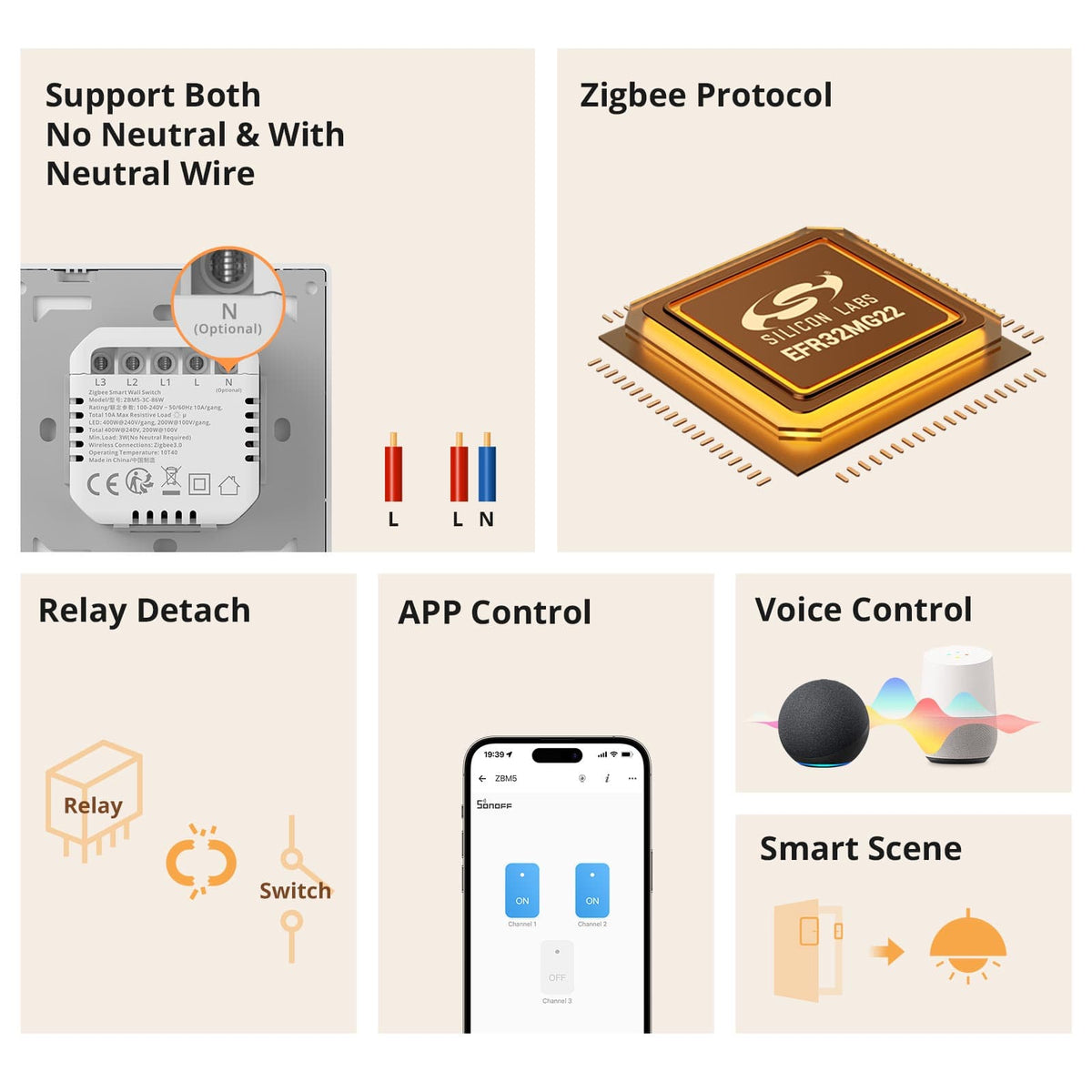

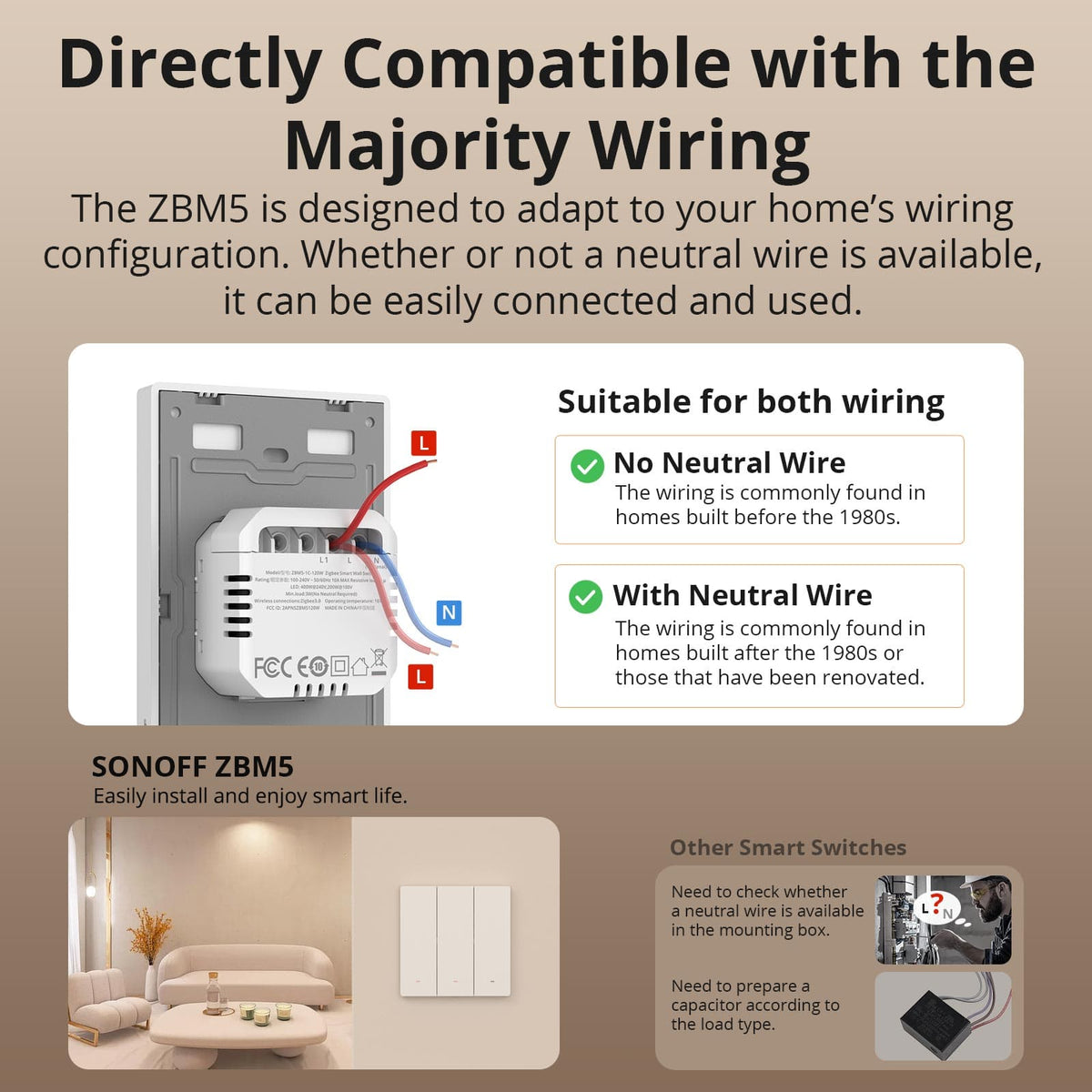

Neutral or No Neutral Wiring: The ZBM5 can be installed whether or not your switch box has a neutral wire, which makes it suitable for older homes as well as newer installations. Without a neutral wire the minimum load is 3W.
App Control & Schedules: Check the switch status and turn your lights on or off from the eWeLink app from anywhere, and set timers or schedules so lights switch off automatically.
Detach Relay & Smart Scenes: In Detach Relay mode the physical button no longer cuts the power, so smart bulbs stay online and the button can trigger smart scenes instead. SONOFF notes smart lights are supported only when the switch is wired with a neutral.
Voice Control: After the switch is added to a SONOFF Zigbee hub in the eWeLink app, it can be controlled by voice through Amazon Alexa or Google Assistant.
Who it's for / Works with: Anyone with 80-type wall boxes who wants smart lighting without changing the wiring. It needs a Zigbee 3.0 hub such as SONOFF NSPanel Pro, iHost or ZBBridge-P / ZBBridge-U, or Home Assistant (ZHA or Zigbee2MQTT) with a SONOFF Zigbee dongle.
Good to know: A Zigbee hub is required — the switch does not connect over Wi-Fi on its own. 80-type and 86-type wall boxes need different switch sizes; this listing is the 80-type version, so check your wall box before ordering.
Technical Specifications
| Specification | 1 Gang (ZBM5-1C-80W) | 3 Gang (ZBM5-3C-80W) |
|---|---|---|
| Wall box type | 80 type | 80 type |
| Number of gangs | 1 | 3 |
| Rating | 100-240V~ 50/60Hz, 10A max resistive load | 100-240V~ 50/60Hz, 10A per gang, 10A total max resistive load |
| LED load | 400W @240V, 200W @100V | 400W @240V / 200W @100V per gang; 400W @240V / 200W @100V total |
| Minimum load | 3W (no neutral wiring) | 3W (no neutral wiring) |
| Wireless | Zigbee 3.0 | Zigbee 3.0 |

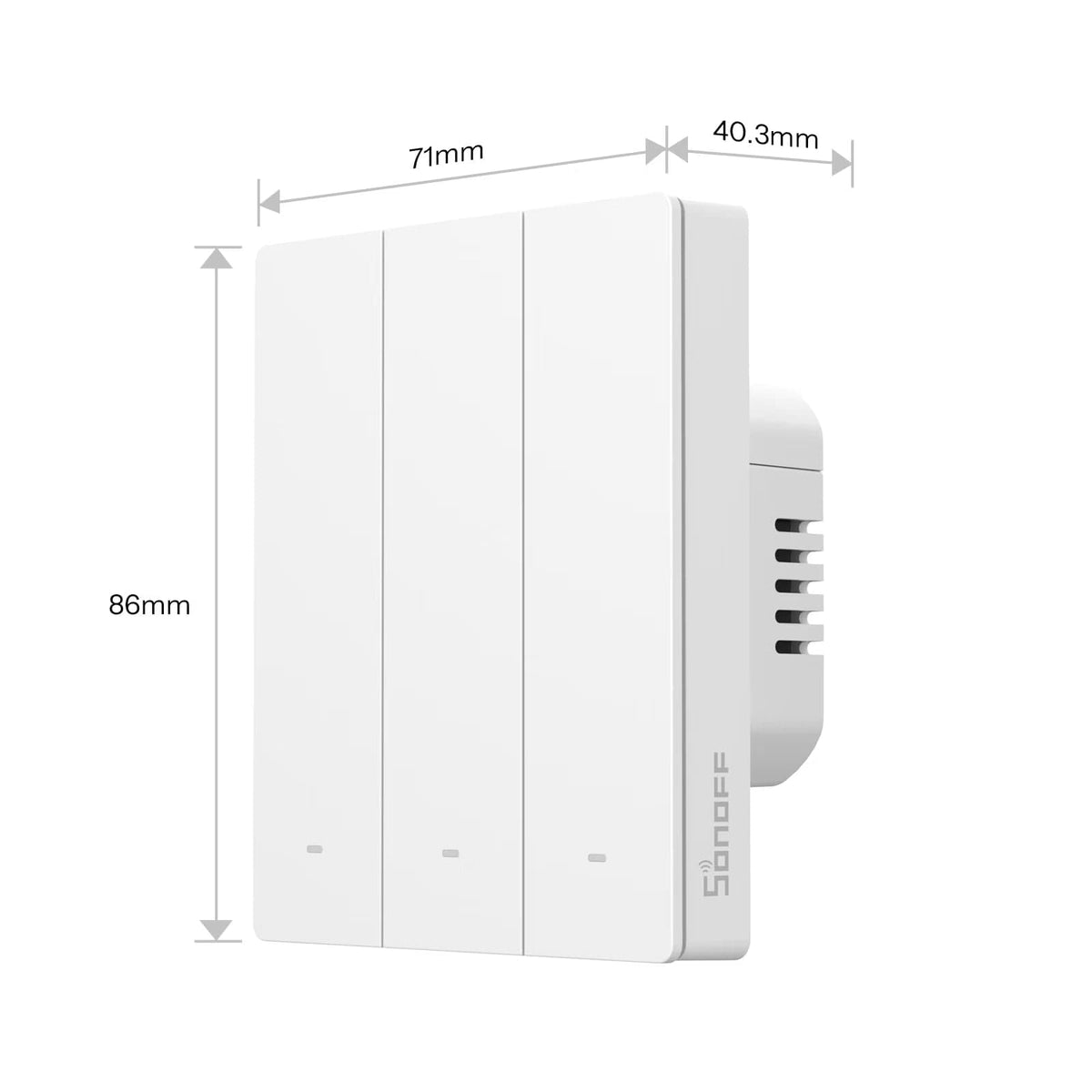

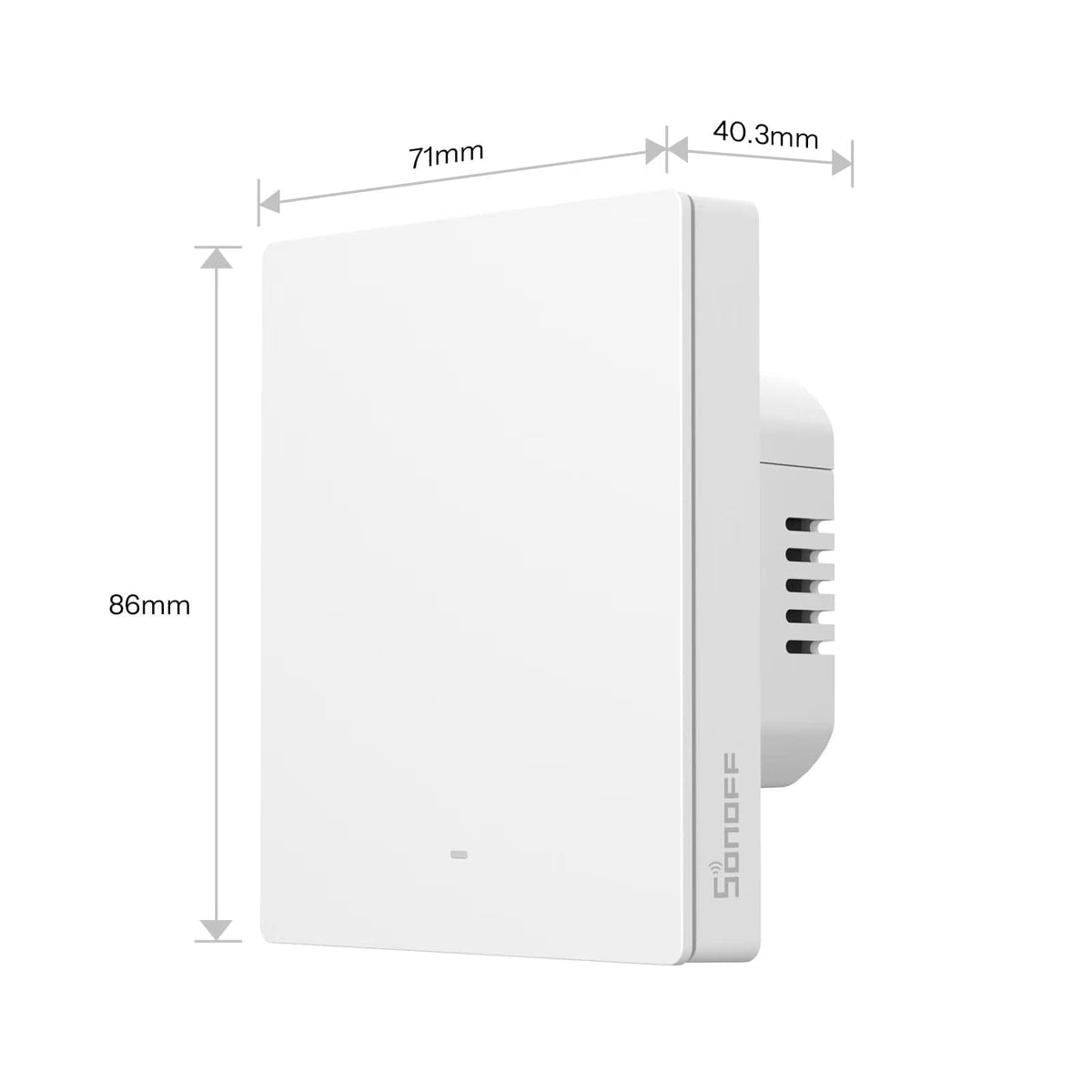

| Dimensions | 86 × 71 × 40.3 mm | 86 × 71 × 40.3 mm |
| Operating temperature | -10°C to 40°C | -10°C to 40°C |
| Casing material | PC + CRS | PC + CRS |
| Color | White | White |
📄 User manual: Download the official SONOFF ZBM5 80-type user manual (PDF)
