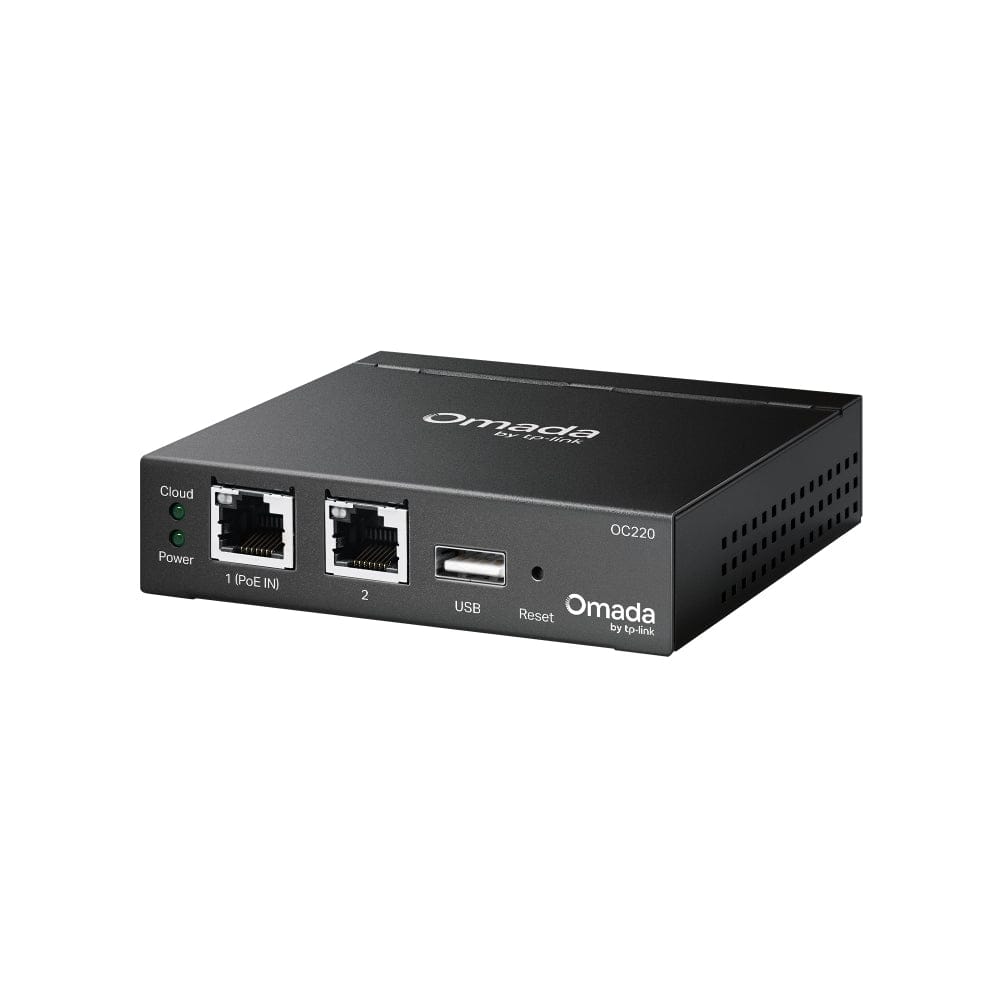

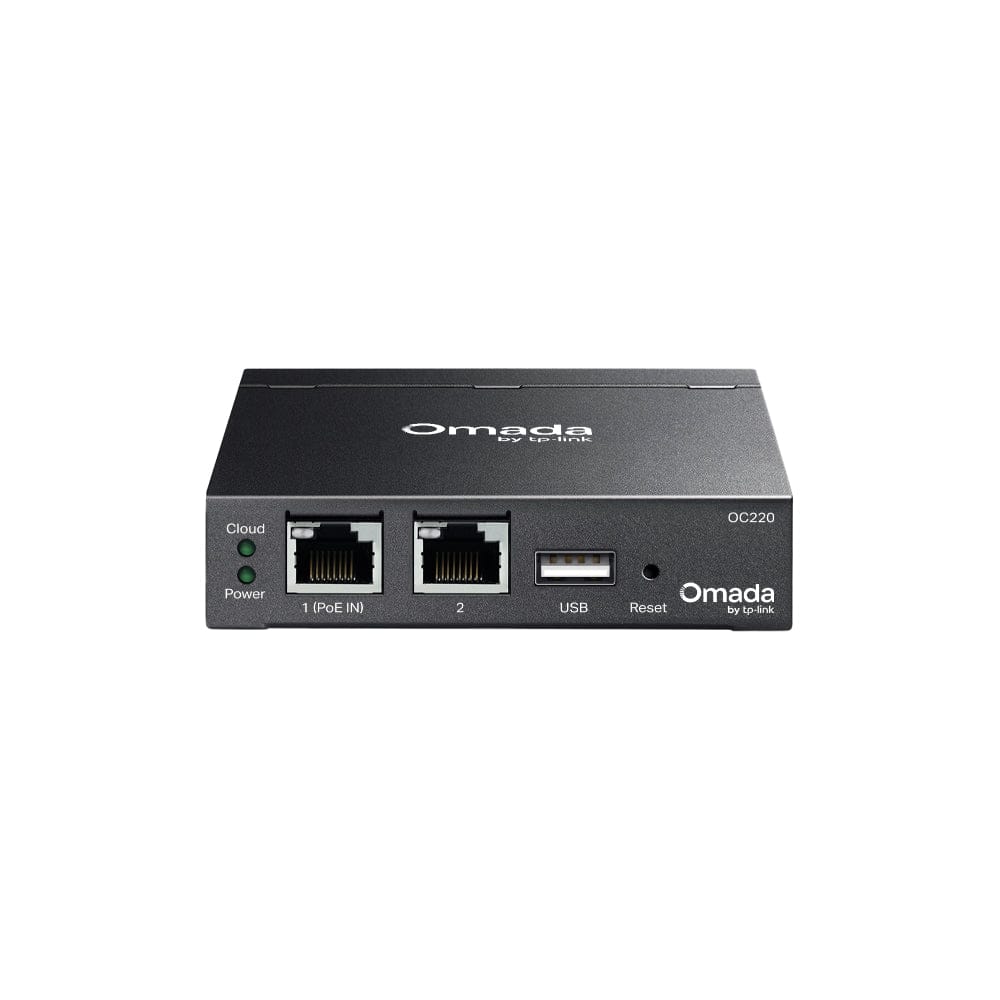

TP-Link OC220 Omada Hardware Controller with Cloud Management and PoE Support
TP-Link OC220 Omada Hardware Controller with Cloud Management and PoE Support
تعذر تحميل توفر الاستلام
Product Description
The TP-Link OC220 is a professional Omada hardware controller designed to provide centralized management for Omada SDN networks across multiple sites and devices.
Built for business environments, the OC220 enables unified management of Omada access points, switches, gateways, and supported GPON OLT devices through cloud access or local management.
Powered by a quad-core processor with 2GB DDR4 memory, the controller delivers reliable performance for medium and large deployments while supporting up to 100 Omada access points, 20 switches, and 10 gateways.
The OC220 features dual Gigabit Ethernet ports, USB backup support, flexible PoE or Micro-USB power input, and a silent fanless metal enclosure ideal for offices, schools, retail stores, hospitality, and enterprise deployments.
Key Features
✦ Centralized Omada SDN management platform
✦ Supports up to 100 Omada access points
✦ Supports up to 20 Omada switches
✦ Supports up to 10 Omada gateways
✦ Cloud access and local management support
✦ 2× Gigabit Ethernet ports
✦ 1× USB 2.0 backup port
✦ PoE and Micro-USB power support
✦ Quad-Core 2.0GHz processor
✦ 2GB DDR4 memory
✦ Fanless silent operation
✦ Durable metal chassis
Technical Specifications
| Specification | Details |
|---|---|
| Processor | Quad-Core A53 @ 2.0GHz |
| Memory | 2GB DDR4 |
| Storage | 4MB NOR Flash + 8GB eMMC |
| Ethernet Ports | 2× Gigabit RJ45 |
| USB Ports | 1× USB 2.0 |
| Power Input | 802.3af/at PoE or Micro-USB 5V |
| Management Capacity | Up to 100 APs / 20 Switches / 10 Gateways |
| Cloud Access | Yes |
| Local Management | Yes |
| Fanless Design | Yes |

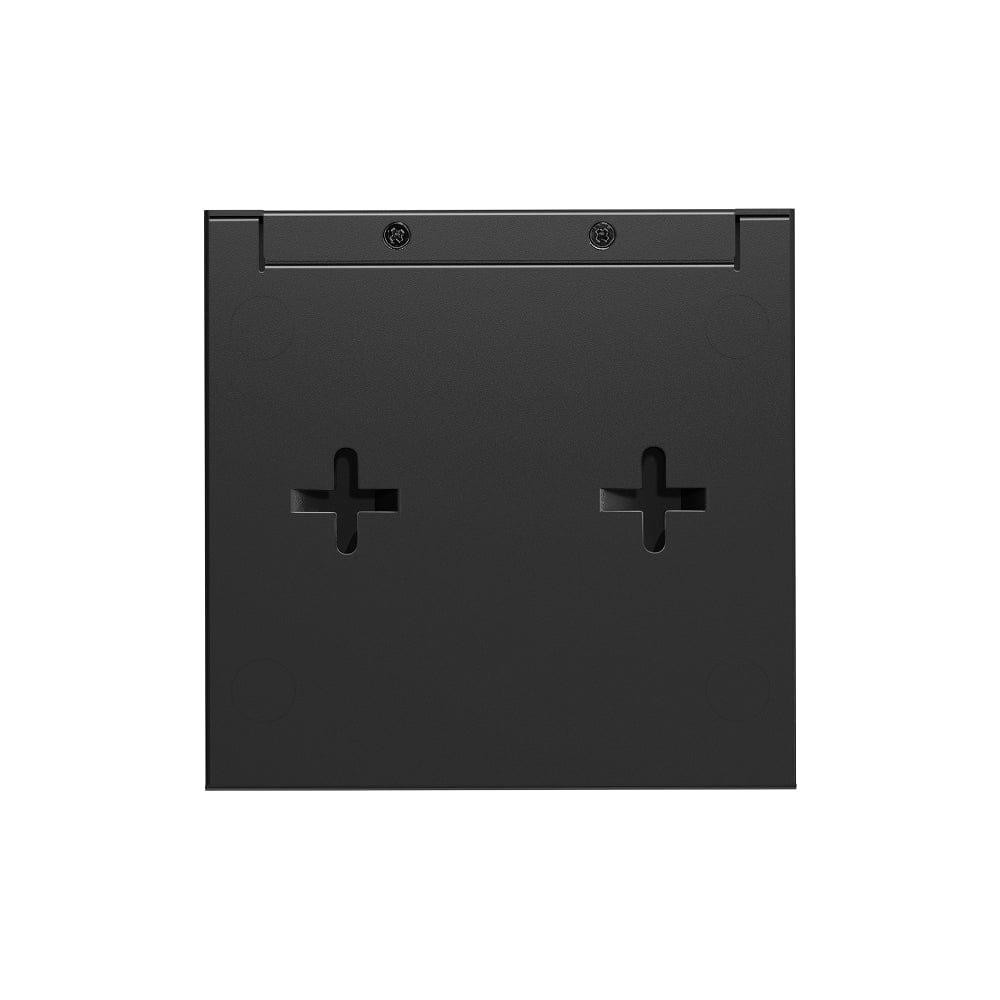

| Mounting Options | Desktop / Wall Mount |
| Dimensions | 100 × 98 × 25 mm |
Box Contents (Verified)
✦ TP-Link OC220 Omada Hardware Controller
✦ Ethernet Cable
✦ Quick Installation Guide
Note:
Micro-USB power adapter is not included in some regional packages.
