16 Channel Network Video Recorder (NVR) Upto 8mp | Hikvision DS-7616NI-Q1

16 Channel Network Video Recorder (NVR) Upto 8mp | Hikvision DS-7616NI-Q1

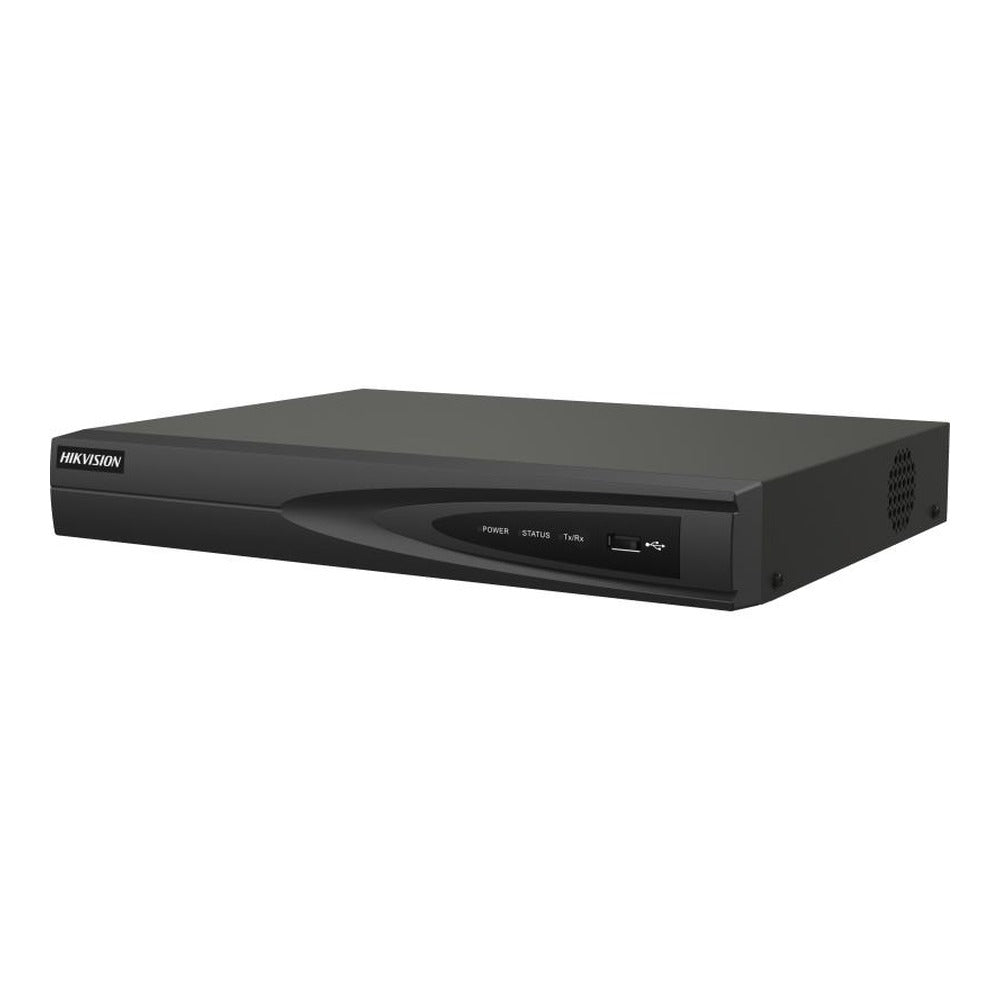

The Hikvision DS-7616NI-Q1 is a 16-channel network video recorder (NVR) in a 1U case for IP cameras up to 8 MP. It takes up to 160 Mbps of incoming video, records with H.265+ onto one SATA drive of up to 8 TB, and outputs up to 4K over HDMI.

16 channels up to 8 MP: Connect up to 16 IP cameras with resolutions up to 8 MP and a total incoming bandwidth of 160 Mbps.

4K HDMI output: The HDMI output goes up to 4K (3840 × 2160) at 30 Hz, and VGA up to 1920 × 1080.

H.265+ recording: The recorder handles H.265+, H.265, H.264+ and H.264. H.265+ reduces the storage needed per camera, so the hard drive keeps more days of video.

Gigabit network and storage: One 10/100/1000 Mbps RJ-45 port connects the recorder to your network, with up to 32 remote connections. One SATA bay takes a hard drive of up to 8 TB, and there are two USB 2.0 ports.

Good to know

• Hikvision makes more than one hardware version of this model, for example DS-7616NI-Q1(D). Only the specifications shared by all versions are listed here; the version is on the label.
• No built-in PoE ports are listed in the datasheet; cameras need a PoE switch or their own power supplies.

Technical Specifications
