EZVIZ 12W Solar Panel with Battery Storage – 37Wh Power Bank

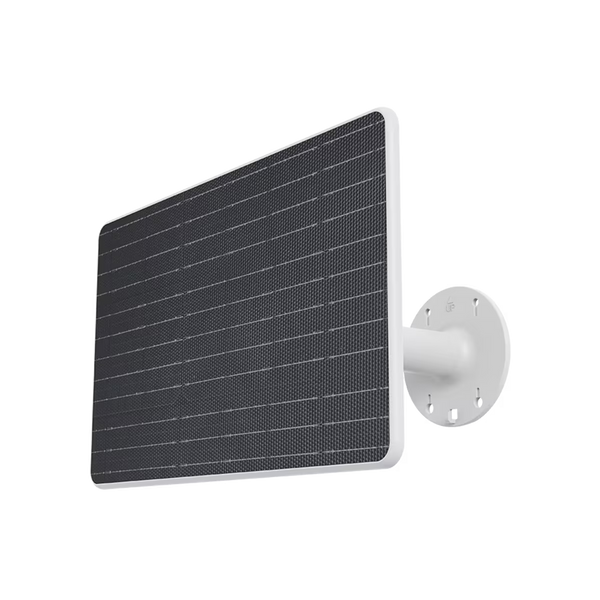

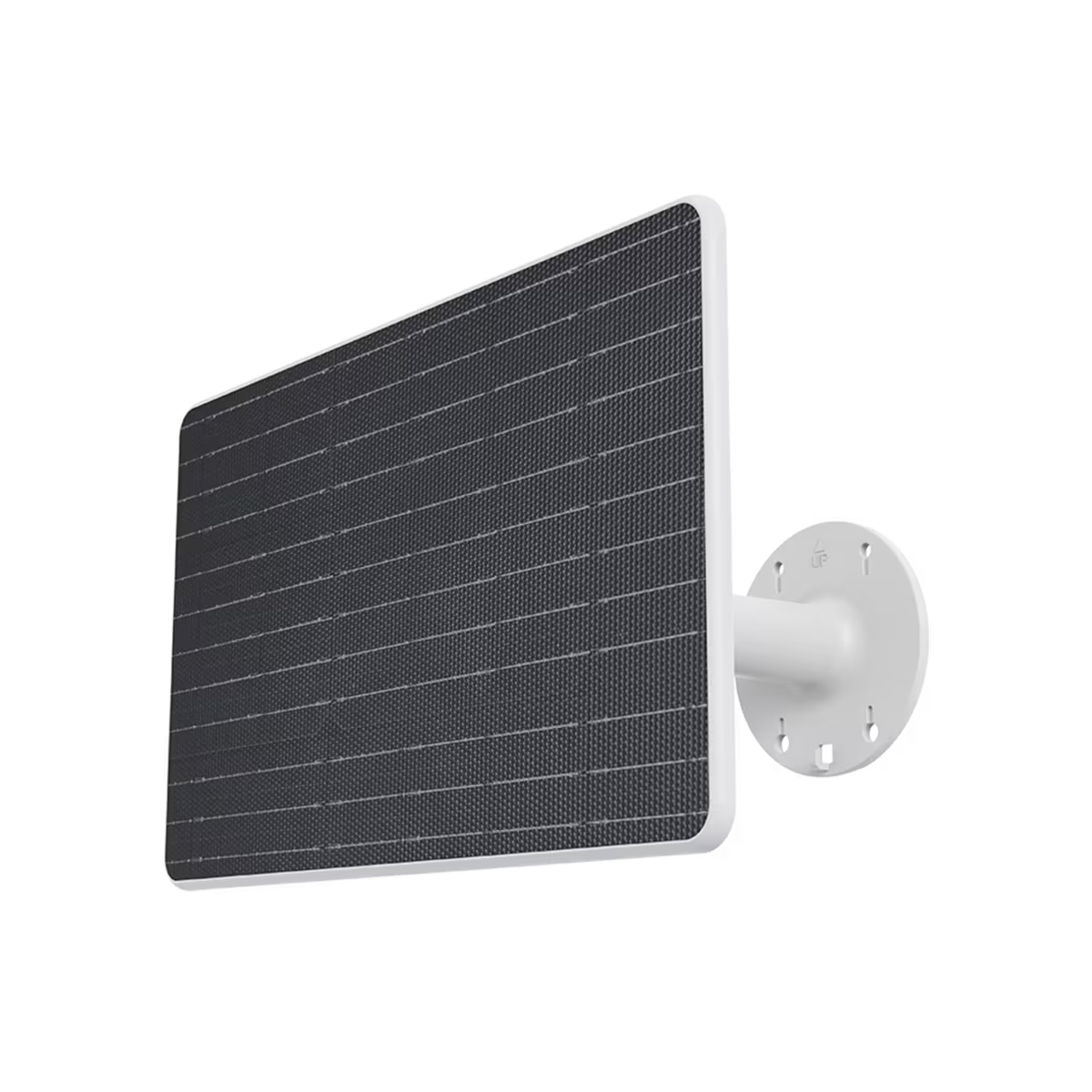

The EZVIZ 12W Battery Solar Panel (model CS-PBC12-R100-10AH) is a solar panel with a built-in 37.23 Wh rechargeable battery, designed to charge EZVIZ outdoor battery cameras. It converts sunlight into power with monocrystalline silicon cells, stores it in its own battery, and charges up to two cameras at the same time through two USB-A output ports.
Built-in 37 Wh battery storage: The panel works as a solar power bank. Energy collected during the day is stored in its onboard battery, so your camera can still get backup power when the sun is not shining, for example at night or on cloudy days.

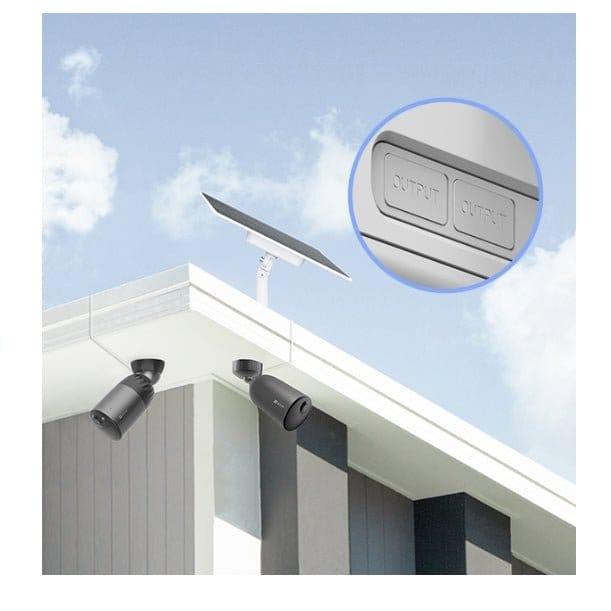

Charges two cameras at once: With two USB-A output ports, one panel can power two battery cameras at the same time. EZVIZ includes two power cables of 3 m, so you can mount the cameras where you need them and place the panel in a sunny spot.
Monocrystalline silicon cells: The panel uses high-efficiency monocrystalline silicon cells with a conversion efficiency of up to 23% and a maximum power of 12 W. Actual charging depends on sunlight intensity and other conditions.
Battery status in the EZVIZ App: When connected to EZVIZ battery cameras that support Bluetooth communication, the panel's power management is shown in the EZVIZ App. EZVIZ lists the EB3-R200, BC1c-R100, CB5-R100 and EB5-R100 as supported models.
Weatherproof, flexible mounting: The panel is rated IP65 for outdoor use and comes with an adjustable mounting bracket for wall or pole mounting, so you can turn it toward the sun.
Who it's for / Works with
EZVIZ outdoor battery cameras. EZVIZ states it is designed to charge all EZVIZ outdoor battery cameras; battery status monitoring in the app works only with the Bluetooth-capable models listed above.
Good to know
The operating temperature of the panel is -20°C to 60°C, but camera charging should be kept within 0-45°C. Battery life varies with settings, usage and temperature. Please check camera compatibility before purchase.
Technical Specifications
| Model | CS-PBC12-R100-10AH |
| Max. Power | 12 W |
| Battery Capacity | 37.23 Wh rechargeable battery |
| Solar Cell | Monocrystalline silicon |
| Conversion Efficiency | Up to 23% |
| Open Circuit Voltage | 6.7 V |
| Power Voltage | 5.7 V |
| Max. Power Current | 2.1 A |
| Short Circuit Current | 2.3 A |
| Ports | 1 x USB Type-C (input), 2 x USB-A (output) |
| IP Rating | IP65 |
| Operating Temperature | -20°C to 60°C (camera charging 0-45°C) |
| Dimensions | 202 x 221 x 326 mm |
| Net Weight | 1.45 kg (2.07 kg with package) |
📄 Datasheet: Download the official EZVIZ CS-PBC12-R100-10AH datasheet (PDF)
