Hikvision Metal Vandal-resistant Facial Recognition IP Villa Door Station Intercomm / DS-KV9503-WBE1

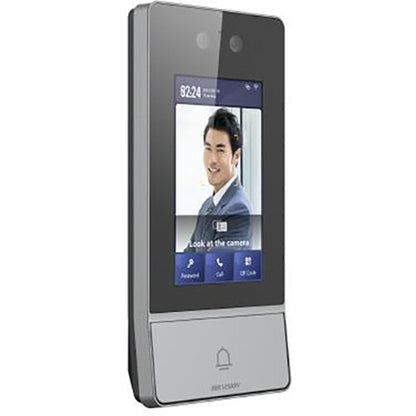

The Hikvision DS-KV9503-WBE1 is an IP villa door station with face recognition and a 4.3-inch touch screen. It opens the door by face, card, PIN code or QR code, has two 2 MP cameras with IR supplement light, is rated IP65 and IK08, and is powered by standard PoE.
Face recognition: The station recognizes a face in under 0.2 s per person, at 0.3 to 2 m, with an accuracy rate of 99% or more. It stores up to 10,000 faces and 20,000 users.
Several ways to open the door: Besides face recognition, residents can use a 13.56 MHz card, a PIN code or a QR code, and visitors press the physical one-touch call button. The datasheet also lists Bluetooth.
4.3-inch touch screen: The IPS capacitive touch screen has a resolution of 800 × 480 and a luminance of 425 cd/m², so it stays readable at the entrance.
Two 2 MP cameras: Two 2 MP cameras cover 88° horizontally and 44° vertically, with 120 dB WDR for strong backlight and IR supplement light up to 3 m for night callers.
Built for outdoor entrances: The metal station is rated IP65 against dust and water and IK08 against impacts, and works from -40 °C to 60 °C.
Door control and alarm inputs: It has 2 relays (max. 30 VDC, 2 A; lock 2 needs a secure module), 4 alarm inputs (2 exit buttons and 2 door contacts by default), RS-485 and a tamper switch.
One-cable installation: Standard PoE (IEEE 802.3af) carries power and data on one network cable; a 12 VDC, 1.5 A supply can be used instead. According to the datasheet, it can call the Hik-Connect app directly without an indoor station.
Good to know
- The TF card slot is reserved (not in use).
- Lock 2 needs a secure module.
- The rain cover DS-KABV9503-RS is an optional accessory.
Technical Specifications
| Model | DS-KV9503-WBE1 |
| Operating system | Linux |
| ROM / RAM | 4 GB / 1 GB |
| Screen | 4.3-inch IPS capacitive touch screen |
| Resolution | 800 × 480 |
| Luminance | 425 cd/m² |
| Cameras | 2 × 2 MP |
| Field of view | Horizontal 88°, vertical 44° |
| WDR | 120 dB |
| Supplement light | IR, up to 3 m |
| Video compression | H.264 (main and sub stream), H.265 (third stream) |
| Audio | Built-in omnidirectional microphone and loudspeaker; noise suppression and echo cancellation |
| User / face / card capacity | 20,000 / 10,000 / 100,000 |
| Card reading frequency | 13.56 MHz |
| Face recognition distance | 0.3 to 2 m |
| Face recognition accuracy | ≥ 99% |
| Face recognition duration | < 0.2 s per person |
| Network | 1 × RJ-45, 10/100 Mbps self-adaptive; Wi-Fi 802.11 b/g/n |
| Bluetooth | 2.0 |
| Alarm inputs | 4 (2 exit buttons and 2 door contacts by default) |
| Lock control | 2 relays, max. 30 VDC 2 A |
| RS-485 / Tamper | 1 / 1 |
| TF card | Reserved |
| Button | 1 physical button |
| Installation | Surface mounting |
| Protection | IP65, IK08 |
| Power supply | 12 VDC, 1.5 A; IEEE 802.3af standard PoE |
| Power consumption | ≤ 6 W |
| Working temperature | -40 °C to 60 °C |
| Working humidity | 10% to 90% (non-condensing) |
| Dimensions (W × H × D) | 182 × 85 × 26 mm |
| Weight | Net 0.405 kg, gross 0.752 kg |
📄 Datasheet: Download the official Hikvision DS-KV9503-WBE1 datasheet (PDF)
