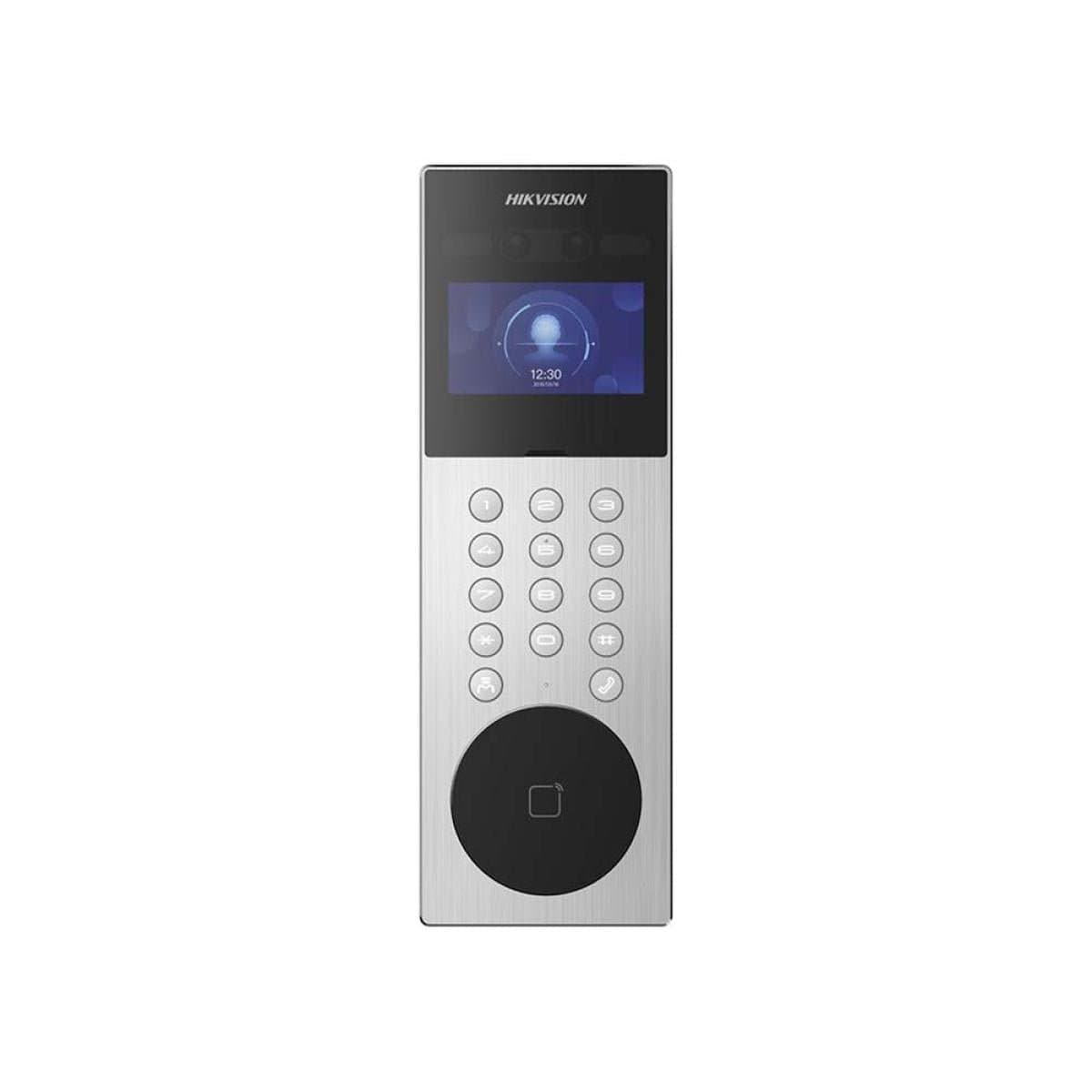

HIKVISION DS-KD9203-ME6 Facial Recognition Door Station Intercom
The Hikvision DS-KD9203-ME6 is a metal IP video intercom door station with face recognition and a 4.3-inch colour screen. It has two 2 MP wide-angle HD cameras, a built-in M1 card reader and IP65 protection, and residents or visitors can unlock by face, card or PIN code.
Face, card or PIN: The door station stores up to 5,000 faces, 50,000 cards and 10,000 users. Residents can open the door with their face, an M1 card or a PIN code, so keys are no longer needed at the entrance.
Two 2 MP wide-angle cameras: The 2 × 2 MP HD lens gives a large, detailed view of the entrance, with a main stream of 1080p or 720p at 30 fps, 120 dB digital WDR for bright backlight, and IR light up to 3 m for the dark.
4.3-inch colour screen: The 800 × 480 colour LCD and physical buttons guide the visitor at the door.
Clear two-way audio: A built-in omnidirectional microphone and loudspeaker with noise suppression and echo cancellation let the resident and the visitor talk clearly, with adjustable volume.
Interfaces for the building: It connects by a 10/100/1000 Mbps RJ45 port and has 2 RS-485 ports, 4 alarm inputs, 1 lock relay (max. 30 VDC, 2 A), an exit button input, a door contact input and a tamper input.
Made for outdoor entrances: The metal door station is rated IP65, works from -30 °C to 60 °C and is installed flush in the wall. Settings can be changed remotely through its web interface.
Good to know
According to the Hikvision datasheet, this model has no fingerprint reader, Wi-Fi, Bluetooth or Wiegand interface.
It is powered by 12 VDC, 1.5 A, with a power consumption of up to 13 W.
The door station is designed for flush mounting in the wall.
Technical Specifications
| Model | DS-KD9203-ME6 |
| Operating System | Linux |
| Screen | 4.3-inch colour LCD, 800 × 480 |
| Camera | 2 × 2 MP wide-angle HD lens |
| Main Stream | 1080p@30fps, 720p@30fps |
| Sub Stream | VGA@25fps, VGA@30fps |
| WDR | Digital WDR / 120 dB |
| Supplement Light | IR, up to 3 m |
| Video Compression | H.264 |
| Unlock Methods | Face, card (M1), PIN code |
| Capacity | 10,000 users, 5,000 faces, 50,000 cards |
| Audio | 1 built-in omnidirectional microphone, 1 built-in loudspeaker, noise suppression and echo cancellation |
| Audio Compression | G.711U, G.711A, 64 Kbps |
| Network | 1 × RJ45 10/100/1000 Mbps self-adaptive; TCP/IP, RTSP |
| RS-485 | 2 (half duplex) |
| Alarm Input | 4 |
| Lock Control | 1 relay, max. 30 VDC, 2 A |
| Other Inputs | 1 × exit button, 1 × door contact, 1 × tamper |
| Buttons | Physical buttons |
| Installation | Flush mounting |
| Protection Level | IP65 |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | ≤ 13 W |
| Working Temperature | -30 °C to 60 °C |
| Working Humidity | 10% to 90% (non-condensing) |
| Dimensions (W × H × D) | 373 × 124 × 43.7 mm |
| Weight | 1.186 kg net, 1.471 kg gross |
| Languages | 19, including English and Arabic |
📄 Datasheet: Download the official Hikvision DS-KD9203-ME6 datasheet (PDF)
