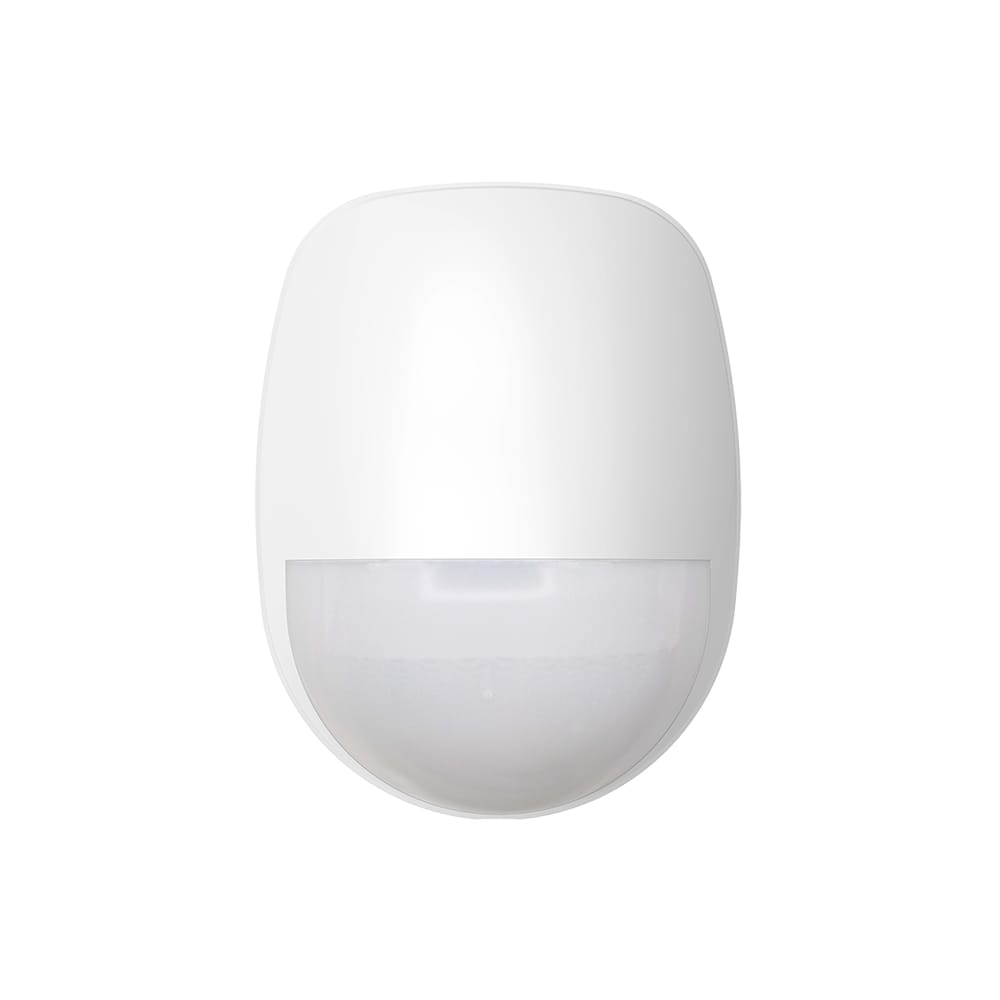

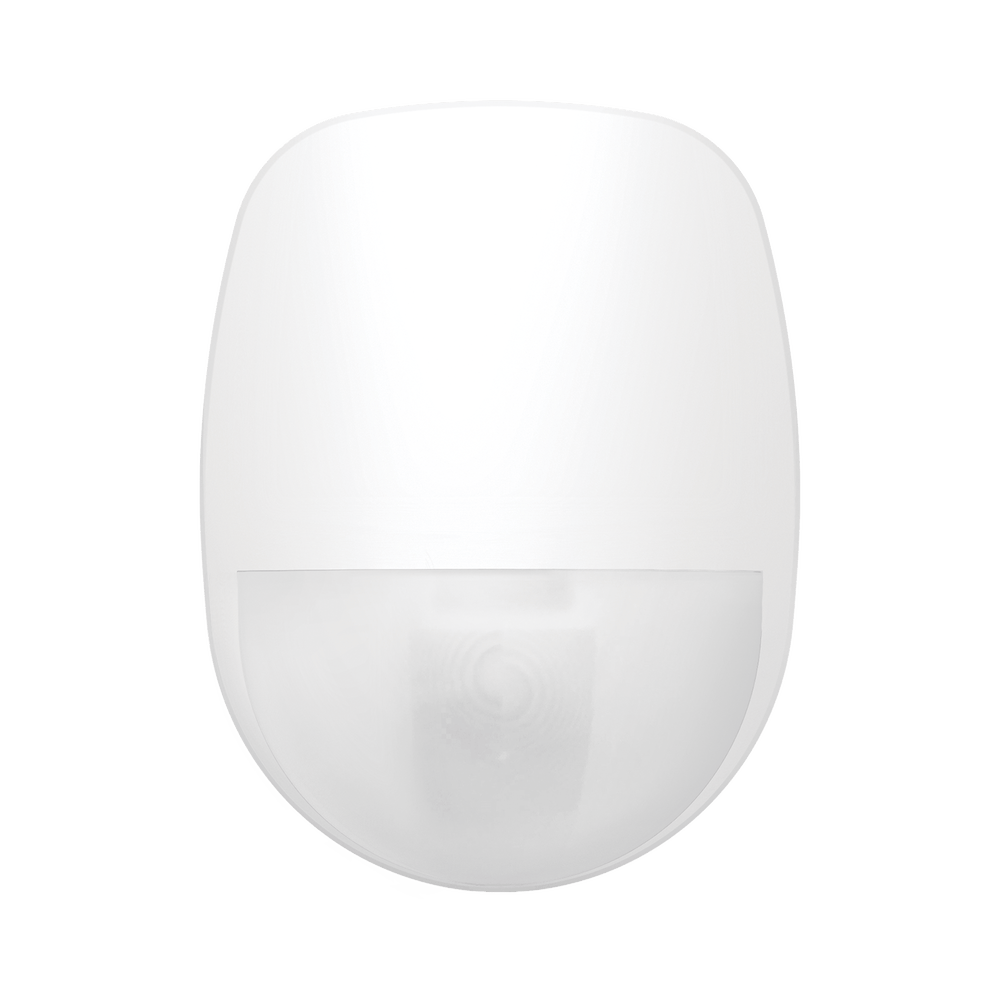

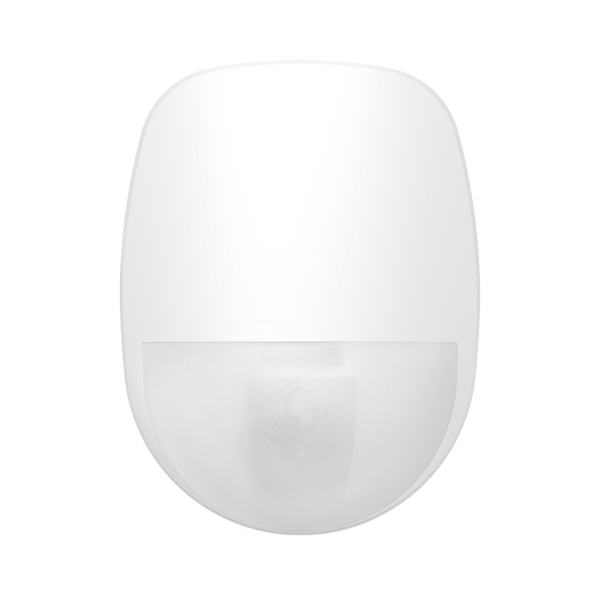

Hikvision Wired 15 m PIR Curtain Detector | DS-PDC15-EG2
The Hikvision DS-PDC15-EG2 is a wired indoor PIR curtain detector with a long 15 m, narrow-angle detection pattern, ideal for protecting corridors, windows and entrances in wired alarm systems.
Color: White
Key Features:
Long-Range Curtain: 15 m detection range with a narrow 6.3° angle and 18 detection zones.
Digital Temperature Compensation: With digital processing for reliable detection.
Creep-Zone Protection: Covers the area directly below the detector.
Sealed Optics: Prevents insect interference.
Flexible Wiring: Selectable EOL resistors for alarm and tamper wiring, with wide 9–16 V input and reverse-polarity protection.
Technical Specifications:
| Model | DS-PDC15-EG2 |
| Detection method | Passive infrared (dual-element) |
| Detection range | 15 m |
| Detection angle | 6.3° (narrow angle) |
| Detection zones | 18 |
| Detection speed | 0.3 to 2 m/s |
| White light filter | 6500 lux |
| Digital temperature compensation | Yes |
| Creep (ground) zone protection | Yes |
| Digital processing | Yes |
| Tamper protection | Front |
| LED indicator | Blue (alarm) |
| Power supply | 9 to 16 VDC |
| Operating temperature | -10 °C to 55 °C |
| Storage temperature | -20 °C to 60 °C |
| Operating humidity | 10% to 90% |
| Weight | 68 g |
| Mounting height | 2.4 to 3.6 m |
| Application | Indoor |
| Bracket | Optional wall/ceiling bracket (sold separately) |
Compatibility: Wired detector for wired alarm panels, with selectable EOL resistors.
📄 Datasheet: Download the official Hikvision DS-PDC15-EG2 datasheet (PDF)
