Hikvision Wired Dual-Tech Detector with Anti-Masking | DS-PDD15AM-EG2

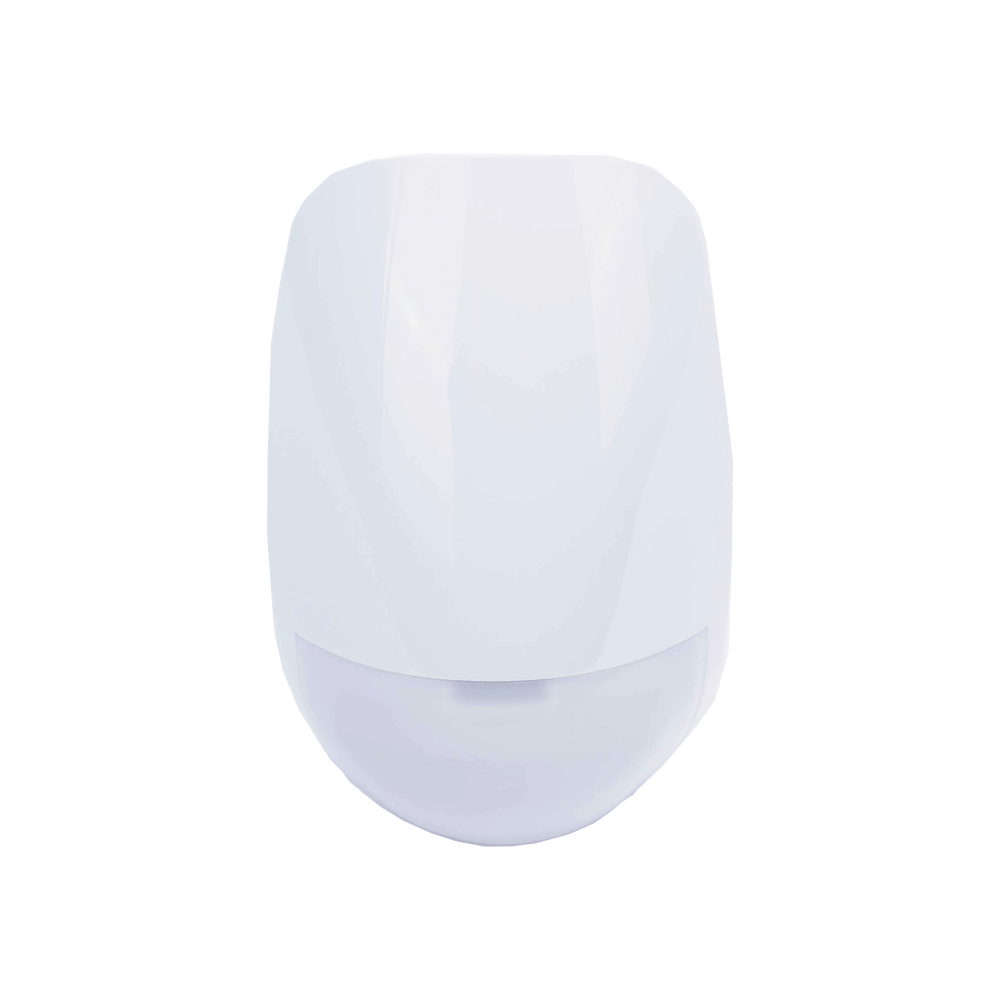

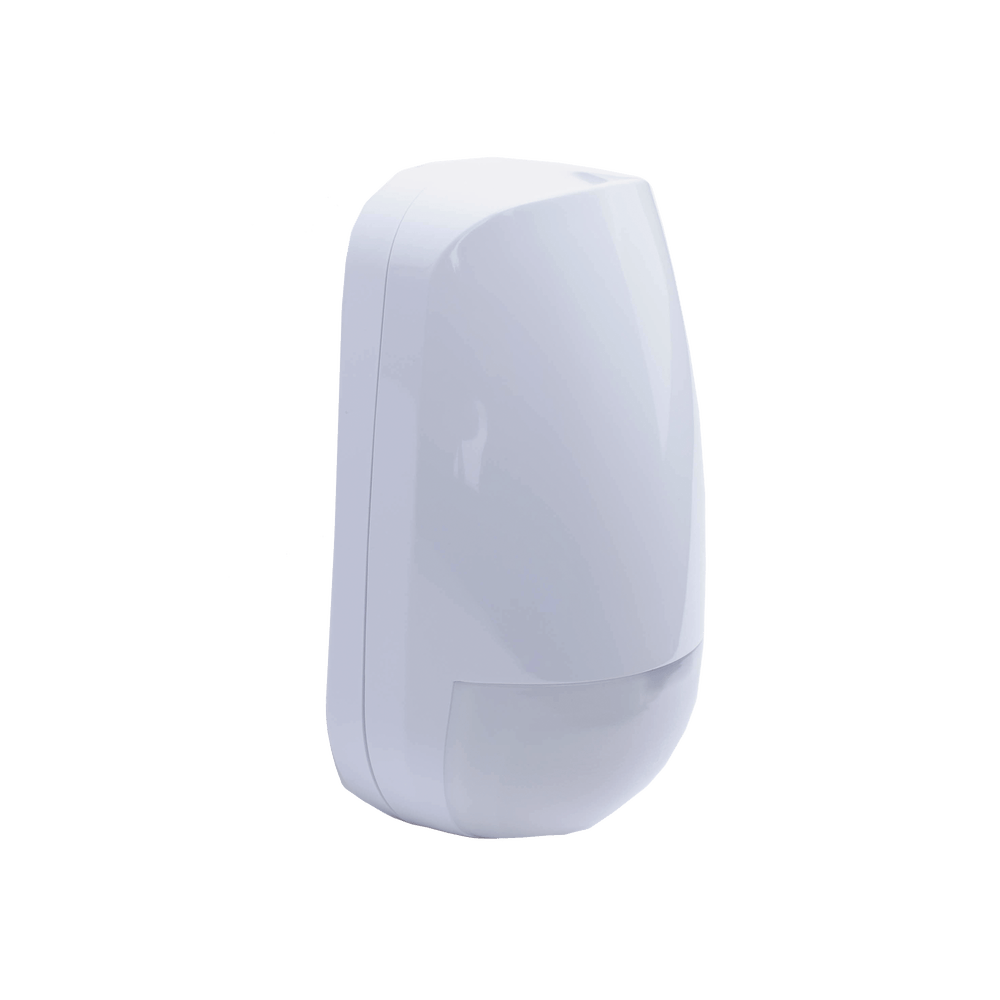

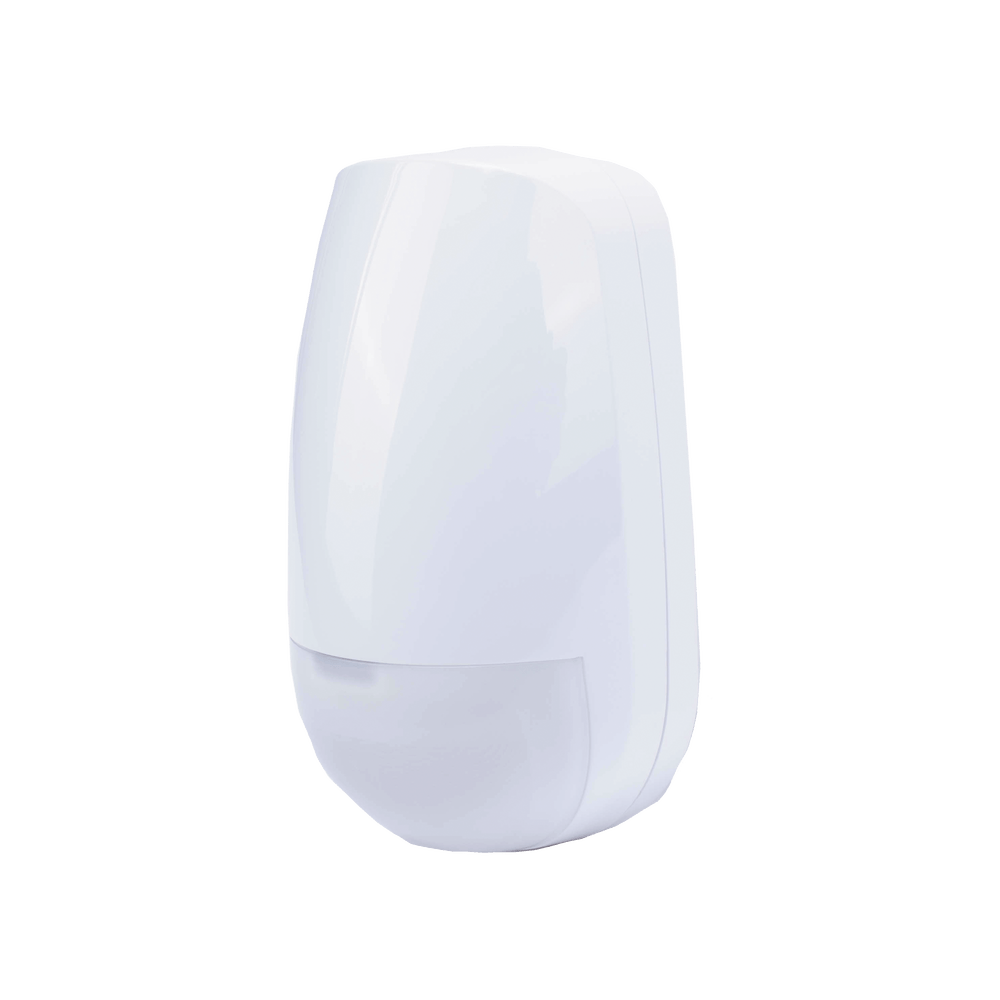

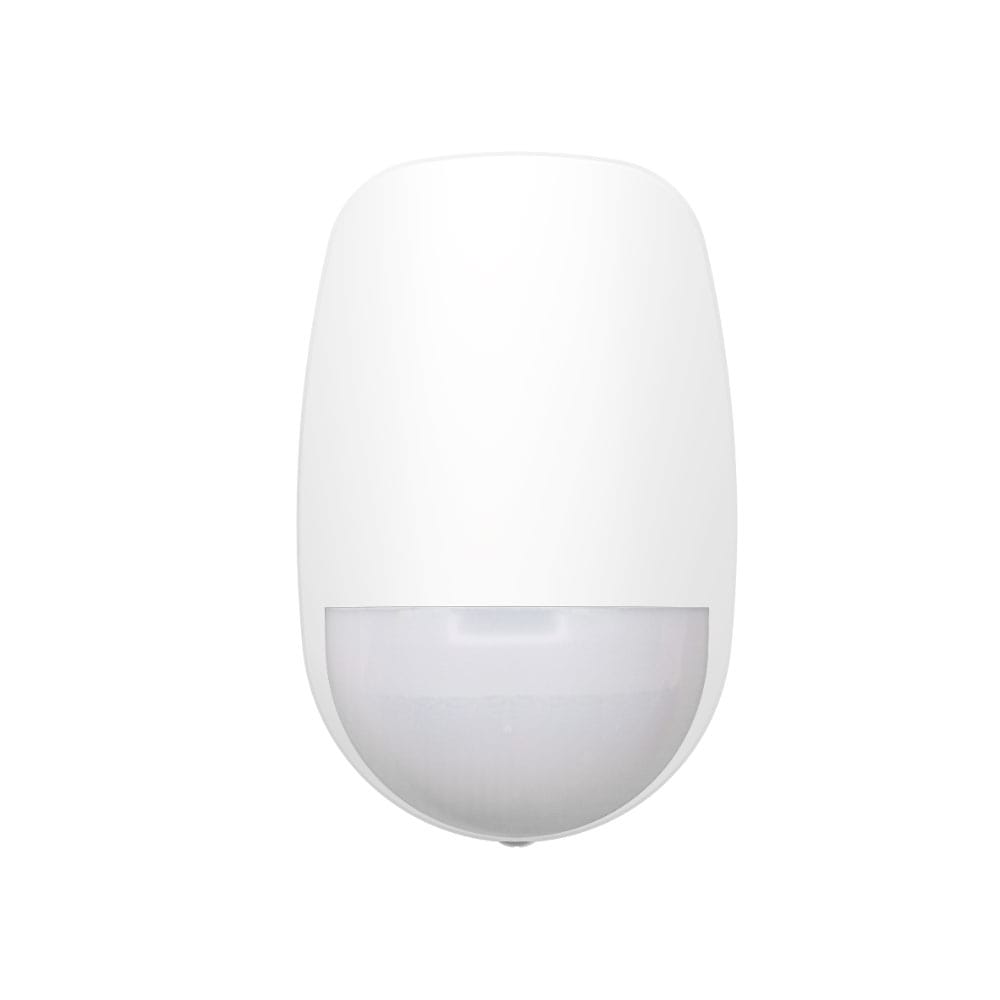

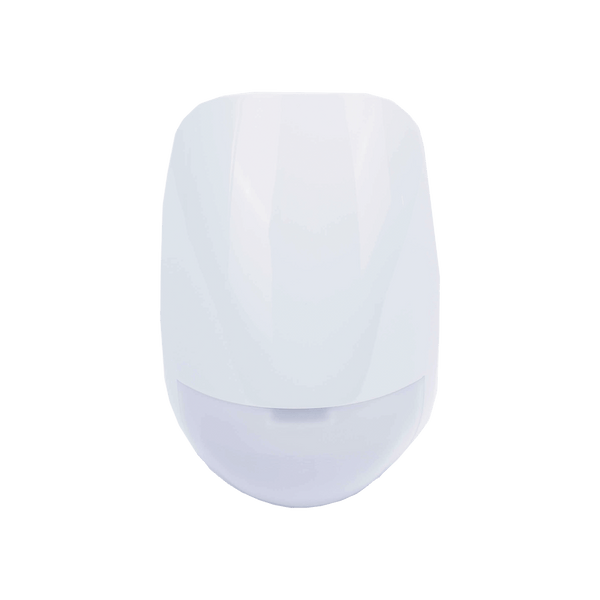

The Hikvision DS-PDD15AM-EG2 is a wired dual-technology (PIR + 24 GHz microwave) motion detector with anti-masking, part of the Hikvision AX Hybrid PRO wired range.
Color: White
Key Features:
Dual Technology: PIR plus 24 GHz microwave detection, with a 15 m range, 85.9° angle and 52 zones.
Anti-Masking: Anti-masking, anti-cloaking and anti-blocking detection for higher-security scenarios.
Automatic Sensitivity: With digital temperature compensation and creep zone protection.
Flexible Wiring: Selectable EoL resistor wiring for alarm, tamper and mask circuits.
Security Grade: Grade 2 (EN 50131).
Technical Specifications:
| Model | DS-PDD15AM-EG2 |
| Detection method | Passive infrared (PIR) + microwave (dual-tech) |
| Detection range | 15 m |
| Detection angle | 85.9° |
| Detection zones | 52 |
| Detectable speed | 0.3 to 2 m/s |
| Sensitivity | Auto / Low |
| White light filter | 6500 lux |
| Microwave frequency | 24 GHz (24.15 to 24.25 GHz) |
| Anti-masking / anti-cloaking / anti-blocking | Supported |
| Digital temperature compensation, creep zone protection, digital processing, sealed optics | Supported |
| Tamper protection | Front tamper |
| Alarm output | Normally closed (NC) |
| LED indicator | Green (PIR), red (microwave), blue (alarm) |
| Power supply | 9 to 16 VDC (typical 12 VDC) |
| Power consumption | 25 mA max. |
| Operating temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operating humidity | 10% to 90% |
| Dimensions (W x H x D) | 65.7 x 103.8 x 45.5 mm |
| Weight | 100 g |
| Mounting height | 1.8 to 2.4 m |
| Mounting method | Wall (optional wall / ceiling brackets) |
| Application scenario | Indoor |
| Security grade | Grade 2 (EN 50131) |
Compatibility: Part of the Hikvision AX Hybrid PRO wired alarm range (NC alarm output).
