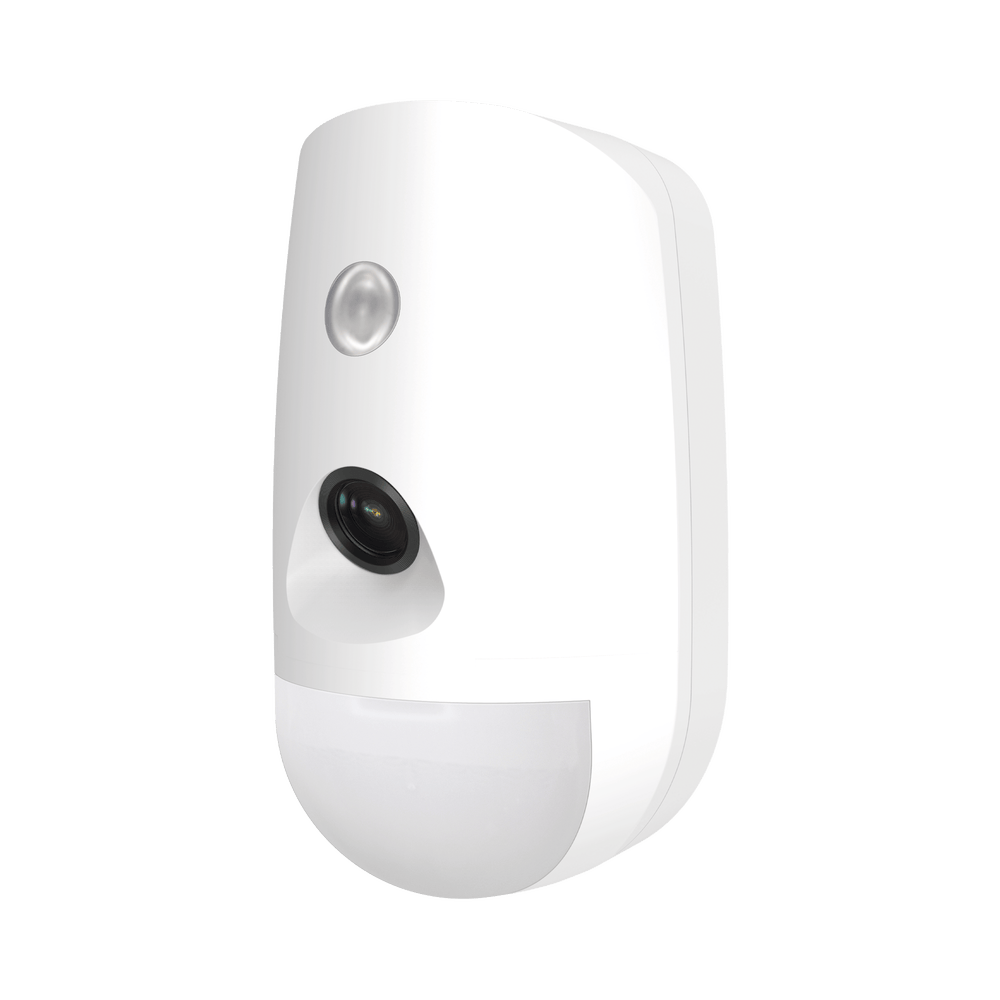

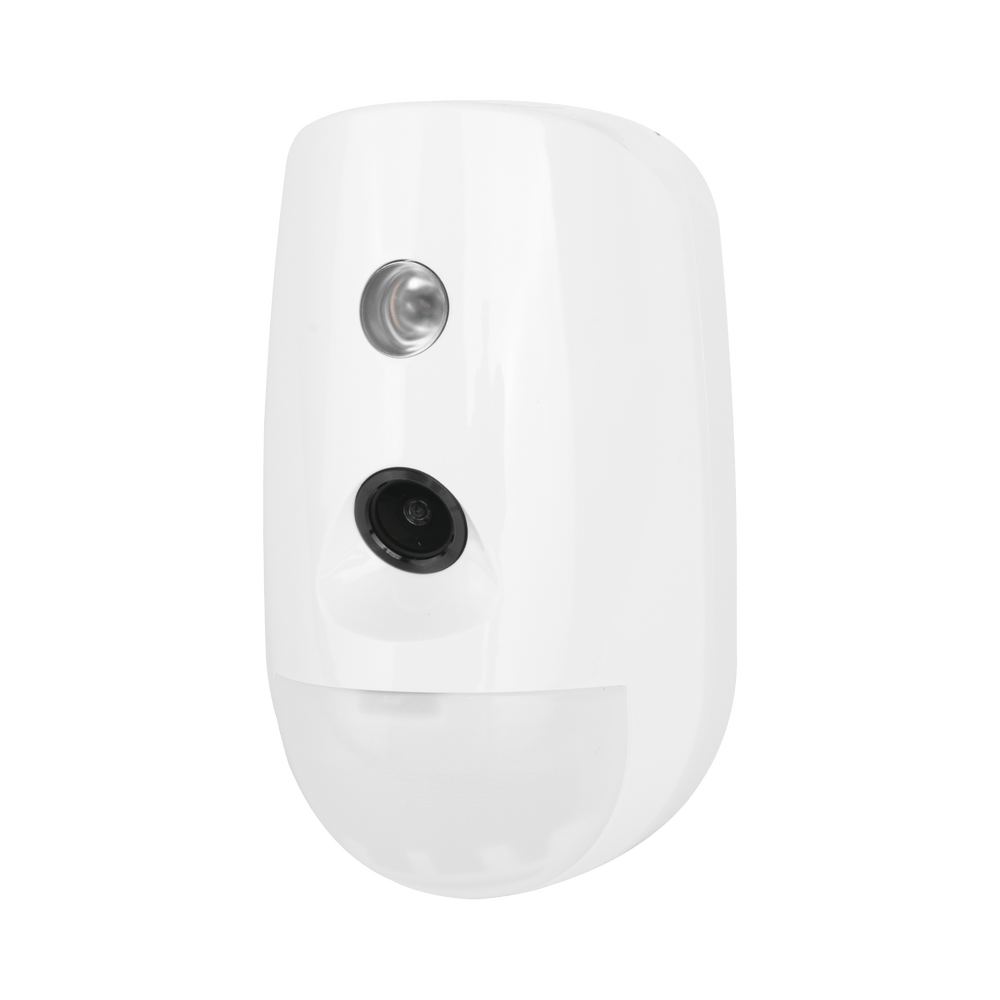

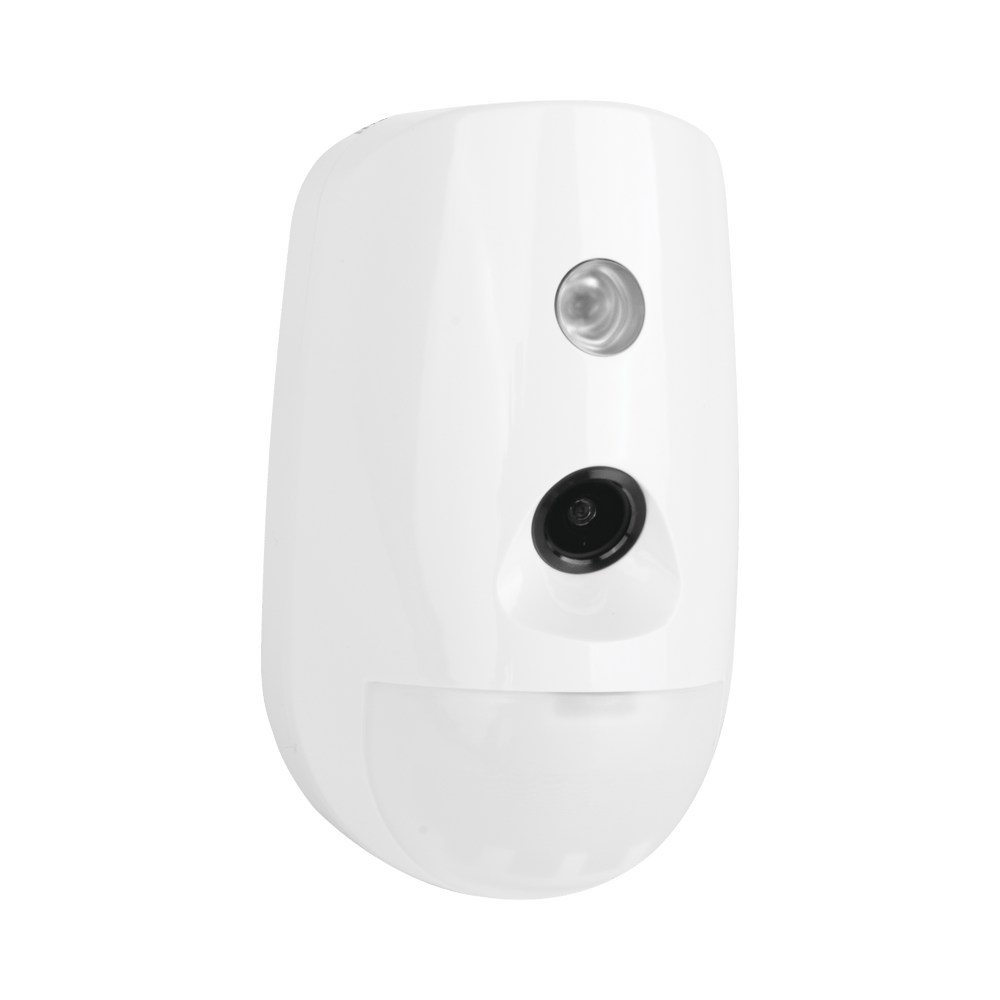

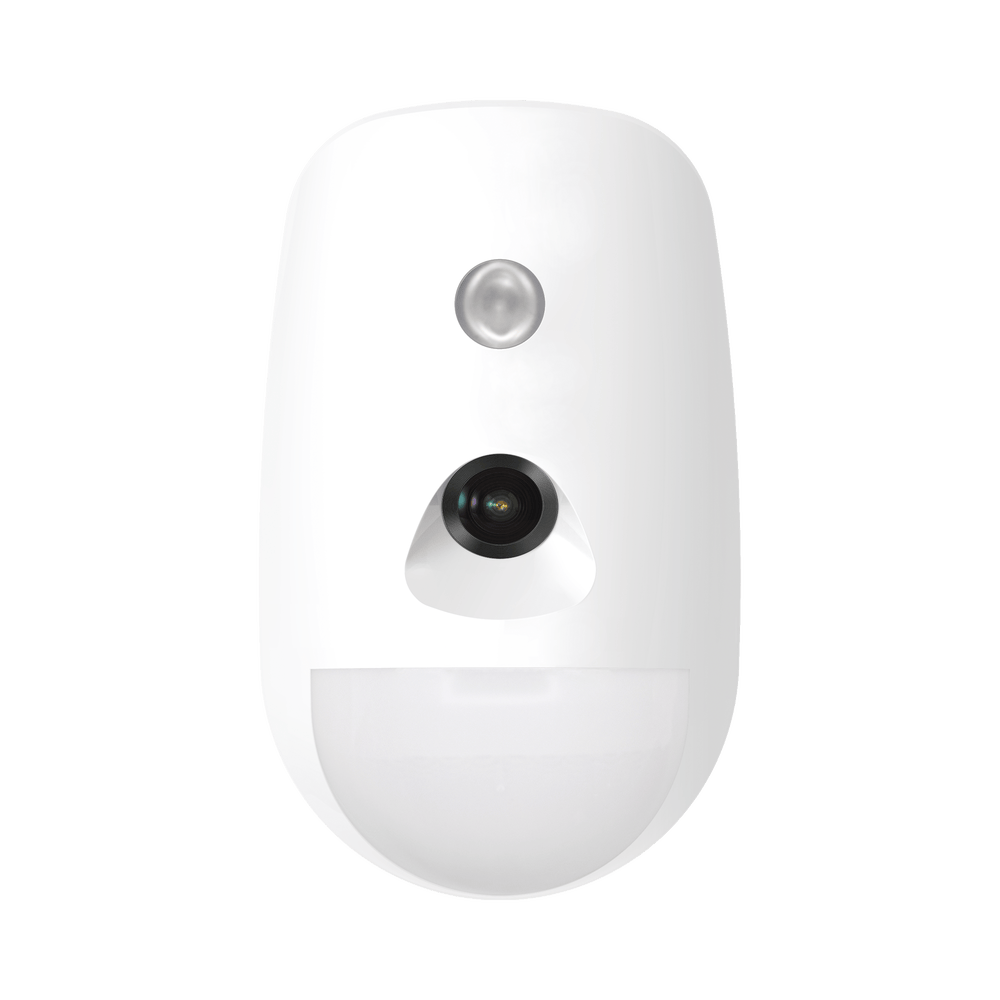

Hikvision Wireless PIR Camera Detector | DS-PDPC12P-EG2-WB
The Hikvision DS-PDPC12P-EG2-WB is a wireless indoor PIR motion detector with a built-in camera for the Hikvision AX PRO alarm system. When motion is detected, it captures JPEG snapshots so you can visually verify what triggered the alarm, helping you tell a real intrusion from a false alarm.
Color: White
Key Features:
Visual Alarm Verification: The built-in camera captures JPEG images at 640×480, 320×240 or 160×120 with an 88° × 68° field of view. An infrared fill light (up to 12 m) and automatic day/night switching allow image capture in low light.
Precise Detection: Passive infrared detection with a 12 m range, 85.9° detection angle and 52 detection zones, using digital signal processing and 3D optics (SEC) for reliable detection.
Pet Immunity: Pet-immune up to 30 kg, with Auto, High and Pet sensitivity modes to reduce false alarms.
Polarizing IR Lens: Designed for more even illumination and clearer images at night, with a large built-in memory buffer for captured images.
Secure Two-Way Wireless: 433 MHz two-way wireless communication with AES-128 encryption and up to 800 m transmission range in open space.
Long Battery Life: Powered by 3 × CR123A batteries with up to 6 years of standby life (under typical usage), and a replaceable battery with PCB protection.
Easy Setup: Fully configurable remotely through the app, with multiple enrollment methods: power-up, remote ID or QR code.
Tamper Protection: Front and rear tamper protection, plus temperature and signal strength indicators.
Technical Specifications:
| Model | DS-PDPC12P-EG2-WB |
| Detection Type | Passive infrared (PIR) with video verification |
| Detection Range / Angle | 12 m / 85.9° |
| Detection Zones | 52 |
| Detectable Speed | 0.3 to 2 m/s |
| Sensitivity Modes | Auto / High / Pet |
| Pet Immunity | Up to 30 kg |
| Image Format / Resolution | JPEG / 640×480, 320×240, 160×120 |
| Camera Field of View | 88° (H) × 68° (V) |
| IR Fill Light Range | 12 m |
| Day/Night | Color / Black & White switching |
| Wireless | Two-way RF, 433 MHz, AES-128 encryption |
| Transmission Range | Up to 800 m (open space) |
| Enrollment | Power-up, remote ID, QR code |
| Power | 3 × CR123A (3 V) |
| Battery Life | Up to 6 years (typical usage) |
| Operating Temperature | -10 °C to 55 °C |
| Operating Humidity | 10% to 90% |
| Installation | Indoor, wall mount, 1.8 to 2.4 m height |
| Dimensions | 72.2 × 120.5 × 56.7 mm |
| Weight | 210 g |
| Optional Accessories | Wall bracket / ceiling bracket (sold separately) |
Compatibility: Works with the Hikvision AX PRO wireless alarm system (control panel sold separately).
📄 Datasheet: Download the official Hikvision DS-PDPC12P-EG2-WB datasheet (PDF)
