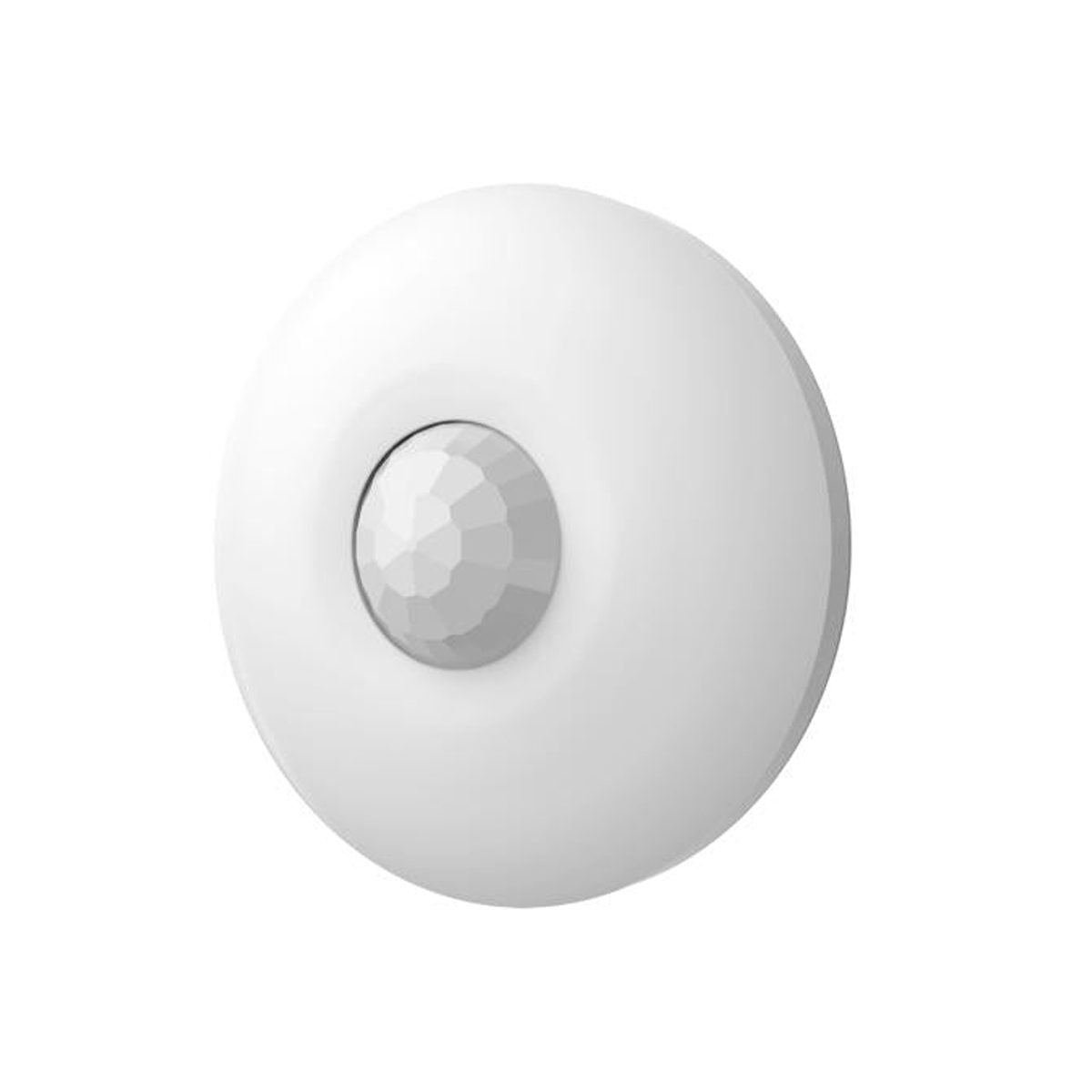

Hikvision Wireless PIR Ceiling Detector | DS-PDCL12-EG2-WB
The Hikvision DS-PDCL12-EG2-WB is a wireless ceiling-mounted PIR detector with a 360° detection angle and up to 12 m detection range. It uses SEC (Smart Environmental Control) with advanced digital signal processing and 3D optics, and it communicates over Tri-X two-way 433 MHz wireless with up to 1 km range in free space.
Key Features
360° Ceiling Coverage: Mounted on the ceiling at 2.4 to 4 m, the detector watches the whole room around it with a 360° angle and 172 detection zones. One unit can cover a room up to 12 m in range.
Smart Environmental Control: SEC uses advanced digital signal processing and 3D optics, together with digital temperature compensation, creep zone protection and a 6500 lux white light filter. Sensitivity can be set to auto or low.
Secure Two-Way Wireless: Tri-X two-way RF at 433 MHz with AES-128 encryption and frequency hopping protects the link against jamming. The range is up to 1 km in free space.
Long Battery Life and Easy Setup: One CR123A battery gives up to 5 years of battery life and is easy to replace. The detector is enrolled by power-up, remote ID or QR code and is fully configurable remotely through the app.
Who it's for / Works with
Hikvision AX PRO wireless alarm systems (Tri-X, 433 MHz); control panel sold separately.
Good to know
- Indoor use, ceiling mounted at 2.4 to 4 m.
- Battery: 1 x CR123A.
Technical Specifications
| Model | DS-PDCL12-EG2-WB |
| Detection method | Passive infrared |
| Detection range | 12 m |
| Detection angle | 360° |
| Detection zones | 172 |
| Detectable speed | 0.3 to 2 m/s |
| Sensitivity | Auto, low |
| White light filter | 6500 lux |
| Features | Digital temperature compensation, creep zone protection, digital processing, sealed optics |
| Tamper protection | Front, rear |
| LED indicator | Blue (alarm) |
| Transmission | Tri-X wireless, two-way RF, 433 MHz |
| Transmission security | AES-128 encryption, frequency hopping |
| Transmission range (free space) | 1 km |
| Enrolling method | Power up, remote ID, QR code |
| Battery | CR123A x 1, 3 V |
| Battery life | Up to 5 years |
| Operating temperature | -10 °C to 55 °C |
| Storage temperature | -20 °C to 60 °C |
| Operating humidity | 10% to 90% |
| Dimensions | φ101.2 x 32.9 mm |
| Weight | 109.5 g |
| Mounting | Ceiling, 2.4 to 4 m height, indoor |
📄 Datasheet: Download the official Hikvision DS-PDCL12-EG2-WB datasheet (PDF)
