EZVIZ 3mp Dual Lens Outdoor PT Camera | H9c 3mp
EZVIZ 3mp Dual Lens Outdoor PT Camera | H9c 3mp
Couldn't load pickup availability
EZVIZ 3mp Dual Lens Outdoor PT Camera | H9c 3mp
Experience the future of security automation with the H9c 2K Dual-Lens Smart Wi-Fi Camera. This advanced camera system provides even clearer and more detailed images than its predecessor with its 2K resolution. The dual-lens design ensures comprehensive coverage of large areas, reducing the need for multiple cameras. It also has advanced features like AI-powered human, vehicle shape detection, and smart tracking.

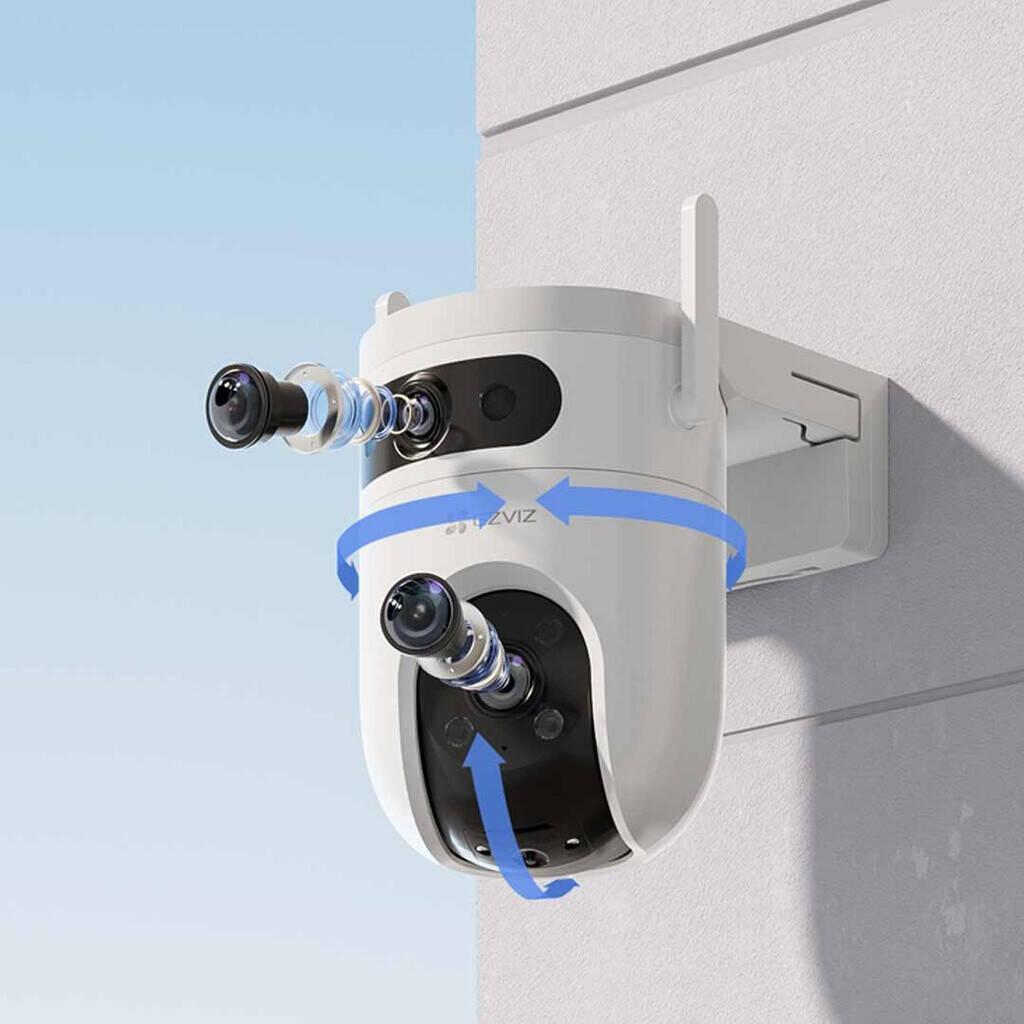

Even if the two lenses are set on opposite viewing angles to secure two different areas, they can complete a single smart tracking task through teamwork. When a human is detected by the upper lens, the PT lens will automatically rotate to such angle to lock on the person and record the whole activity.
EZVIZ H9c (CS-H9c-R100-8H33WKFL) – Dual-Lens Outdoor Pan & Tilt Wi-Fi Security Camera
━━━━━━━━━━━━━━━━━━
General
Type: Outdoor Dual-Lens Pan & Tilt Wi-Fi Security Camera
Designed for advanced outdoor surveillance with dual-camera coverage, auto tracking and AI detection.
Ideal for homes, villas, warehouses and wide-area monitoring.
━━━━━━━━━━━━━━━━━━
Camera Specifications
Image Sensor: 1/2.7" Progressive Scan CMOS
Dual Camera System:
Upper Camera: 2.8 mm @ F1.6
Viewing Angle: 130° (Diagonal), 108° (Horizontal), 56° (Vertical)
Bottom Camera: 6 mm @ F1.6
Viewing Angle: 62° (Diagonal), 55° (Horizontal), 28° (Vertical)
Pan & Tilt:
Pan: 350°
Tilt: 80°
Minimum Illumination:
0.5 Lux @ (F1.6, AGC ON)
0 Lux with IR
Day & Night: IR-Cut Filter with Auto Switching
Night Vision: Up to 30 m (98 ft)
Image Processing:
3D DNR
Digital WDR
━━━━━━━━━━━━━━━━━━
Video & Audio
Max Resolution: 2304 × 1296
Frame Rate: Up to 15 fps (Adaptive)
Video Compression: H.265 / H.264
H.265 Profile: Main Profile
Video Bit Rate: Quad HD / Full HD / Hi-Def / Standard (Adaptive)
Audio: Two-Way Talk Supported
━━━━━━━━━━━━━━━━━━
Smart Functions
AI Human Shape Detection
AI Vehicle Detection
Motion Detection
Auto Tracking: Supported
Preset Locations: Supported
Customizable Alert Area: Supported
General Features:
Anti-Flicker
Dual-Stream
Heart Beat
Password Protection
Watermark
━━━━━━━━━━━━━━━━━━
Network
Wi-Fi Standard: IEEE 802.11 b/g/n
Frequency: 2.4 GHz
Channel Bandwidth: 20 MHz
Transmission Rate:
802.11b: 11 Mbps
802.11g: 54 Mbps
802.11n: 150 Mbps
Wi-Fi Pairing: AP Pairing
Wired Network:
RJ45 Port (10 / 100 Mbps Adaptive Ethernet)
Wireless Security:
WPA-PSK / WPA2-PSK
Protocol: EZVIZ Cloud Proprietary Protocol
━━━━━━━━━━━━━━━━━━
Storage
Local Storage: microSD Card (Up to 512GB)
Cloud Storage: EZVIZ CloudPlay
━━━━━━━━━━━━━━━━━━
Power
Power Supply: DC 12V / 1.5A
Power Consumption: Max. 12W
━━━━━━━━━━━━━━━━━━
Operating Conditions
Operating Temperature: -30°C to 50°C
Humidity: ≤95% (Non-Condensing)
Protection Rating: Weatherproof Design
━━━━━━━━━━━━━━━━━━
Physical Specifications
Dimensions: 145 × 116 × 142 mm
Weight:
Net Weight: 668 g
With Package: 960 g
━━━━━━━━━━━━━━━━━━
Package Contents
H9c Camera
Power Adapter
Drill Template
Screw Kit
Waterproof Kit
Regulatory Information
Quick Start Guide
━━━━━━━━━━━━━━━━━━
Certifications
CE - WEEE - RoHS - REACH
