Description:

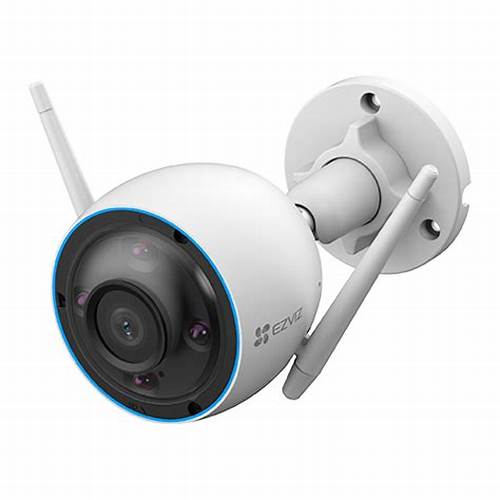

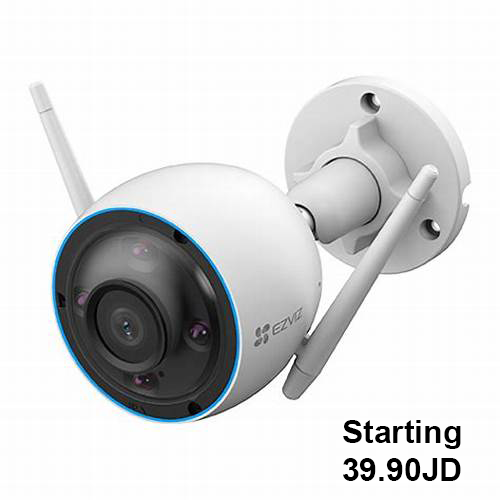

Don’t miss the H3c 2K camera if you want everything essential for home protection alongside some additional, useful smart features. The H3 2K sends smarter notifications particularly on walking people or moving cars, and provides you with the option to customize your detection area. Rendering everything in 2K clarity with color night vision available, it is also the right one to pick if you need a clearer vision on large outdoor spaces – from backyard and home entrance, to family farms and parking lots.

The H3c 2K sends smarter notifications particularly on walking people or moving cars and provides you with the option to customize your detection area

The Ezviz H3 2K Wi-Fi Bullet Camera is the go-to option if you want everything essential for home protection alongside some additional useful smart features

Connectivity technology: Wireless

Recommended uses for product: Outdoor Security

Connectivity protocol: Wi-Fi

Specifications:

EZVIZ H3 (CS-H3-R100-1J3WKFL)

━━━━━━━━━━━━━━━━━━

General
Dimensions: 75.5 × 75.5 × 155 mm (2.97 × 2.97 × 6.10 inch)
Package Dimensions: 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)

Weight:
Net Weight: 438 g (15.45 oz)
With Package: 676 g (23.84 oz)

IP Grade: IP67

Operating Conditions:
-30°C to 60°C (-22°F to 140°F)
Humidity ≤95% (Non-condensing)

━━━━━━━━━━━━━━━━━━

Camera
Image Sensor: 1/2.7" Progressive Scan CMOS

Shutter Speed: Self-adaptive shutter

Lens:
2.8 mm @ F2.0
Viewing Angle: 122° (Diagonal), 106° (Horizontal), 56° (Vertical)

4 mm @ F2.0
Viewing Angle: 102° (Diagonal), 86° (Horizontal), 44° (Vertical)

Minimum Illumination:
0.01 Lux @ (F2.0, AGC ON)
0 Lux with IR

Lens Mount: M12

Day / Night Switch: IR-Cut Filter with Auto Switching

DNR: 3D DNR
WDR: Digital WDR
BLC: Supported

IR Night Vision Distance: Up to 30 m (98 ft)

━━━━━━━━━━━━━━━━━━

Video & Audio
Max Resolution: 2304 × 1296 pixels

Frame Rate: Max 30 fps (Self-Adaptive during Network Transmission)

Video Compression: H.265 / H.264

Video Bit Rate: Quad HD / Full HD / HD / Standard (Adaptive)

Audio Bit Rate: Self-Adaptive

Max Bitrate: 1.5 Mbps

━━━━━━━━━━━━━━━━━━

Network
Wi-Fi Standard: IEEE 802.11 b/g/n

Frequency Range: 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth: Supports 20 MHz

Security:
64 / 128-bit WEP
WPA / WPA2
WPA-PSK / WPA2-PSK

Transmission Rate:
11b: 11 Mbps
11g: 54 Mbps
11n: 150 Mbps

Wi-Fi Pairing: AP Pairing

Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol

Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

━━━━━━━━━━━━━━━━━━

Function
Detection:
AI-Powered Human Shape Detection
AI-Powered Vehicle Shape Detection
Motion Detection

Customized Alert Area: Supported

Integration:
Works with Alexa
Works with Google Assistant
IFTTT

General Function:
Anti-Flicker
Dual-Stream
Heart Beat
Mirror Image
Password Protection
Watermark

━━━━━━━━━━━━━━━━━━

Storage
Local Storage: Supports microSD Card (Up to 512GB)
Cloud Storage: Supports EZVIZ CloudPlay Storage (Subscription Required)

━━━━━━━━━━━━━━━━━━

Power
Wiring: Hard-Wired

Power Supply: DC 12V / 1A

Power Consumption: Max. 7W

━━━━━━━━━━━━━━━━━━

In the Box
EZVIZ H3 2K Camera
Drill Template
Screw Kit
Waterproof Kit
Power Adapter
Regulatory Information
Quick Start Guide

━━━━━━━━━━━━━━━━━━

Certifications
CE - FCC - UKCA - UL - WEEE - RoHS - REACH
