Ezviz 5mp Dual Lens Outdoor PT Camera | H9c 5mp

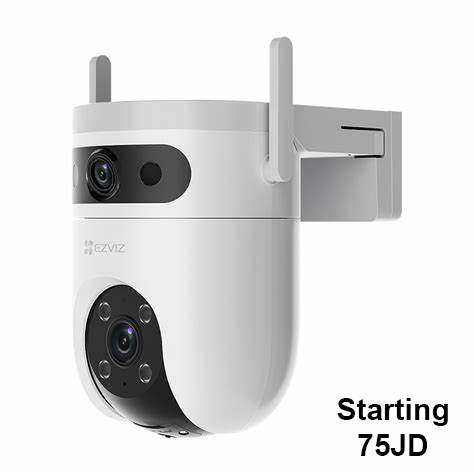

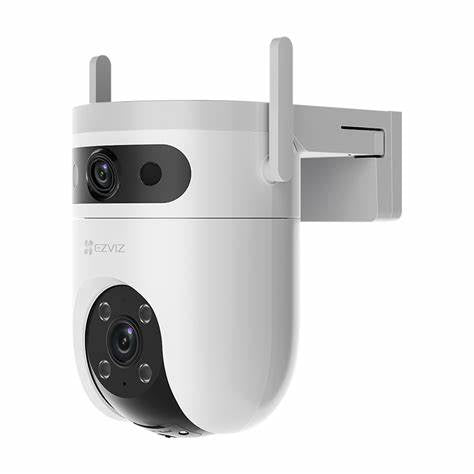

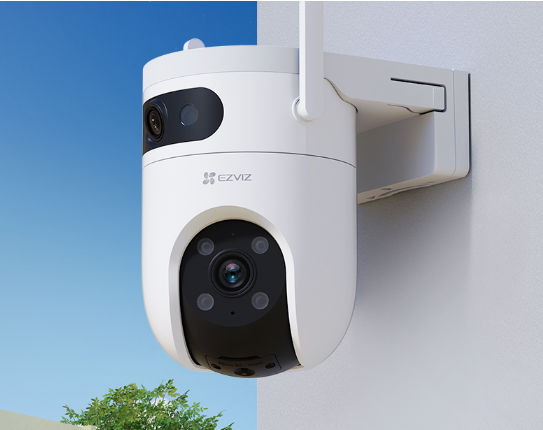

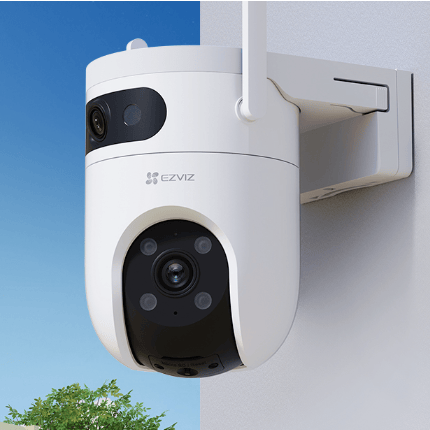

The EZVIZ H9c Dual 3K (model CS-H9C-R100-8G55WKFL) is an outdoor Wi-Fi camera with two 5MP lenses in one body: a fixed 2.8 mm wide-angle lens and a 6 mm pan & tilt lens. Each records at up to 2880 × 1620, the pan & tilt lens turns 350° and tilts 80°, and night vision reaches 30 m.

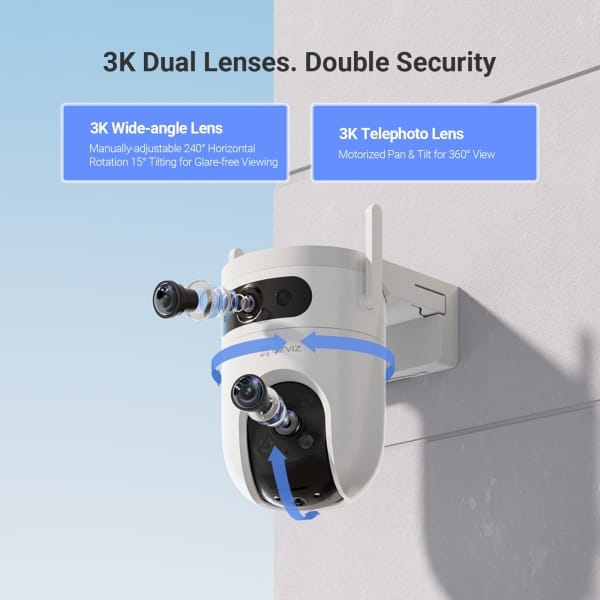

Two lenses, two views: The upper fixed lens covers a wide 110° horizontal area, while the lower pan & tilt lens gives a closer 56° view that you can turn toward any spot. The two lenses can watch different areas at the same time or work together, which reduces the need for a second camera.

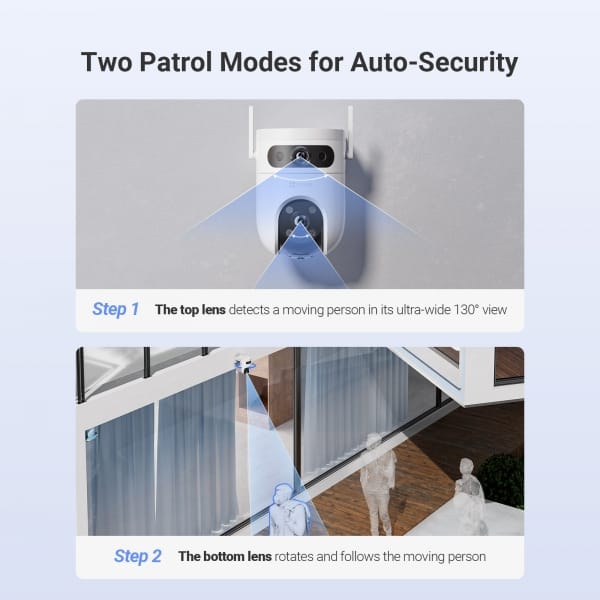

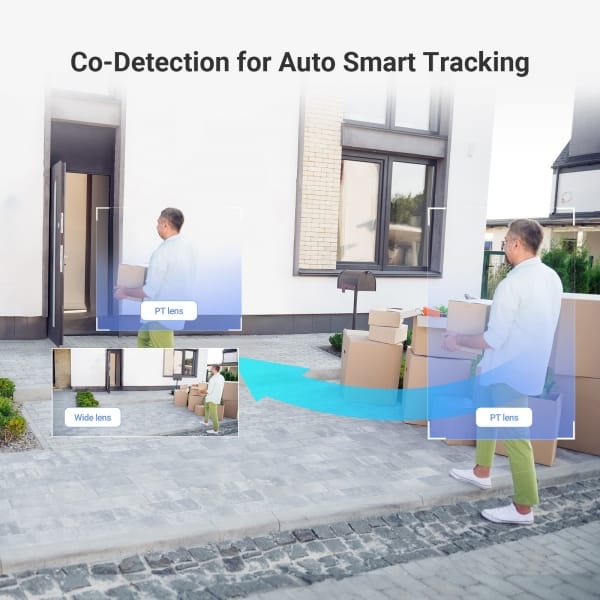

Tracking with both lenses: When the wide lens detects a person, the pan & tilt lens turns automatically to follow and record the person, even if the two lenses are pointed in different directions. Auto tracking and preset locations are supported.
AI human and vehicle detection: The camera recognises human shapes and vehicles, which cuts alerts caused by falling leaves or insects. You can also set a custom alert area so it only reacts to the part of the scene you care about.
Night vision up to 30 m: With IR night vision the camera sees up to 30 m (98 ft) in the dark.
Two-way talk: The built-in microphone and speaker let you hear and talk to people in front of the camera through the EZVIZ app.
Wi-Fi or wired connection: Connect over 2.4 GHz Wi-Fi or through the RJ45 Ethernet port. Recordings are saved on a microSD card of up to 512 GB or in EZVIZ CloudPlay cloud storage.
Good to know
The microSD card is not included and is sold separately; cloud storage is only available in certain markets. Wi-Fi works on 2.4 GHz only. EZVIZ lists a weatherproof design but no IP rating number. The camera is powered by the included DC 12V / 1.5A power adapter.
What's in the Box
H9c camera, power adapter, drill template, screw kit, waterproof kit, regulatory information, quick start guide.
Technical Specifications
| Model | CS-H9C-R100-8G55WKFL |
| Image Sensor | 1/2.7" progressive scan CMOS |
| Fixed Lens | 2.8 mm @ F1.6; 132° diagonal, 110° horizontal, 58° vertical |
| Pan & Tilt Lens | 6 mm @ F1.6; 64° diagonal, 56° horizontal, 29° vertical |
| Pan / Tilt Range | Pan 350°, tilt 80° |
| Minimum Illumination | 0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Night Vision | Up to 30 m (98 ft) |
| Max Resolution | 2880 × 1620 |
| Frame Rate | Max. 15 fps |
| Video Compression | H.265 / H.264 |
| Smart Functions | AI human shape detection, AI vehicle detection, motion detection, auto tracking, preset locations, customized alert area |
| Audio | Two-way talk |
| Wi-Fi | IEEE 802.11 b/g/n, 2.4 GHz |
| Wired Network | 1 × RJ45, 10/100 Mbps |
| Storage | microSD up to 512 GB; EZVIZ CloudPlay |
| Power | DC 12V / 1.5A |
| Power Consumption | Max. 12 W |
| Operating Conditions | -30°C to 50°C, humidity 95% or less (non-condensing) |
| Protection | Weatherproof design |
| Dimensions | 145 × 116 × 142 mm |
| Net Weight | 668 g |
| Certifications | CE / UKCA / WEEE / RoHS / REACH |
