EL3- Smart Security Wall-Light Camera Ezviz -H

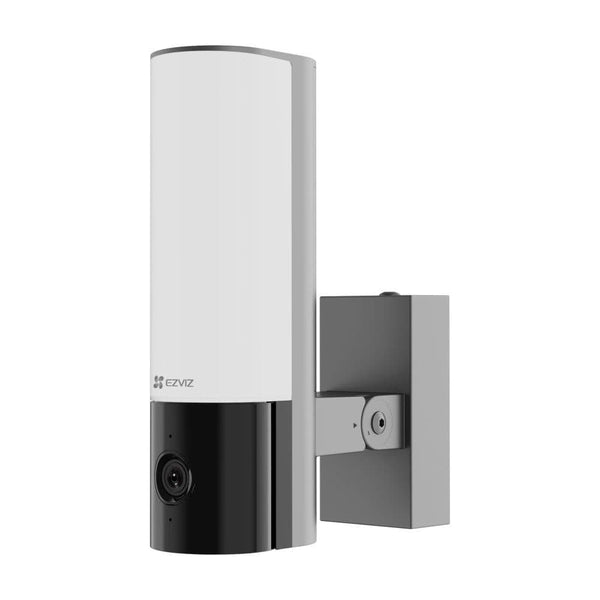

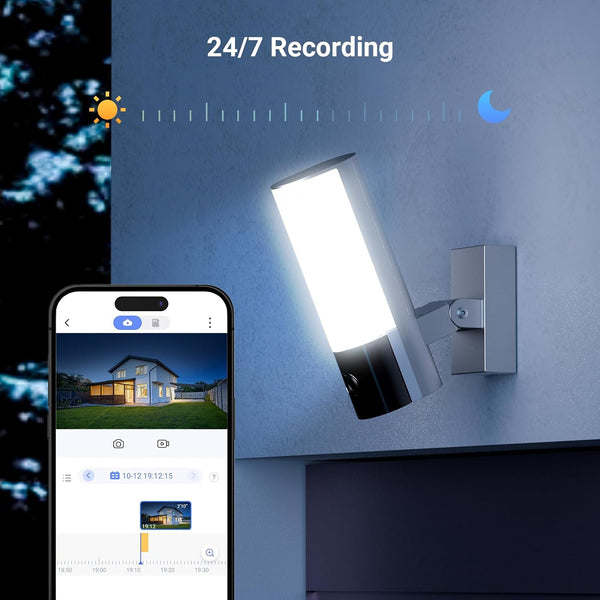

The EZVIZ EL3 (model CS-EL3) combines a 2K security camera with a 780-lumen adjustable wall light. It watches your yard, garage or front door with AI person and vehicle detection and license plate recognition, and lights up the area by schedule, from your phone, or when it detects someone arriving. It is a hardwired unit powered from 100-240 V mains.
780-lumen adjustable wall light: You can set the brightness and the color temperature from 3000K (warm) to 5700K (cold), so the light suits a welcoming path or a relaxed evening outside. Turn it on or off from the EZVIZ app, set time schedules, or let it light up automatically when it detects a person or a car.

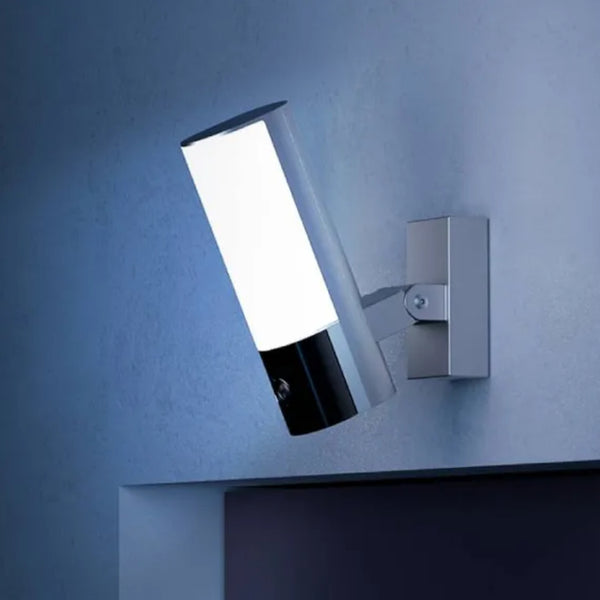

2K camera with motorized horizontal rotation: The camera records 2048 × 1536 (3MP) video. Its head turns up to 50° to each side from the center, and the foldable bracket can be tilted by hand, so you can widen the view and reduce blind spots.
Person and vehicle detection with auto-tracking: When a visitor or car comes in, the EL3 sends a notification to your phone and turns to keep it in view. You can set custom detection zones so only the areas you care about trigger alerts.
License plate recognition: The camera can read license plates and alert you, and you can register your own car to avoid unnecessary notifications. This is useful for keeping an eye on who parks in your private area.
Color night vision up to 15 m: With the light on, the camera shows color video at night; infrared night vision reaches up to 15 m. Color night vision turns on automatically when the light is at full brightness.
Siren, spotlight and two-way talk: When it detects an unauthorized entry, the EL3 can sound a 92 dB siren and flash its light to deter the intruder. The built-in microphone and speaker let you talk to visitors from your phone.
Wi-Fi 6 dual-band and storage: The EL3 connects over Wi-Fi 6 on 2.4 GHz or 5 GHz. Recordings can be saved on a microSD card of up to 512 GB or in EZVIZ CloudPlay cloud storage, with H.265 compression to save space.
Who it's for / Works with
Works with Google Assistant and Amazon Alexa, and is managed from the EZVIZ app.
Good to know
The EL3 is hardwired to 100-240 V mains power (recommended cable H05RN-F 3 × 1.0 mm²); it has no battery. You choose the Wi-Fi band (2.4 or 5 GHz) during setup and cannot change it afterwards. The siren and flashing light (active defense) are off by default and are enabled in the EZVIZ app. The microSD card is not included, and cloud storage is a subscription available only in some markets. The light source can only be replaced by the manufacturer, its service agent or a similarly qualified person.
Technical Specifications
| Model | CS-EL3 |
| Max. Resolution | 2K / 3MP (2048 × 1536) |
| Viewing Angle | 130° (D), 99° (H), 71° (V) |
| Pan / Tilt | Motorized pan up to 50° each side from center; manual tilt up to 55° |
| IR Range | Up to 15 m |
| Camera Protection | IP65 |
| Light | SMD LED, 780 lm (±10%), adjustable brightness |
| Color Temperature | 3000K-5700K, adjustable |
| Light Angle | 180° horizontal, 140° vertical |
| Light Control | Manual, schedule, person detection, vehicle detection |
| Smart Detection | AI person and vehicle detection, license plate recognition |
| Audio | Two-way talk with noise suppression; 92 dB siren |
| Video Compression | H.264 / H.265, max. 25 fps |
| Wi-Fi | Wi-Fi 6, 2.4 GHz and 5 GHz |
| Storage | microSD up to 512 GB; EZVIZ CloudPlay |
| Power | 100-240 V, 25 W |
| Operating Temperature | -30°C to 50°C, humidity 95% or less (non-condensing) |
| Dimensions | 60 × 136 × 229.7 mm |
| In the Box | EL3 camera, drill template, L-shaped wrench, wall bracket, bracket screw, buckle, screw kit, regulatory information, quick start guide |
📄 Datasheet: Download the official EZVIZ EL3 datasheet (PDF)
