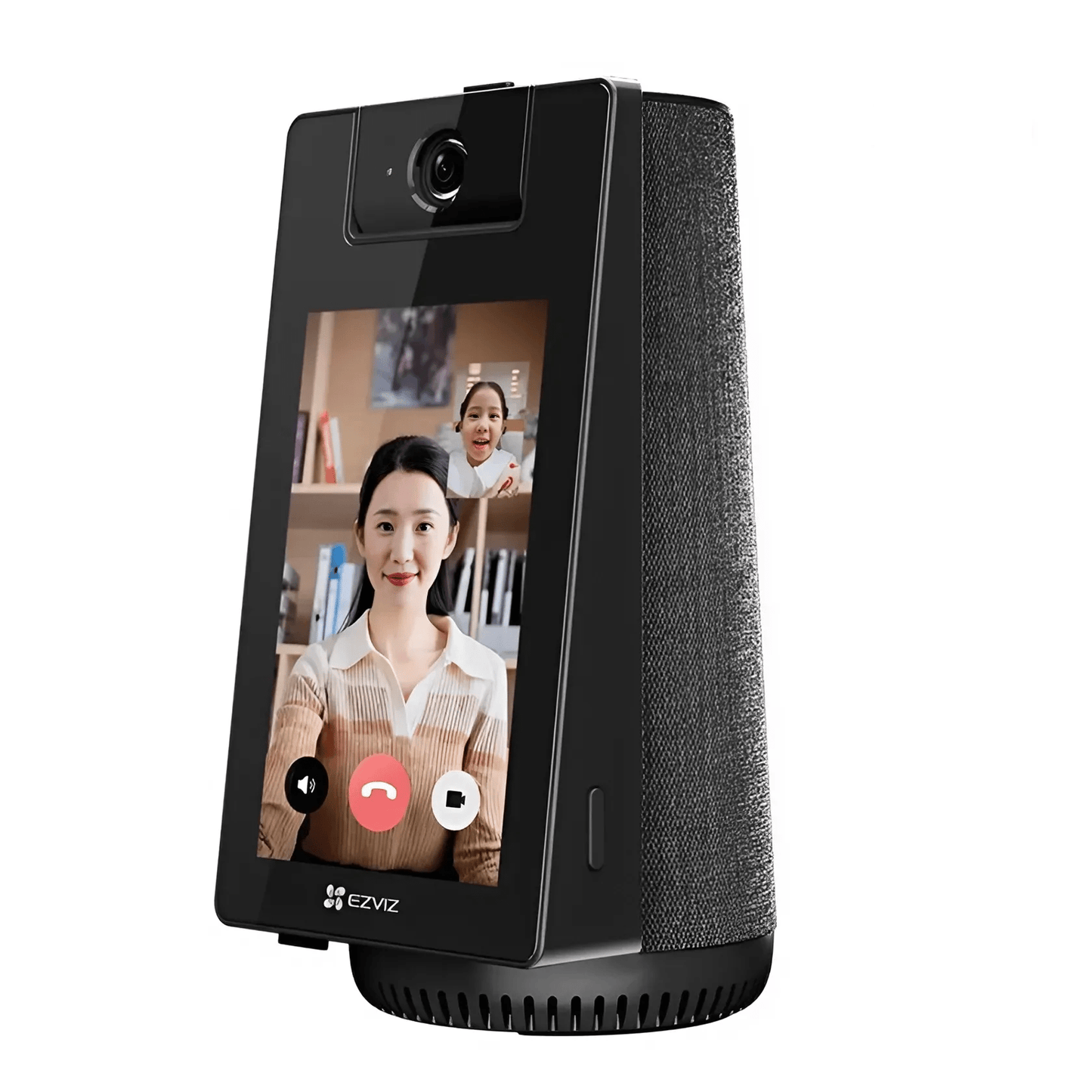

EZVIZ S10 2K+ Smart Video Calling Camera 4mm Lens
EZVIZ S10 2K+ Smart Video Calling Camera 4mm Lens
Couldn't load pickup availability
EZVIZ S10 2K+ Smart Video Calling Camera 4mm Lens
Description:

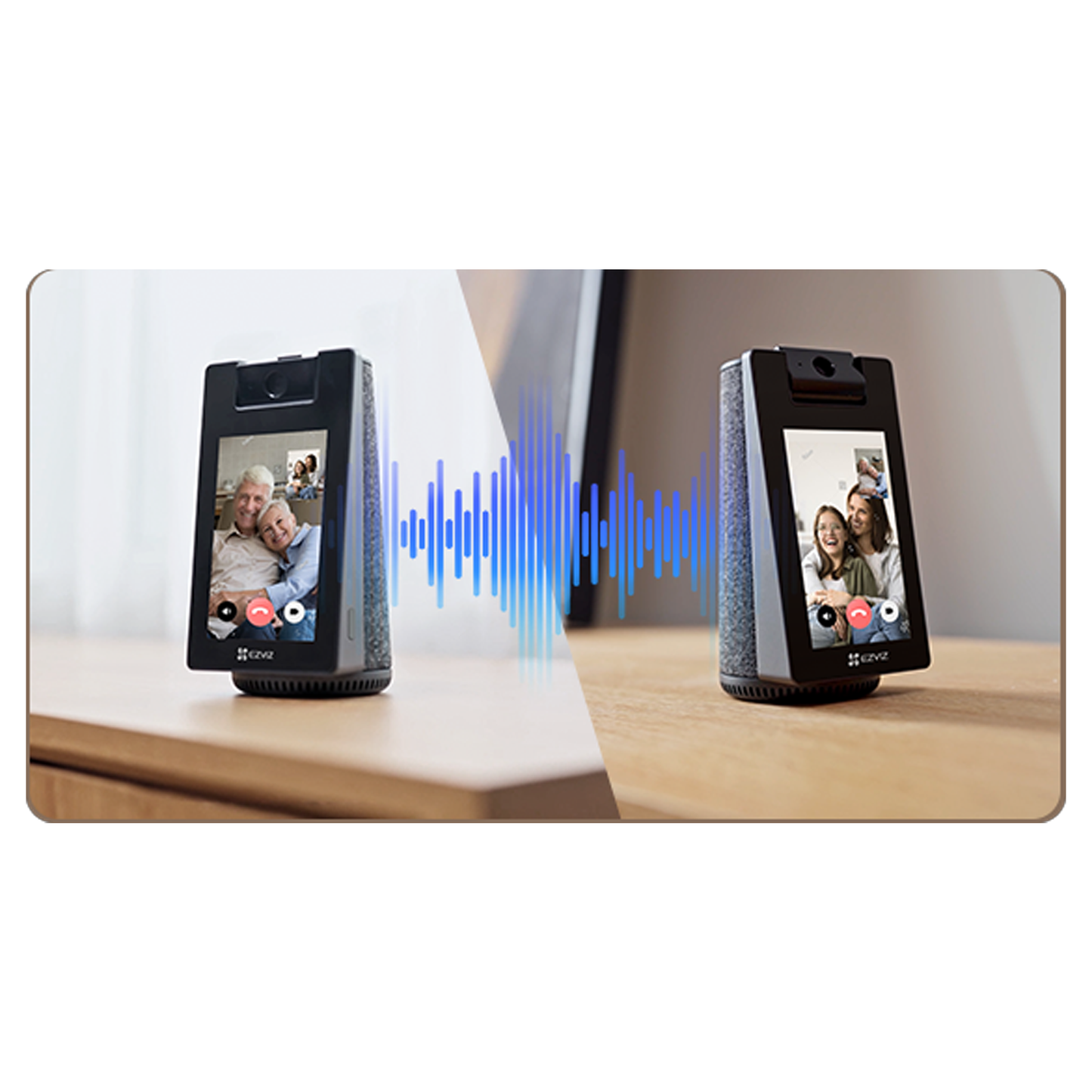

Introducing the S10, EZVIZ‘s first smart video calling camera that makes connection closer and protection warmer. With the intuitive 4-inch touch screen, even the least tech-savvy can effortlessly make calls with their family. Beyond video calling, it helps you keep an eye on your family with wide coverage and clear images. And there’s more – it stores precious memories as a digital photo album, and adds joy to your space with high-quality sound from its Bluetooth speaker.
A next-level indoor camera does more than protects, but also cares
Whether you need to check on loved ones or keep an eye on pets, the S10's clear view and all-around coverage will help you get the job done. Its flexible rotation lets you adjust its perspective to capture what you want — so nothing is ever out of sight.
The S10 offers multiple simple ways to initiate calls, making it easy for the whole family to use. You can tap the call button directly on the device, select a contact from the list, or use the EZVIZ App to start a call from your phone.
Easily customize each call button with a designated person, tailor your contact list to keep loved ones close, and set your rejection list to avoid unwanted interruptions. It’s all about making your calling smoother and more personal, just the way you want it.
With the S10, you can enjoy smooth video calls without worrying about adjusting the camera—it's always perfectly framed. When
Enjoy your video calls in comfort. The S10's vibrant screen makes every video call feel natural and shows your conversation partner in sharp detail. Designed with a thoughtful tilt, it naturally adjusts to your view so you can chat, laugh, and stay close to loved ones without straining your posture.
Upload your family photos and turn the S10 into a personalized digital album, always ready to display your cherished memories. With its sleek, modern design, the S10 complements any home decor, adding a touch of style to your living space while keeping your memories close at hand.
400 ml independent sound chamber
1.5-inch full-range speaker unit
Fabric-wrapped design
Connection for boosted performance
Set up the camera network, either wired or wirelessly. You can connect the camera to either 2.4 or 5 GHz2 band to ensure a strong Wi-Fi signal.
Vivid night vision
Say goodbye to blurred video clips at night. The camera renders vivid, clear details to protect your sweet dreams with IR night vision.
Concealed cable management
The camera has a concealed cable design, which ensures both clean look and stable rotation. You can hide the power cable perfectly under the camera.
Hands-free control
With integration to your voice assistants, you can pull up the video feed by simply saying “Alexa” or “Hey Google.”³
Dual video storage options
Capture and secure important moments or unforgettable memories on a large 512 GB microSD card, or by subscribing to the EZVIZ CloudPlay.⁴
H.265 video technology
H.265 creates a smoother viewing experience while only using about 50% of the data storage space required by cameras with H.264.⁵
Learn more about our security practices >
- The S10 camera only supports auto smart tracking on detected humans based on its AI-powered human shape algorithm.
- You will need to choose the Wi-Fi frequency band during the device setup process. Once the choice is made, you will not be able to change it to another frequency band.
- Amazon Alexa and Google Assistant are not available in certain languages and countries.
- The local storage card must be purchased separately. The cloud storage service is only available in certain markets. Please verify the availability before making a purchase.
- Data from EZVIZ Lab’s test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, and other environmental factors.
⚙️ Specifications
Model
-
model: CS-S10-R100-1M4WFK
📷 Camera
-
Image Sensor: 4mm@F1.6 Progressive Scan CMOS
-
Shutter Speed: Self-adaptive shutter
-
Lens: 4mm
-
View Angle: 100°(Diagonal), 84° (Horizontal), 46°(Vertical)
-

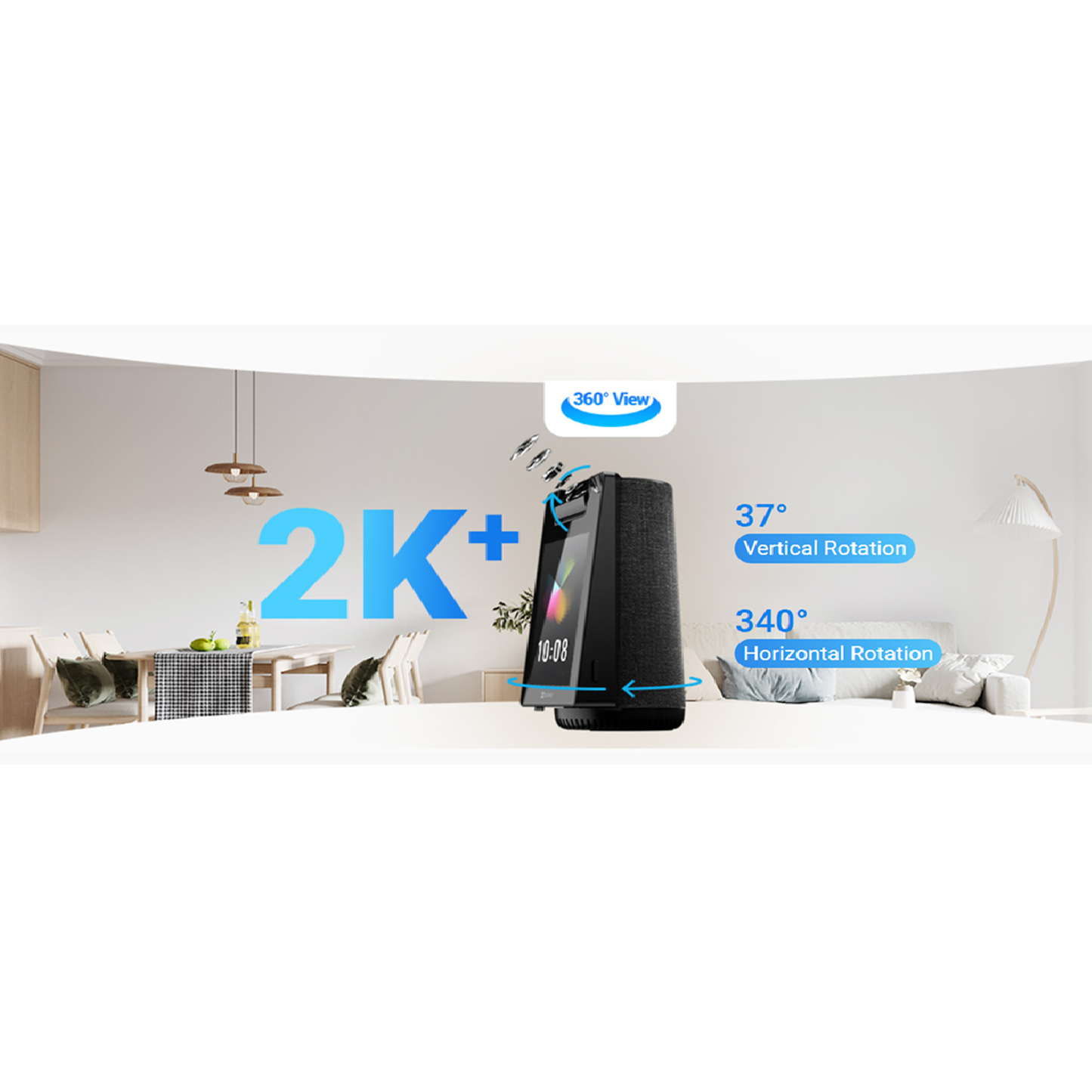

PT Angle: 0-340° Horizontal, 37° Vertical
-
Lens Mount: M12
-
Day & Night: IR-cut filter with auto-switching
-
DNR: 3D DNR
-
Privacy: Manual privacy masking
🖥 Screen and Audio
-
Screen: 4-inch touch screen (480 × 800)
-
Screen Tilt Angle: 7° tilt angle vertically
-
Audio Capture: 2-microphone array
-
Speaker: 3W
🎥 Video
-
Max. Resolution: 2K+(1504 × 2672)
-
Frame Rate: Self-adaptive during network transmission
-
Video Compression: H.264 / H.265
-
Video Bit Rate: Adaptive bit rate
📡 Wireless Transmission
-
Standard: IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
-
Frequency Range:
-
2.4G: 2400~2483.5MHz
-
5G: 5150MHz-5350MHz; 5470MHz-5725MHz
-
-
Channel Bandwidth: Supports 2.4G 20MHz, 5G 20/40/80MHz
-
Security: WPA/WPA2, WPA-PSK/WPA2-PSK
-
Transmission Rate:
-
11b:11M
-
11g: 54M
-
11n:MCS7
-
11a:54M
-
11ac:MCS9
-
11ax:MCS11
-
-
Output Power (EIRP):
-
2400MHz-2483.5: ≤20dBm (EIRP);
-
5150MHz-5350MHz: ≤23dBm (EIRP);
-
470MHz-5725MHz: ≤30dBm (EIRP)
-
-
Antenna Gain:
-
2.4G: 3.1dBi
-
5G: 4.2dBi
-
⚙️ Function
-
Smart Alarm:
-
PIR motion detection
-
AI-powered human shape detection
-
AI-powered pet detection
-
Loud noise detection
-
-
Wi-Fi Pairing: Bluetooth paring
-
Protocol: EZVIZ Cloud Proprietary Protocol
-
Interface Protocol: EZVIZ Cloud Proprietary Protocol
🔌 Interface
-
Storage: Supports microSD card (max. 512 GB)
-
Power: Type-C
-
Wired Network: No
🧾 General
-
Operating Conditions:
-10°C to 40°C (14°F to 104°F )
Humidity 95% or less (non-condensing) -
Power Supply: DC 5V / 2A
-
Power Consumption: Max. 8 W
-
IR Range: Max. 10 meters (32.8ft)
-
Dimensions: 75 × 75 × 146 mm (2.9 × 2.9 × 5.7 inch)
-
Packaging Dimensions: 160 × 98 × 172 mm (6.3 × 3.8 × 6.7 inch)
-
Net Weight: 403 g (14.2 oz)
📦 In the box
-
S10 Camera
-
Power Adapter
-
Power Cable
-
Regulatory Information × 2
-
Quick Start Guide
✅ Certifications
-
Certifications: CE / REACH / WEEE / RoHS
