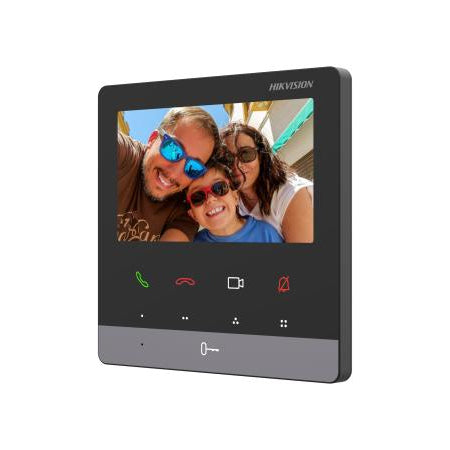

Hikvision IP Intercom Video Indoor Unit 4" Wired/WiFi | DS-KH6110-WE1
The Hikvision DS-KH6110-WE1 is an IP network video indoor station with a 4.3-inch colour touch screen (480 × 272). It connects by network cable or 2.4 GHz Wi-Fi, runs on standard PoE or 12 VDC, and works with the Hik-Connect app for control from your phone.

4.3-inch touch screen: The capacitive 480 × 272 touch screen shows visitors and live video, and the 9 touch buttons give quick access to calls and other functions.
Wired or Wi-Fi: Use the RJ45 port (100 Mbps) or connect over Wi-Fi 802.11 b/g/n at 2.4 GHz. Wi-Fi helps where pulling a new network cable to the monitor is difficult.
Hik-Connect app: With the Hik-Connect app you can receive visitor calls and control the system from your smartphone.

Live view: You can view live video from the door stations and the cameras linked to the system.
Custom touch buttons: Four of the touch buttons can be customised, so each household sets them to its own habits.
Clear two-way audio: The built-in microphone and loudspeaker use noise suppression and echo cancellation, and the volume is adjustable.
Who it's for / Works with
This is the indoor station supplied in the Hikvision DS-KIS606-P video intercom kit, so it can also be added as an extra monitor to that kit. Up to 16 indoor extensions can be linked.
Good to know
Wi-Fi is 2.4 GHz only.
A PoE switch or 12 VDC power supply is needed when it is bought on its own; it is not included.
Technical Specifications
| Model | DS-KH6110-WE1 |
| Screen | 4.3-inch colour TFT, capacitive touch |
| Resolution | 480 × 272 |
| Operation | Touch screen with 9 touch buttons (4 customisable) |
| Audio | Built-in microphone and loudspeaker, noise suppression and echo cancellation |
| Audio Compression | G.711 U, G.711 A |
| Event / Notice Capacity | 200 / 200 |
| Linked Indoor Extensions | Up to 16 |
| Protocols | TCP/IP, SIP, RTSP |
| Network | 1 × RJ45, 100 Mbps |
| Wi-Fi | 802.11 b/g/n, 2.4 GHz |
| Alarm Inputs | 4 |
| Power Supply | IEEE 802.3af PoE or 12 VDC |
| Power Consumption | ≤ 4 W |
| Installation | Wall or table mounting |
| Dimensions | 120 × 120 × 21 mm |
| Weight | 197.8 g (without package) |
| Operating Temperature | -10 °C to 50 °C |
| App | Hik-Connect |
📄 Datasheet: Download the official Hikvision DS-KH6110-WE1 datasheet (PDF)
