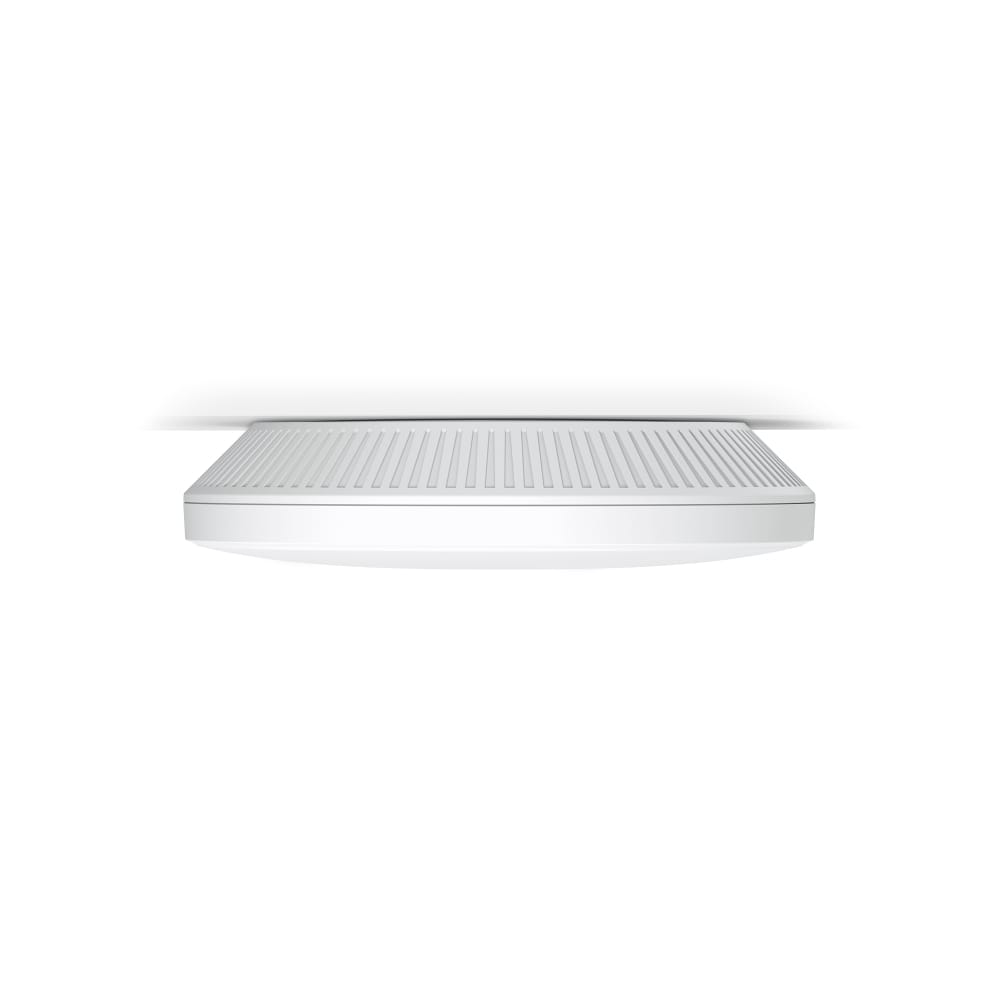

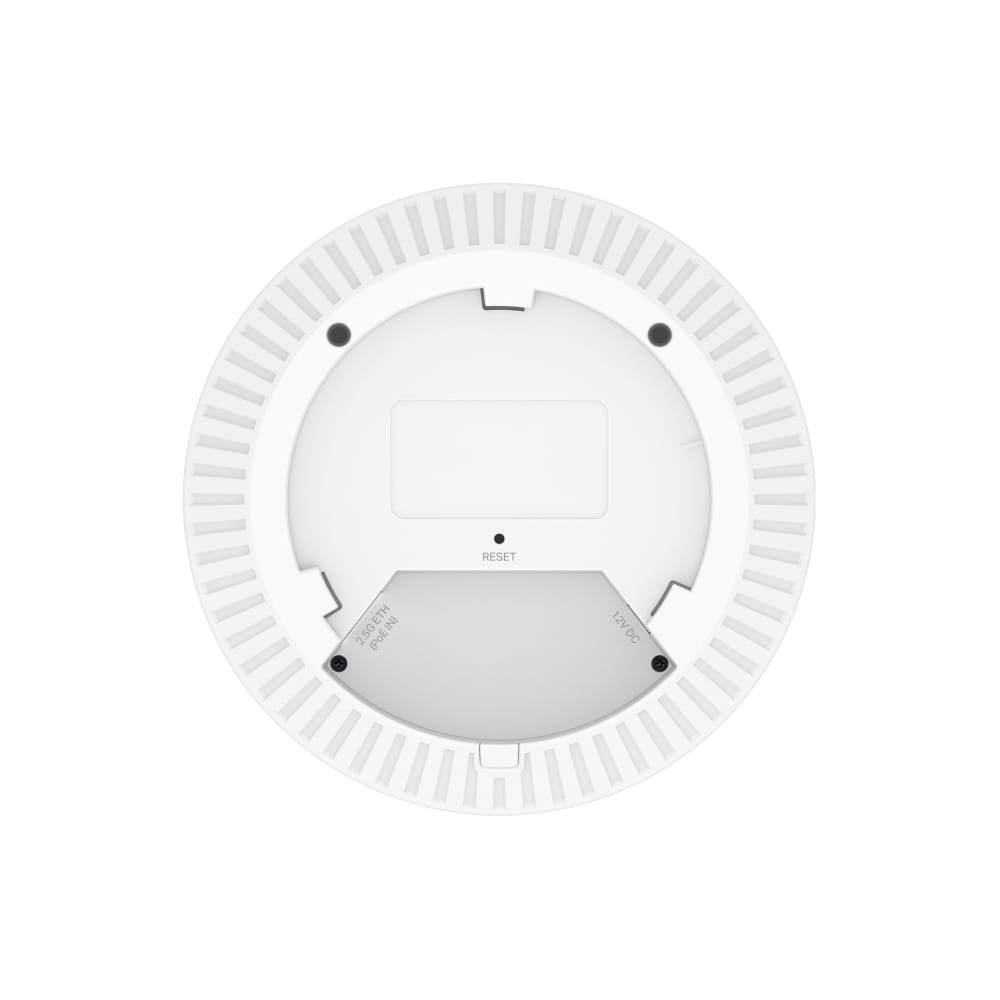

TP-Link Omada EAP723 BE3600 Wi-Fi 7 Access Point
The TP-Link Omada EAP723 is a BE3600 dual-band Wi-Fi 7 ceiling-mount access point for business networks. It delivers up to 2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz, connects through a 2.5G Ethernet port, and can be powered by 802.3at PoE or a 12V DC adapter.

BE3600 dual-band Wi-Fi 7: Wi-Fi 7 features such as 4K-QAM, 160 MHz channels (EHT160) and OFDMA increase the data carried per transmission and let the access point serve many devices efficiently. TP-Link rates it for 250+ concurrent clients and about 140 m² of coverage in lab conditions.
2.5G Ethernet port: A single 2.5 Gbps port gives the access point more uplink bandwidth than a standard Gigabit port, so the faster Wi-Fi 7 link is less limited by the cable connection to the switch.
PoE or DC power: Power and data can come over one Ethernet cable from an 802.3at PoE+ switch, which simplifies ceiling installation. A 12V/1.5A DC input is also available for places without PoE; the DC adapter is not included.

Omada SDN management, Mesh and roaming: Manage it from the Omada app, an Omada Hardware or Software Controller, or Omada Central in the cloud. With a controller it supports Omada Mesh, seamless roaming, captive portal and cloud access, plus band steering, load balancing and up to 16 SSIDs.
Business security: It supports WPA, WPA2 and WPA3 Personal/Enterprise, VLANs, wireless client isolation, access control, MAC filtering (up to 4,000 entries) and rogue AP detection.
Who it's for / Works with
Offices, shops, hotels and other indoor spaces that need ceiling, wall or junction-box mounted Wi-Fi 7, managed together with other Omada access points, switches and gateways.
Good to know
No power adapter is included; use an 802.3at PoE switch or injector, or a 12V/1.5A DC adapter (2.1 mm / 5.5 mm center-positive plug). Mesh, seamless roaming, captive portal and cloud access require an Omada controller. Wi-Fi 7 features work only with clients that also support them. This is the BE3600 version (2882 Mbps on 5 GHz); the US version of the EAP723 is a different BE5000 model.
Technical Specifications
| Model | EAP723 (BE3600) |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) |
| Coverage / Clients | 140 m² (lab), 250+ concurrent clients |
| Interface | 1× 2.5G Ethernet port |
| Power Supply | 802.3at PoE or 12V/1.5A DC (adapter not included) |
| Antennas | 2.4 GHz: 2× 4.0 dBi; 5 GHz: 2× 5.0 dBi |
| Wireless Functions | 4K-QAM, EHT160, OFDMA, Mesh, Seamless Roaming, Band Steering, Load Balance, Beamforming, Airtime Fairness, 16 SSIDs (8 per band) |
| Wireless Security | WPA/WPA2/WPA3-Personal and Enterprise, captive portal, VLAN, client isolation, rogue AP detection |
| Management | Omada app, Omada Hardware/Software Controller, Omada Central (cloud), web, SNMP v1/v2c/v3 |

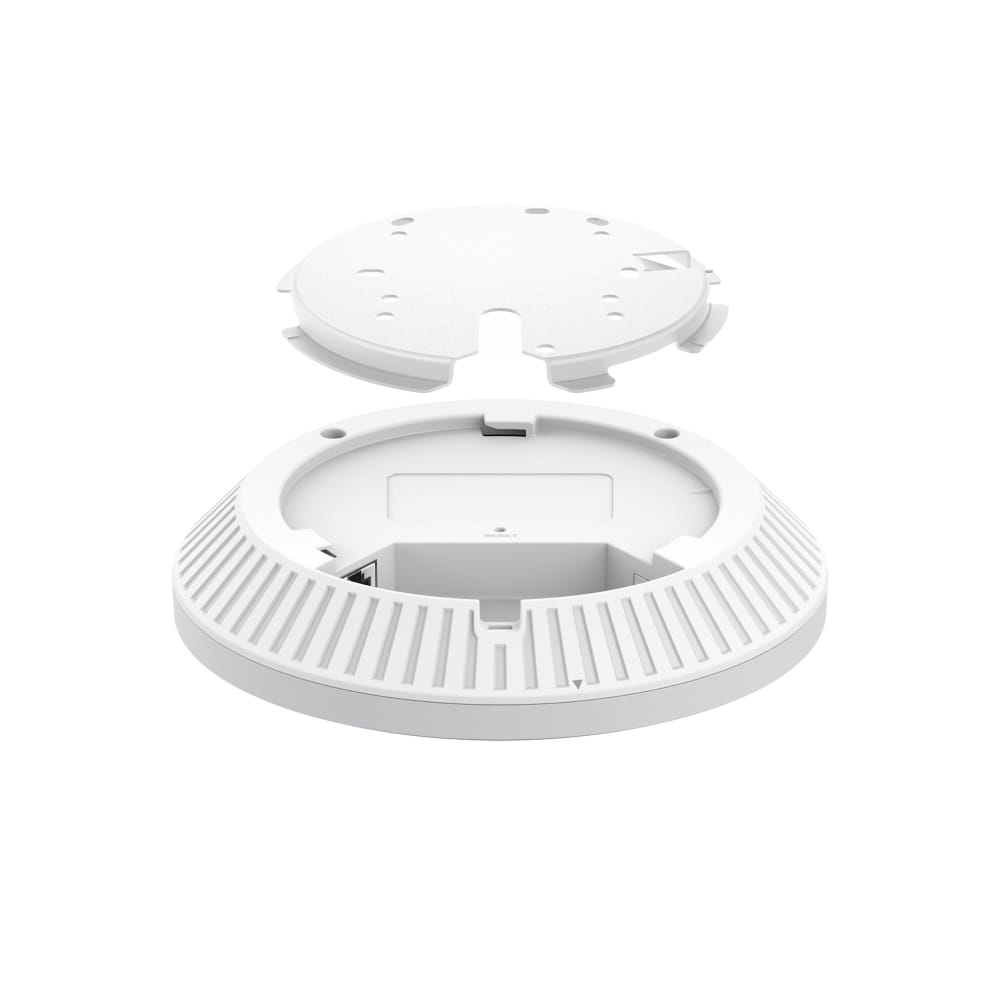

| Mounting | Ceiling / wall / junction box (kits included) |
| Dimensions | 160 × 160 × 36.7 mm |
| Operating Temperature | 0 °C to 40 °C |
| Package Contents | EAP723, installation guide, ceiling/wall/junction box mounting kit |
📄 Datasheet: Download the official TP-Link EAP723 (V2) datasheet (PDF)
