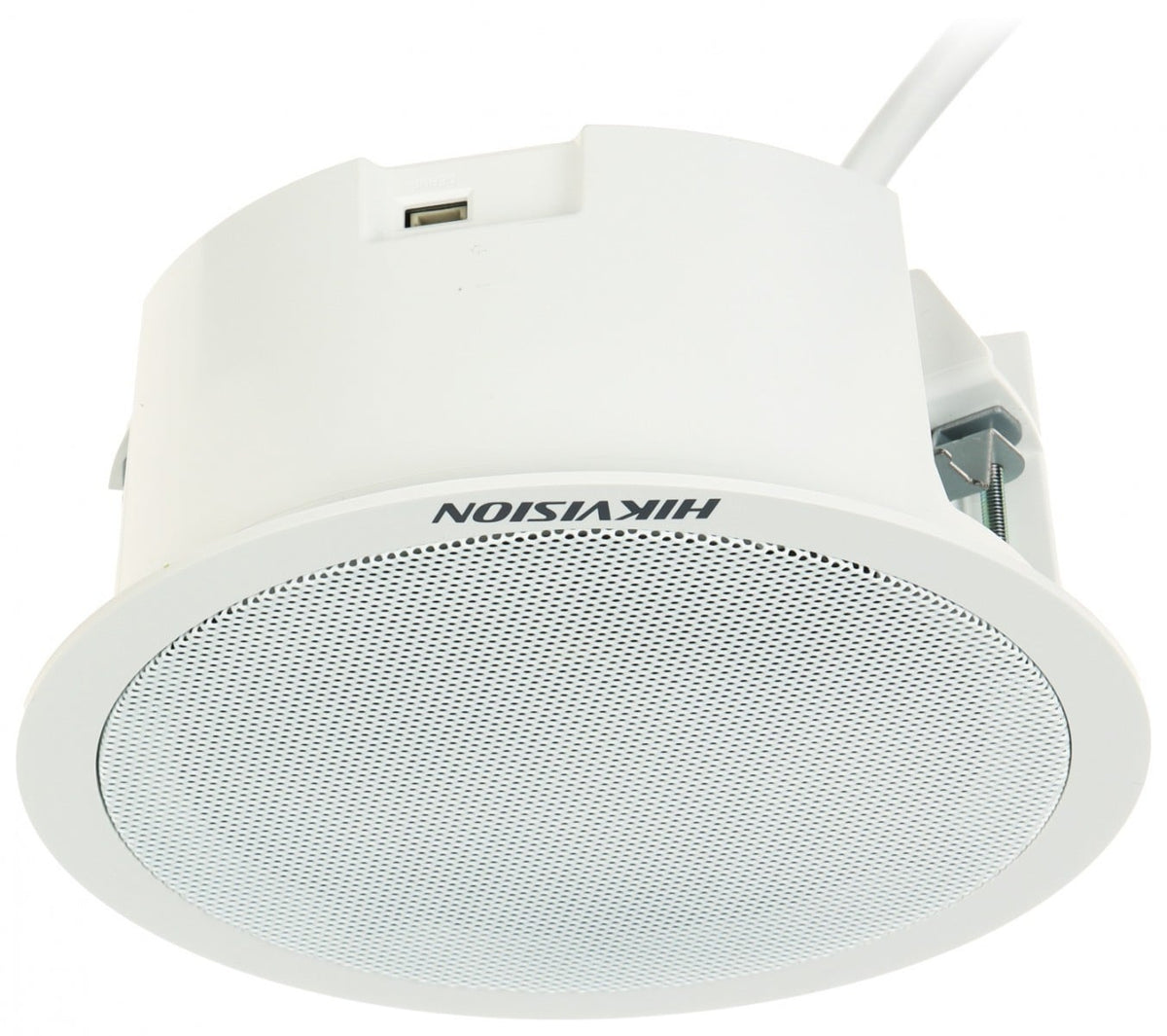

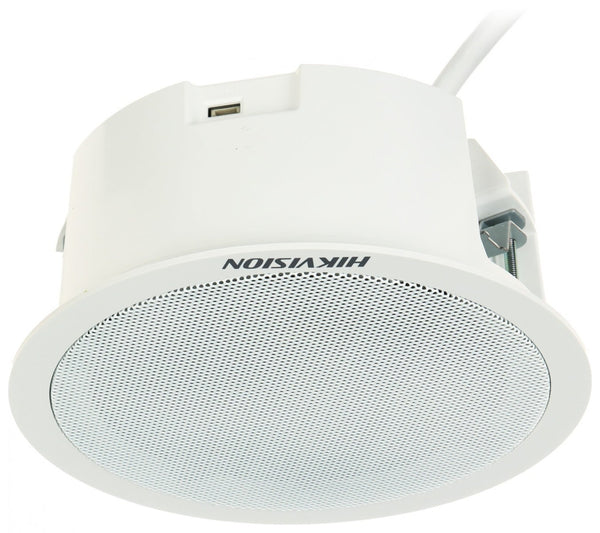

Hikvision-C 6W PoE Network Ceiling Speaker | DS-QAZ1206G1-BE
Hikvision-C 6W PoE Network Ceiling Speaker | DS-QAZ1206G1-BE
Couldn't load pickup availability
Hikvision 6W PoE Network Ceiling Speaker | DS-QAZ1206G1-BE
The Hikvision DS-QAZ1206G1-BE is a 6 W network (IP) ceiling speaker that connects directly to your network and is powered over PoE. It delivers up to 100 dB SPL with a 300 Hz to 15 kHz frequency response from its 5″ full-range driver, stores audio files on its built-in 4 GB eMMC and can drive a maximum of 1 secondary speaker to extend coverage.
Color: White
Key Features:
IP broadcasting with three modes: The speaker plays regular (scheduled), live and emergency broadcasts sent over the IP network. Many speakers can be managed together from a remote platform over a local or public network, or a single unit can be set up through its own web interface.
Built-in storage and text-to-speech: A built-in 4 GB eMMC keeps up to 1 GB of audio files on the speaker itself, in MP3 or WAV format. Text-to-speech (TTS) lets you broadcast typed text with a male or female voice.
Alarm inputs with audio linkage: Two alarm inputs, an arming schedule and audio linkage let a connected sensor or contact trigger a stored message automatically.
Add secondary speakers to cover more area: A fixed-resistance 8 Ω output (Phoenix terminal) drives a maximum of 1 secondary speaker rated 6 W / 8 Ω, so you can extend sound coverage without running another network cable.
One cable for power and data: Power comes over PoE (IEEE 802.3at) from the same Ethernet cable that carries the audio, or from a 12 VDC / 1.5 A supply.
Stable and secure system: Industrial-grade dual-core chips and NOR Flash + eMMC dual storage keep a backup copy of the system. Secure startup, login locking, password-complexity prompts and security audit logs help protect the device on the network.
Who it's for / Works with: It can feed a maximum of 1 secondary speaker rated 6 W / 8 Ω, such as the Hikvision DS-QAZ0206G1-S ceiling secondary speaker, whose datasheet carries the same wiring note.
Good to know: Needs a PoE+ (802.3at) switch or injector, or a separate 12 VDC / 1.5 A power supply; a power adapter is not listed in the packing list. The fixed-resistance output supports a maximum of 1 secondary speaker only. Mounting needs a 160 mm ceiling hole.
Technical Specifications:
| Model | DS-QAZ1206G1-BE |
| Type | Network ceiling speaker (primary) |
| Rated Power | 6 W |
| Impedance | 8 Ω |
| Speaker Unit | 5″ full-range driver × 1 |
| Sensitivity (1 m, 1 W) | 93 dB |
| Max. Sound Pressure | 100 dB SPL |
| Direction | All directions |
| Frequency Response | 300 Hz to 15 kHz |
| SNR | 82 dB |
| Audio Algorithms | AEC, AGC, ANS, DRC |
| Audio Codecs | G.711 µ-law (64 Kbps), G.711 A-law (64 Kbps), MP3 (128 Kbps) |
| Audio File Format | MP3, WAV |
| Broadcast Modes | Regular, live and emergency broadcast |
| Speech Synthesis (TTS) | English, male and female voices |
| NTP Timing | Supported |
| Network Protocols | IPv4, HTTP, HTTPS, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH |
| API | ISAPI, ISUP |
| Communication | Wired network and Bluetooth 5.0 |
| Ethernet | 1 × RJ45 10/100 Mbps |
| Local Storage | Built-in 4 GB eMMC (1 GB for audio files) |
| Alarm Input | 2 |
| Audio In | 1 × 3.5 mm audio interface |
| Audio Out | 1 × fixed-resistance output, Phoenix terminal, 8 Ω (supports a maximum of 1 secondary speaker, 6 W / 8 Ω) |
| Power | PoE (802.3at) or 12 VDC / 1.5 A |
| Material | Body: plastic; mesh cover: metal |
| Dimensions | Ø 179 mm × 73.5 mm (ceiling hole: 160 mm) |
| Weight | Approx. 0.3 kg |
| Operating Temperature | -10 °C to 50 °C |
| Operating Humidity | Below 90% (no condensation) |
| Color | White |
| Packing List | Device × 1, mesh cover × 1, regulatory compliance and safety information × 1 |
📄 Datasheet: Download the official Hikvision DS-QAZ1206G1-BE datasheet (PDF)
