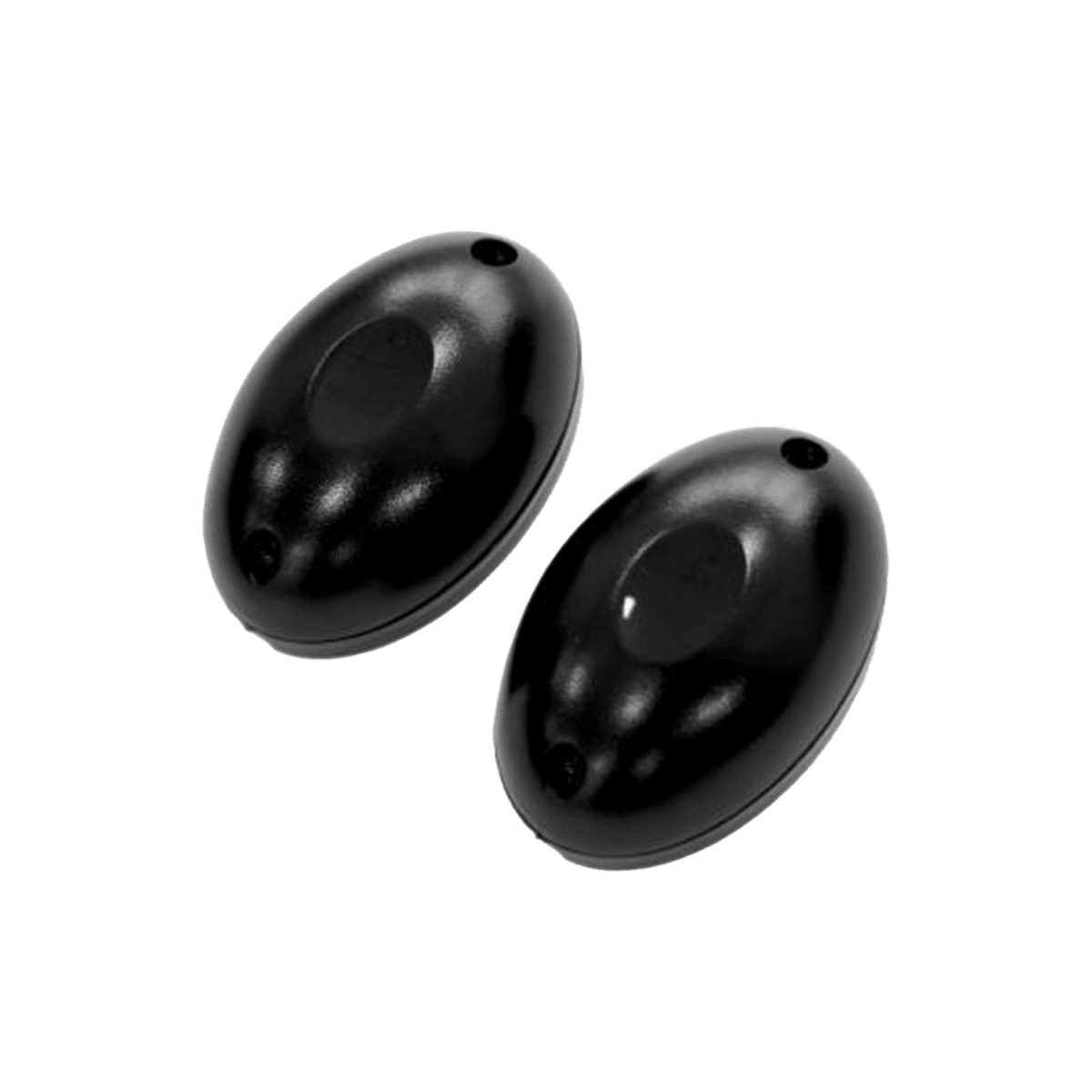

HIKVISION DS-TMG110 Infrared Beam Sensor

HIKVISION DS-TMG110 Infrared Beam Sensor

The Hikvision DS-TMG110 is an infrared beam sensor for barrier gates. It detects pedestrians and vehicles in the lane and helps stop the boom pole from falling while they pass. It runs on 12 to 24 VDC and each unit measures only 76 × 49 × 30 mm.

Protection under the boom: The sensor detects pedestrians and vehicles passing through the gate and prevents the boom pole of the barrier gate from falling while they are there. This lowers the risk of the boom hitting a car or a person.

Low power: Hikvision lists a supply of 12 to 24 VDC and a current of 50 mA or less. This is a light load that can be planned into a barrier gate installation easily.

Compact units: Each unit is 76 × 49 × 30 mm and weighs 0.0715 kg. The small size makes the sensor easy to mount at the sides of the lane.

Simple installation and maintenance: Hikvision designed the sensor for convenient installation and maintenance with little manual work, so fitting it to a gate takes less time.

Who it's for / Works with

Hikvision's barrier gate datasheets (for example DS-TMG320, DS-TMG420 and DS-TMG520) list an interface for IR / vehicle detector / radar anti-fall devices.

Good to know

• Hikvision lists the available model as DS-TMG110(T/R).
• The official datasheet does not state a detection distance, response time or IP rating, so they are not listed here.
• The barrier gate is not included; this listing is the sensor only.
