TP-Link Omada 5-Port Gigabit Outdoor PoE Switch, 1-Port PoE++ In and 4-Port PoE+ Out | SG2005P-PD

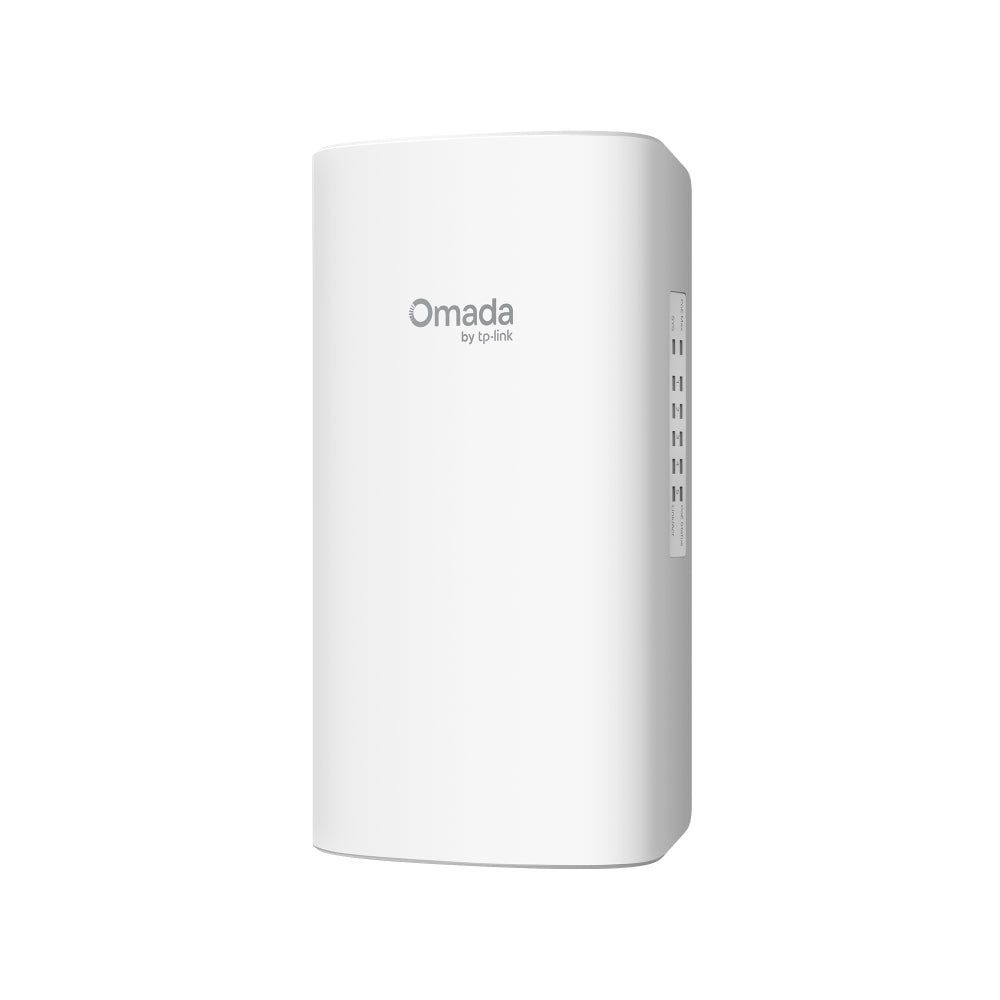

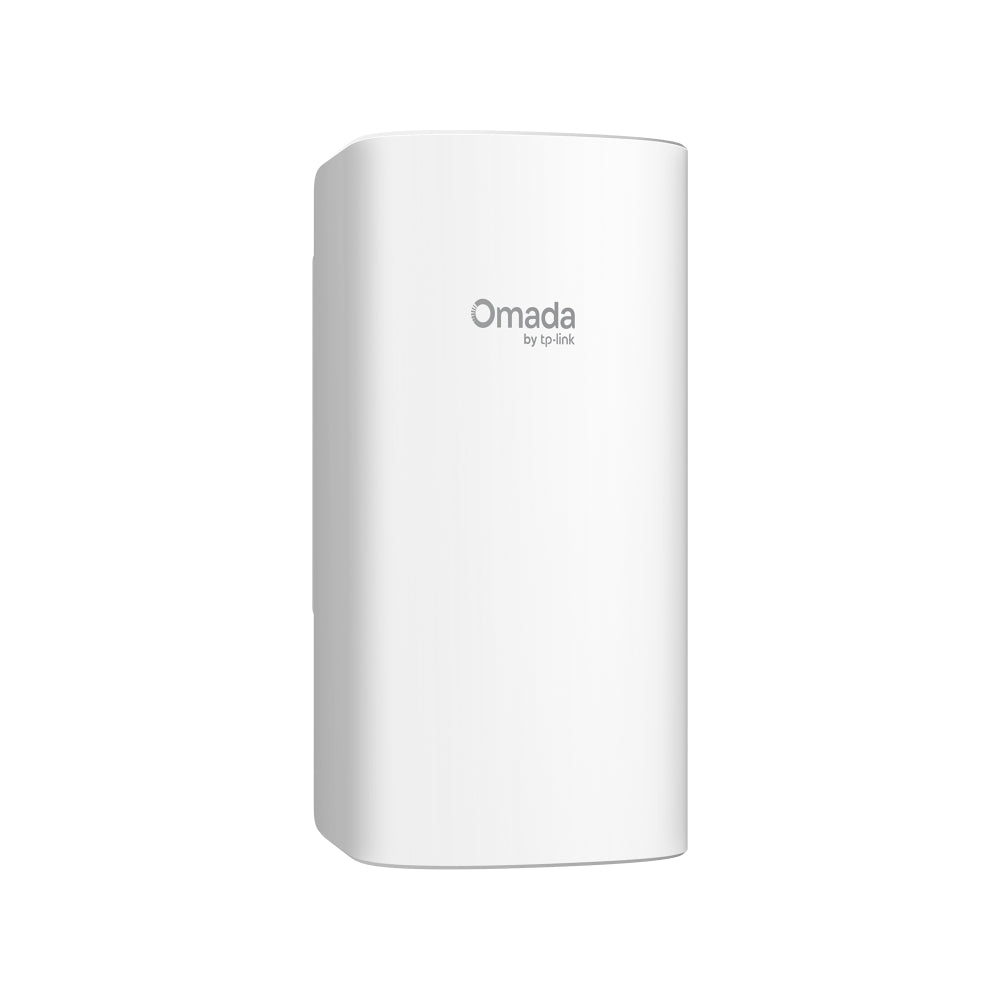

The TP-Link Omada SG2005P-PD is a weatherproof (IP66) 5-port Gigabit smart switch that is itself powered by PoE: one Gigabit PoE In port accepts 802.3af/at/bt power, and four Gigabit PoE+ Out ports power cameras or access points. It doubles the PoE reach from 100 m to 200 m at Gigabit speed, with no mains socket needed at the installation point.
PoE++ In, 4× PoE+ Out: Port 5 takes power from a PoE switch or injector (802.3af/at/bt) and ports 1–4 output 802.3af/at PoE+. The output budget depends on the source: 64 W with 802.3bt Type 4 (90 W), 44 W with Type 3 (60 W), 19 W with 802.3at and 6 W with 802.3af.
200 m Gigabit PoE: Placed in the middle of a run, it extends the PoE source-to-device distance from 100 m to 200 m with no speed loss, ideal for long-range cameras and outdoor APs.
Built for Outdoors: IP66 dustproof and waterproof, UV-resistant casing, operating from -40 to 60 °C, with ±6 kV lightning protection. Wall and pole mounting kits are included.
Omada Smart Switch Features: Static routing, ACL, QoS, 802.1Q VLAN, IGMP/MLD Snooping, LACP and STP, managed through the web/CLI or centrally through an Omada controller with cloud access and the Omada app.
Who it's for / Works with: Outdoor surveillance and Wi-Fi projects (poles, junction boxes, building exteriors) where there is no power outlet and the cable run is longer than 100 m.
Good to know: The switch has no power adapter: it must be powered by a PoE source (PoE switch or injector, not included). The output budget depends on that source. Omada centralized management requires an Omada controller.
Technical Specifications
| Specification | TP-Link SG2005P-PD |
|---|---|

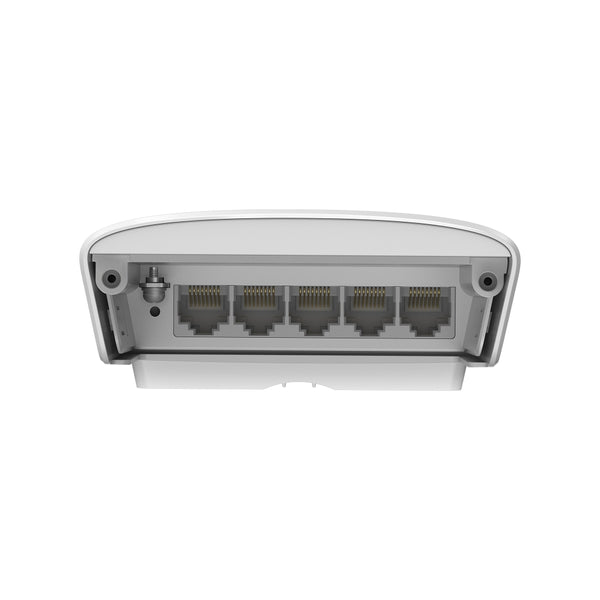

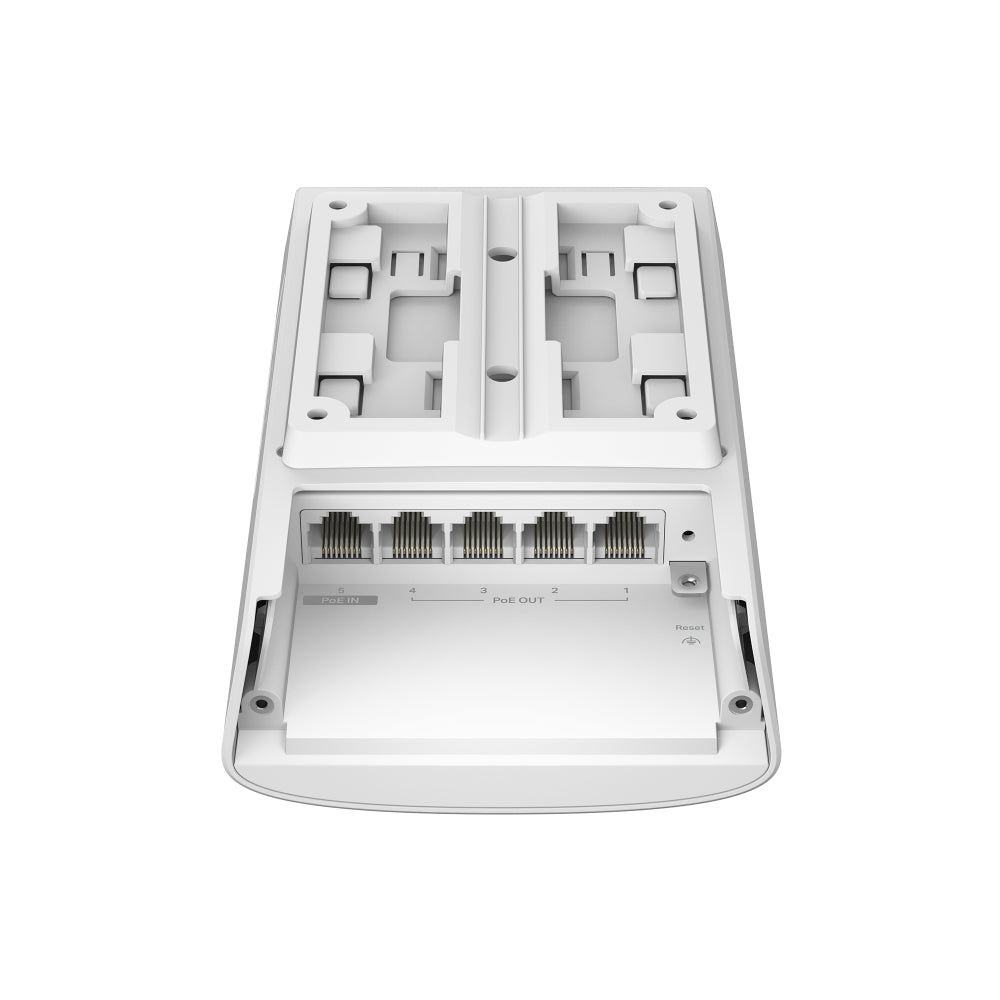

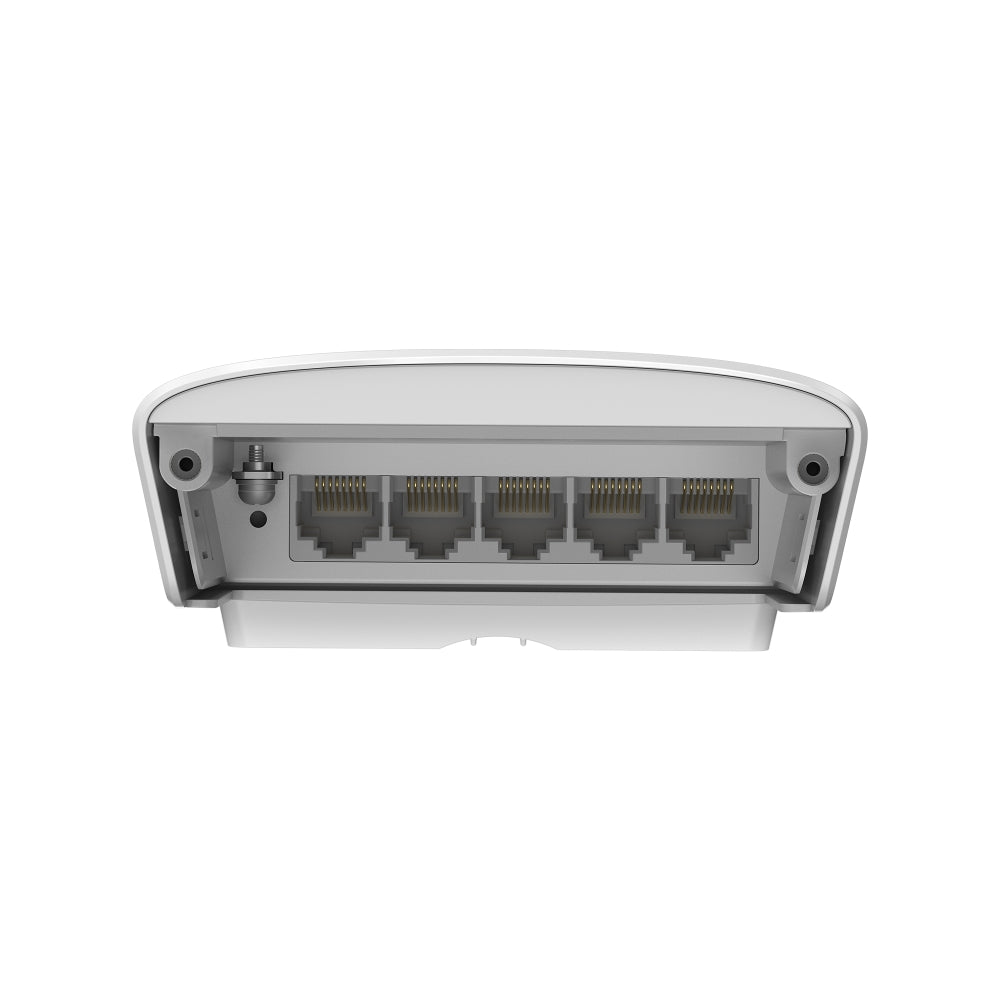

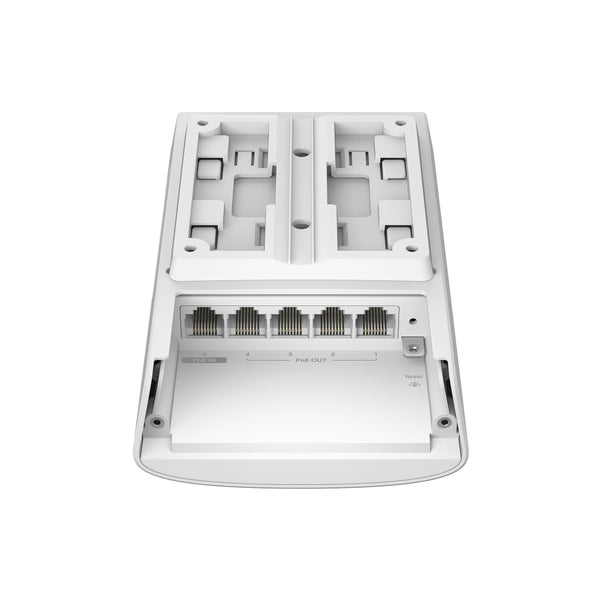

| Interface | 1× 10/100/1000 Mbps RJ45 PoE In port (802.3af/at/bt), 4× 10/100/1000 Mbps RJ45 PoE Out ports (802.3af/at) |
| PoE output budget | 64 W (802.3bt Type 4, 90 W) / 44 W (802.3bt Type 3, 60 W) / 19 W (802.3at) / 6 W (802.3af)*; Fast PoE, Perpetual PoE |
| Power supply | Powered by 802.3af/at/bt PoE source |
| Switching capacity | 10 Gbps |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 8K |
| Packet buffer | 4.1 Mbit |
| Jumbo frame | 9 KB |
| L2 / L2+ | Static routing (32 IPv4/IPv6 routes), DHCP server / relay, 802.3ad LACP, STP/RSTP/MSTP, IGMP / MLD Snooping, LLDP |
| VLAN | 802.1Q, up to 4K VLAN groups, MAC VLAN, Protocol VLAN, Voice VLAN |
| Security | ACL (up to 230 entries), 802.1X, IP-MAC binding, DHCP snooping, port security, DoS defend, HTTPS / SSH |
| Management | Web GUI, CLI, SNMP; Omada Hardware / Software / Cloud-Based Controller, Omada app, cloud access, ZTP (cloud controller) |
| Protection | IP66, UV-resistant, ±6 kV surge protection |
| Max. power consumption | 71.05 W (powered by 802.3bt Type 4, 90 W) |

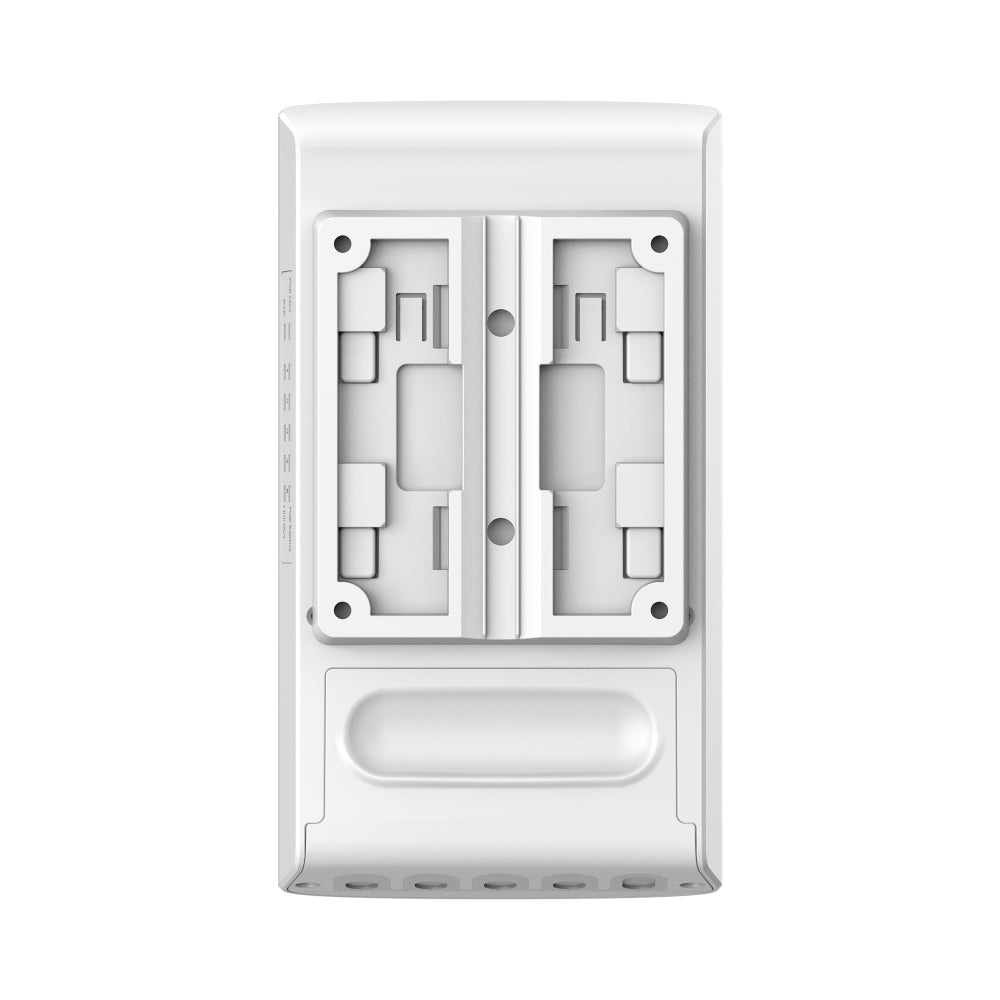

| Mounting | Wall / pole mounting (brackets and strap included) |
| Dimensions (W×D×H) | 103.0 × 41.6 × 186.2 mm |
| Operating temperature | -40 to 60 °C |
| Certification | CE, FCC, IP66 |
* PoE budget figures are based on TP-Link laboratory testing; the actual PoE budget is not guaranteed and varies with the connected devices and the environment.
** The actual transmission distance may vary with the power drawn by the devices and the cable quality and type.
