TP-Link® Omada PoE Splitter, IEEE 802.3af, Gigabit | POE10R
TP-Link® Omada PoE Splitter, IEEE 802.3af, Gigabit | POE10R
Couldn't load pickup availability
TP-Link Omada PoE Splitter, IEEE 802.3af, Gigabit | POE10R

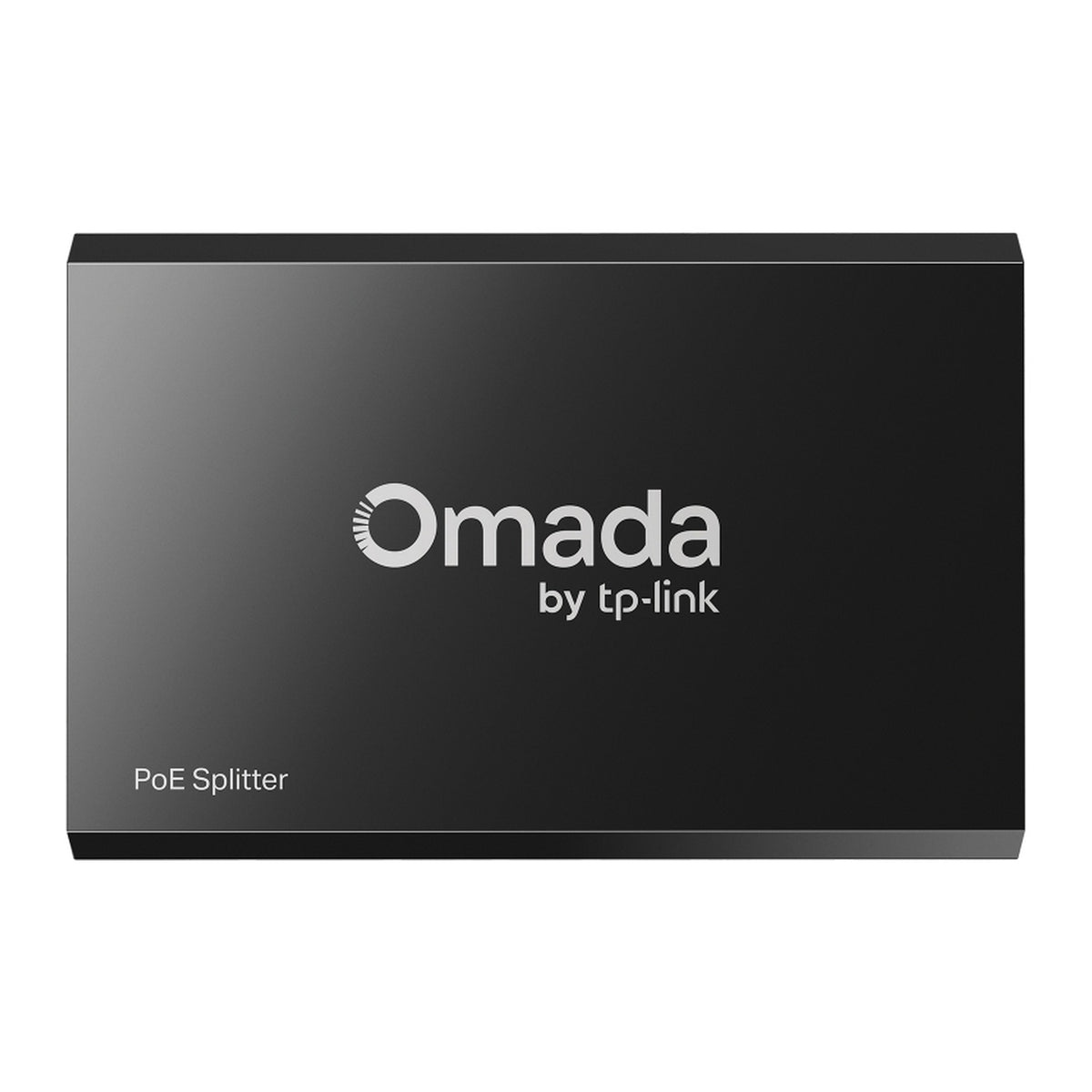

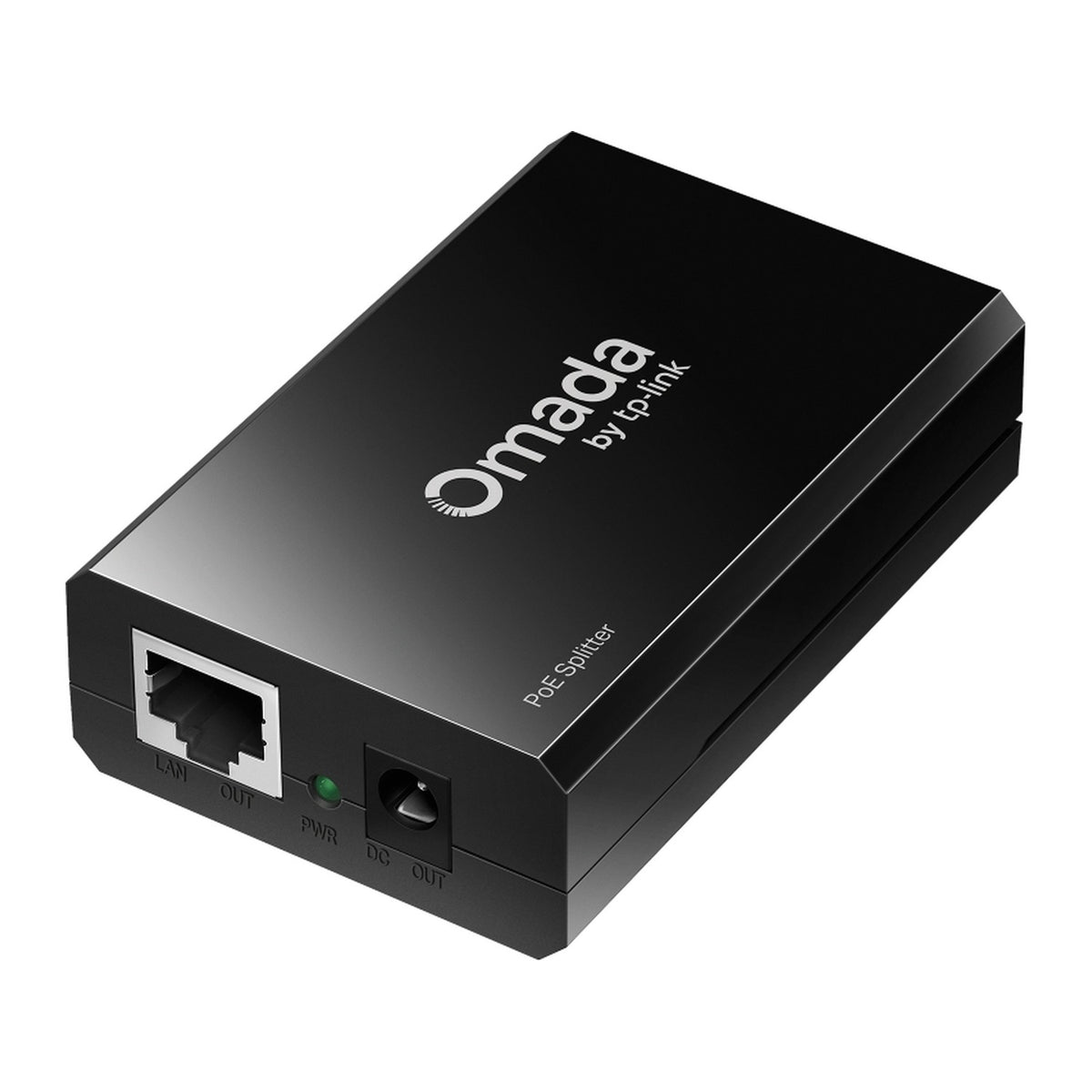

The TP-Link Omada POE10R (also listed as TL-POE10R) is an IEEE 802.3af PoE splitter. It takes power and data from a PoE switch or injector over one cable and gives you a separate Gigabit data port plus a 12, 9 or 5 VDC power output for a device that does not support PoE.
IEEE 802.3af compliant: It works with any IEEE 802.3af PoE source, such as a PoE switch (for example TL-SF1008P) or a PoE injector (for example POE150S).
Selectable 12 / 9 / 5 VDC output: Choose the DC voltage your device needs: 12 VDC 1 A, 9 VDC 1 A or 5 VDC 2 A.
Gigabit data: Both RJ45 ports support 10/100/1000 Mbps, so data passes through at full Gigabit speed.
Who it's for / Works with: Powering a non-PoE device, such as an access point, IP camera or IP phone, from an 802.3af PoE switch or injector where there is no power outlet.
Good to know: The POE10R needs an IEEE 802.3af PoE source at the other end; it does not create power by itself.
Technical Specifications
| Specification | TP-Link POE10R |
|---|---|
| Standards | IEEE 802.3i, 802.3u, 802.3ab, 802.3af |
| Ports | 1 × 10/100/1000 Mbps RJ45 Power + Data In; 1 × 10/100/1000 Mbps RJ45 LAN Out; 1 × DC power output |
| DC output | 12 VDC 1 A, 9 VDC 1 A, 5 VDC 2 A |
| Distance | Delivers power up to 100 m |
| LED | PWR |
| Dimensions (W × D × H) | 80.8 × 54 × 24 mm |
| Certification | FCC, CE |
📄 Datasheet: Download the official TP-Link POE10R datasheet (PDF)
